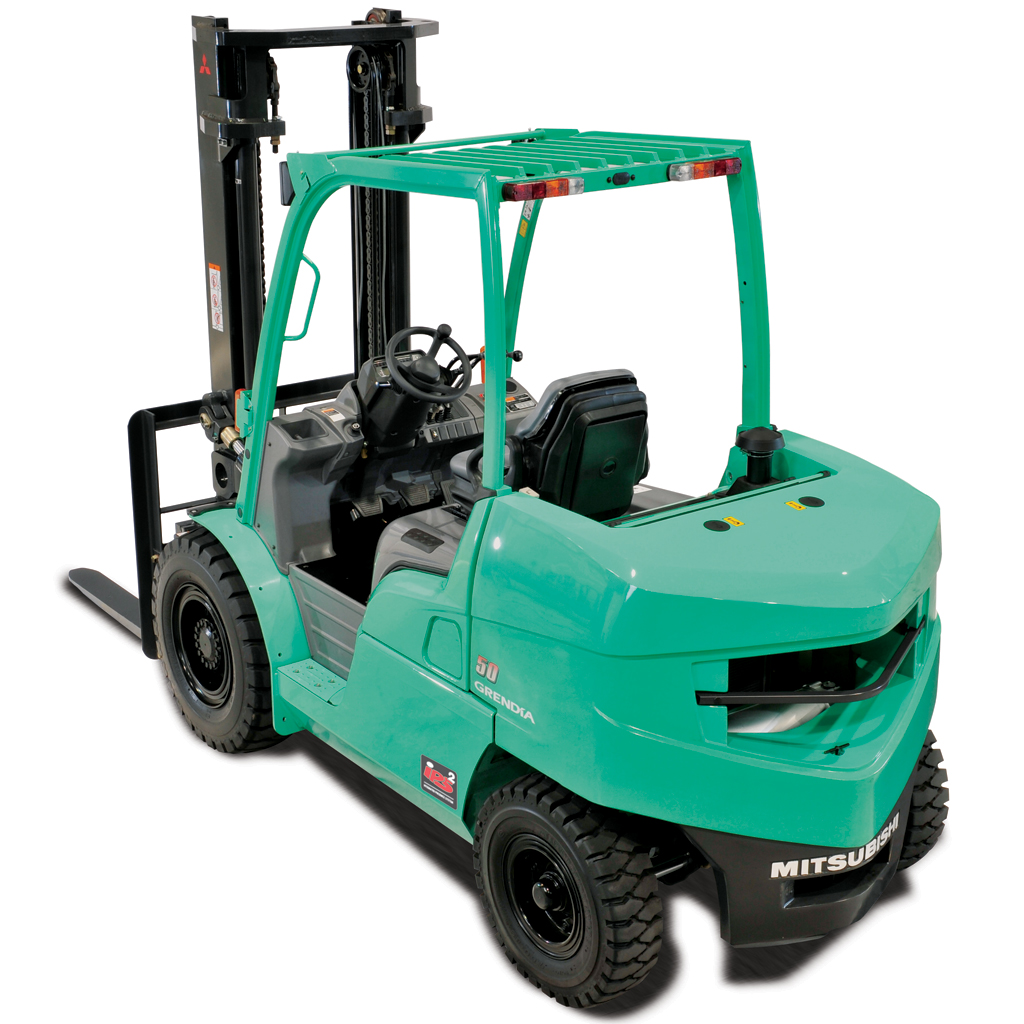

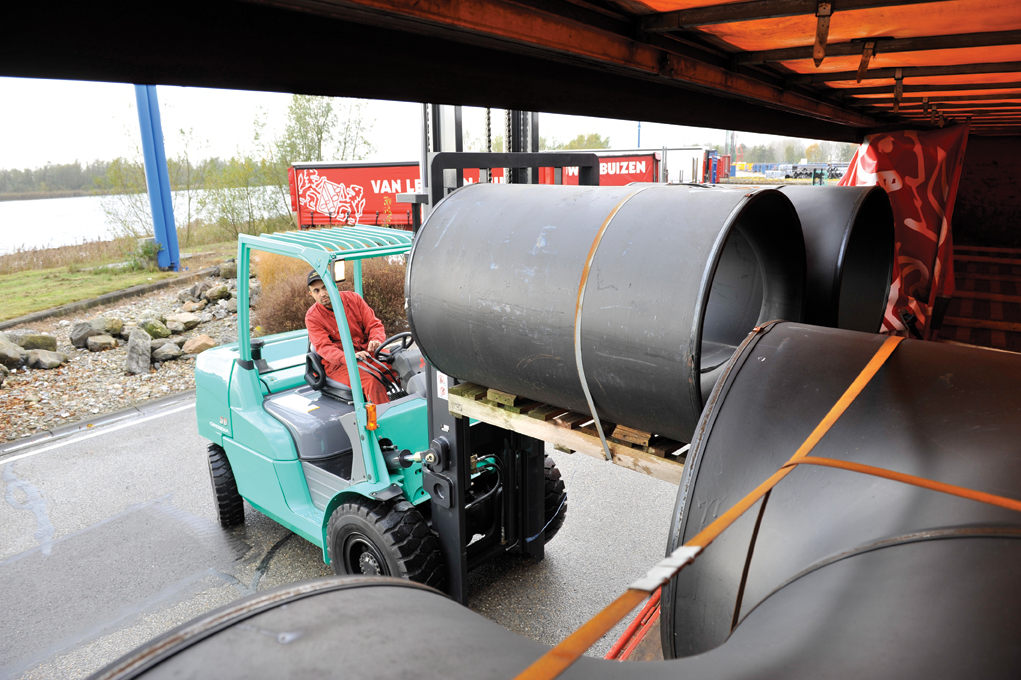

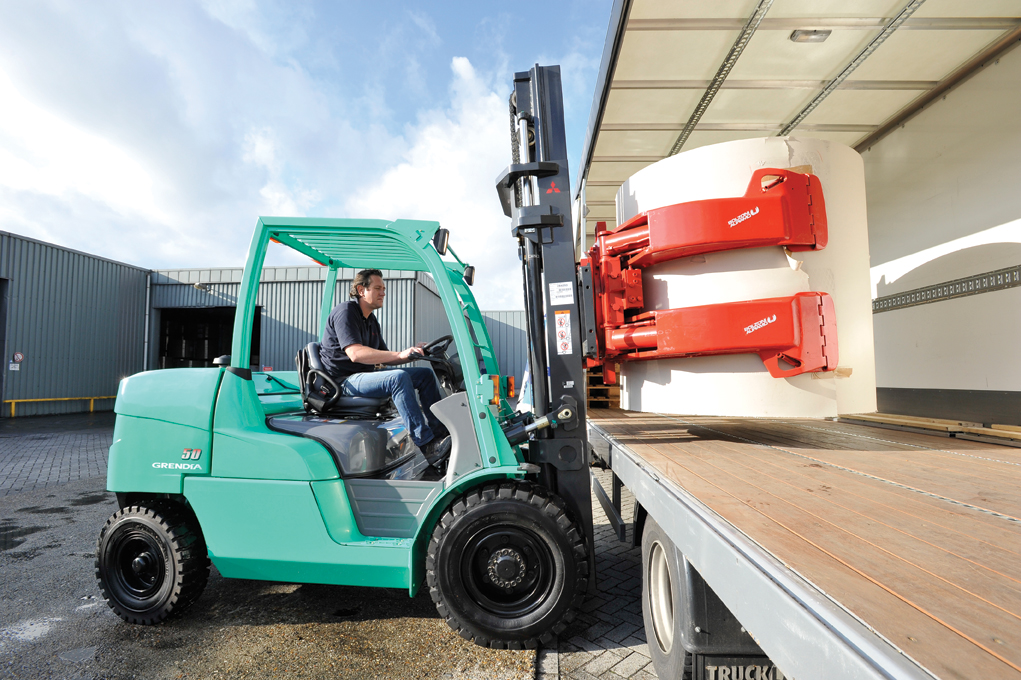

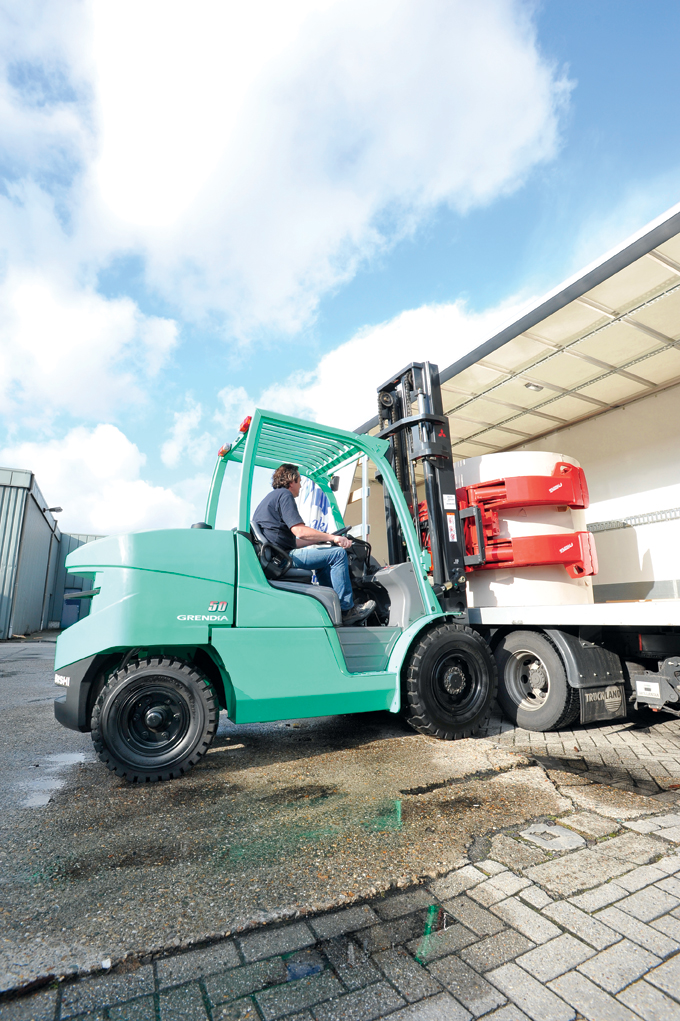

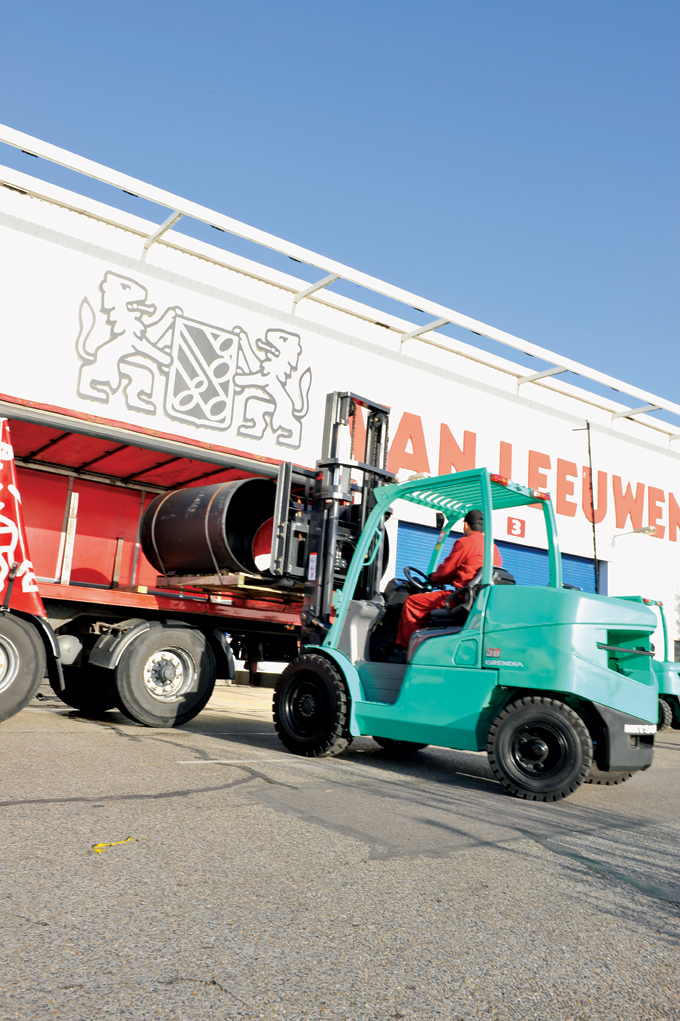

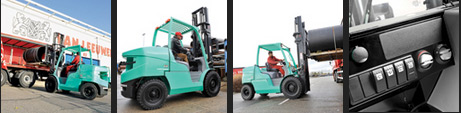

FD40-55N Series

Diesel : Pneumatic Tyre

« Back to Mitsubishi Main Page
































Designed to perform... built to last

Diesel Counterbalance / 4 Wheel Pneumatic Tyres / 4 - 5.5  tonnes

The effectiveness and legendary reliability of Mitsubishi 4 and 5 tonne IC engine forklift trucks has been proved over many years in the most demanding of applications. Generations of forklift truck owners have grown to love and depend upon these tough and highly capable machines. GRENDIA EX builds on those exceptional qualities. Env­iron­ment­ally friendly, and with the quality, reliability and investment value you would associate with diamonds, its name - meaning 'Green Diamond' - is truly deserved.

Low noise and vibration, a comfortable operating environment and the latest ErgoCentric developments in steering, hydraulic and other controls will all be welcomed by operators. Meanwhile, the IPS2 Integrated Presence System and advanced brake systems will help ensure that they stay safe. And as always, every system and component has been designed and chosen to minimise downtime and maintenance costs.

Model
Load Capacity
FD40N 4000 kg
FD45N 4500 kg
FD50CN 5000 kg
FD50N 5000 kg
FD55N 5500 kg

Key Features

  • Stylish, purposeful design reflects this machine’s power to work productively, non-stop, whatever the conditions.
  • Industrially proved diesel engine is ultra-reliable and durable, as well as smooth and economical, and easily complies with emission control regulations.
  • Fully floating powertrain with two-speed forward and one-speed reverse transmission maximises gradeability and travel speed, minimises noise and vibration, and uses maintenance-free gears instead of belts to lower running costs.
  • Market-leading ErgoCentric design results in easy on-off access, a unique, adjustable steering column with position memory, user-friendly controls, a practical layout and great all-round visibility - for maximum precision and productivity.
  • Strong, high-visibility mast allows handling of heavy loads in tough environments with total confidence.
  • Wide range of high-quality masts and attachments delivers precise compatibility and an ideal configuration for each application.
  • RapidAccess features give unequalled ease of entry to all areas for checks and maintenance.
  • Integrated Presence System 2 (IPS2) pioneered by Mitsubishi prevents all movement of the truck and its mast if the operator is not seated.
  • Optional fingertip hydraulic controls with integrated, fully adjustable, high-comfort armrest (an award-winning concept) allows effortless precision.
  • Hydraulic control levers are easy to reach and easy to use.



Integrated Presence System

IPS/IPS2
Inbuilt safety

Two versions of our pioneering Integrated Presence Systems (IPS and IPS2) feature in the current model range. Both prevent all truck and mast movement if the operator is not seated, as well as giving essential warnings.

IPS2 adds an electronic parking brake - applied automatically if the seat is empty and manually via a button on the dashboard.

Functions in detail:

  • lockouts prevent accidental lifting, lowering, tilting and travel
  • automatic warnings remind driver to fasten seatbelt and apply parking brake
  • electronic parking brake (IPS2 only) is automatically applied when driver leaves seat

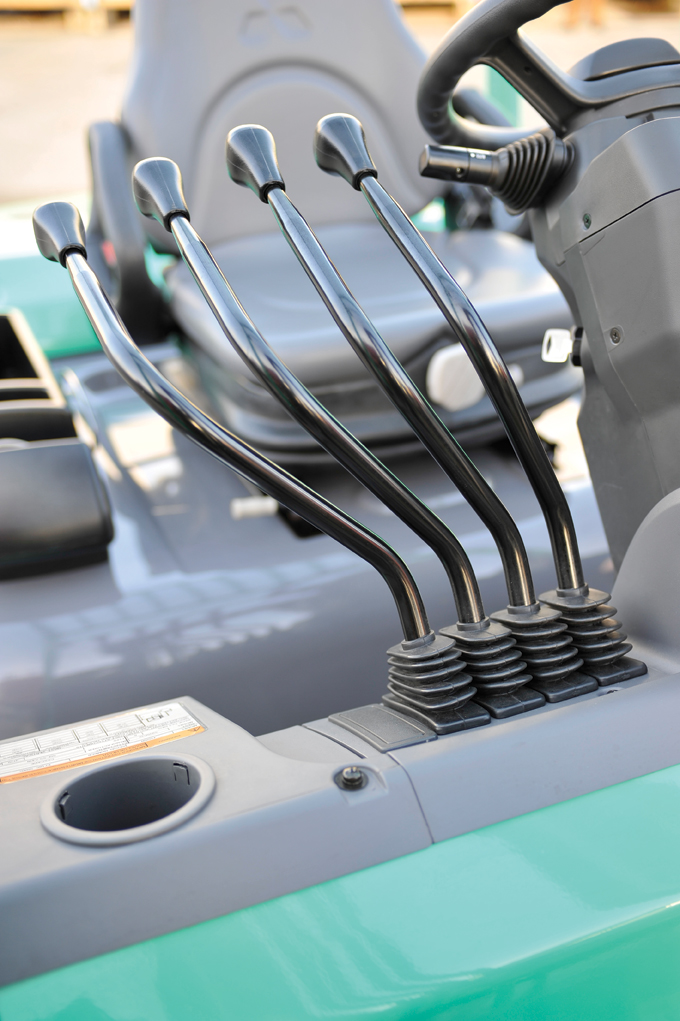

Ergonomic hydraulic levers

User-friendly lever design
Productivity within easy reach

Designers at Mitsubishi understand that high productivity depends on the combination of high-quality engineering and a comfortable, confident operator who is totally in control. Our user-focused truck design puts the needs of the operator at the heart of all product development.

Although Mitsubishi has been a pioneer in the development of fingertip hydraulic control units, we recognise that many users still prefer levers instead. Our hydraulic control lever design, along with other carefully positioned controls, reduces driver fatigue and increases precision.

The latest version offers:

  • compact size for easy, short movements
  • ergonomic location to the right of operator for easy reach
  • easy-grip shape and responsive action giving a strong sense of touch, even if the operator is wearing thick gloves

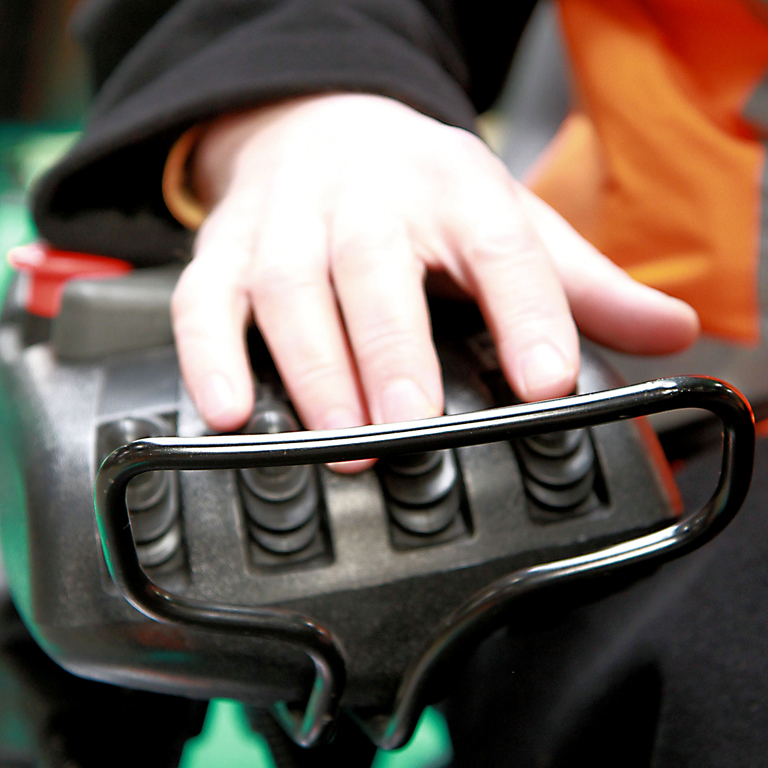

Fingertip hydraulic control

Integrated controls and armrest
The best just gets better

When Mitsubishi developed its first fingertip control units nearly two decades ago, its designers were able to draw on a strong heritage in fly-by-wire technology gained through its aerospace activities.

Today, after many generations of design improvements, the award-winning Mitsubishi fingertip control system is considered by many to be the best in the materials handling industry. Ideal for applications where precise control and the ultimate in driver ergonomics are needed, it can even be operated using heavy, protective gloves.

The latest version offers:

  • fully adjustable armrestensuring optimum position and comfort for operator’s wrist
  • up to five fingertip levers for up to four hydraulic functions
  • additional button commands if required for other functions
  • programmable sensitivity to meet the needs of different applications and operators
  • high-visibility emergency stop button for added safety

Brakes

  • Powerful drum brake system gives excellent control with little effort and is easy to maintain.
  • Elec­tron­ic­ally controlled parking brake allows safe, effective imm­ob­ilis­at­ion of the truck with minimum effort - and without restricting knee and leg movement.

Drive

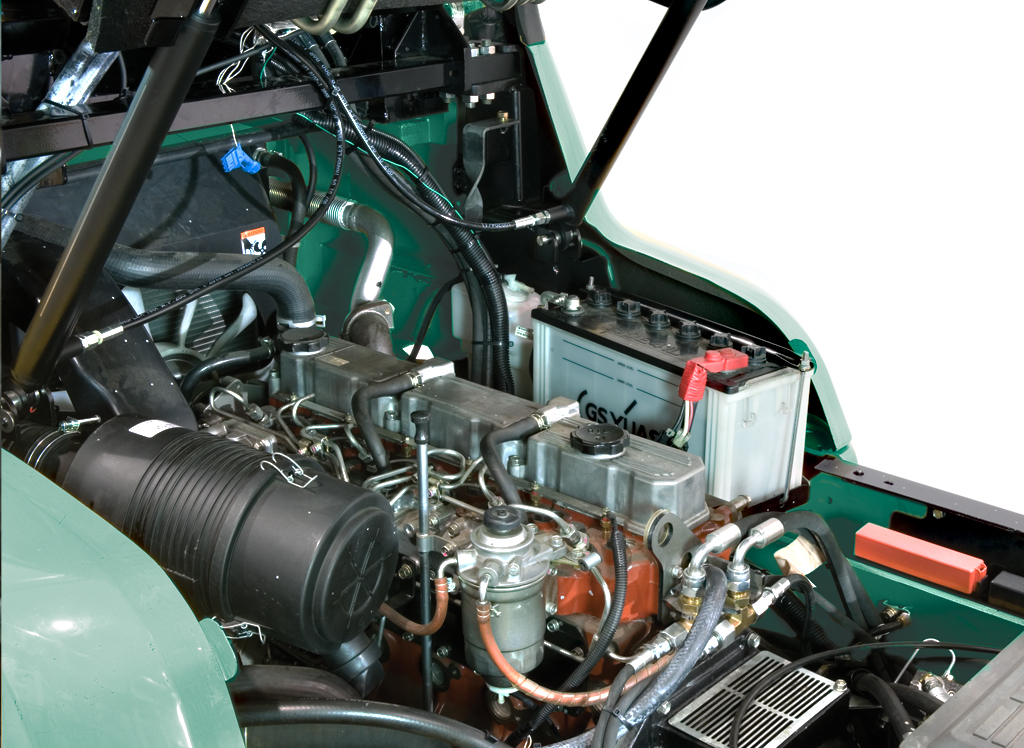

  • Industrially proved diesel engine is ultra-reliable and durable, as well as smooth and economical, and easily complies with emission control regulations.
  • Fully floating powertrain with two-speed forward and one-speed reverse transmission maximises gradeability and travel speed, minimises noise and vibration, and uses maintenance-free gears instead of belts to lower running costs.
  • Adjustable transmission shift timing increases versatility, for optimum performance in a wide variety of applications.
  • Large diameter drive axle shafts are extremely durable and require little maintenance.
  • Low-noise air intake connects directly to intake filter for easy flow and quiet performance.

Electrical and control systems

  • Integrated Presence System 2 (IPS2) pioneered by Mitsubishi prevents all movement of the truck and its mast if the operator is not seated.
  • Operator identification system can be activated - if owner wishes - to prevent unauthorised use of the truck.
  • Onboard diagnostics and detailed fault diagnosis via laptop connection alerts operators and service engineers to problems, speeds up servicing and prevents damage.

Frame and body

  • Stylish, purposeful design reflects this machine’s power to work productively, non-stop, whatever the conditions.
  • Robust construction provides high stability, rigidity and protection, with no exposed wires or hoses.

Hydraulics

  • Powerful hydraulic system is specifically designed to minimise noise in the operator's environment.

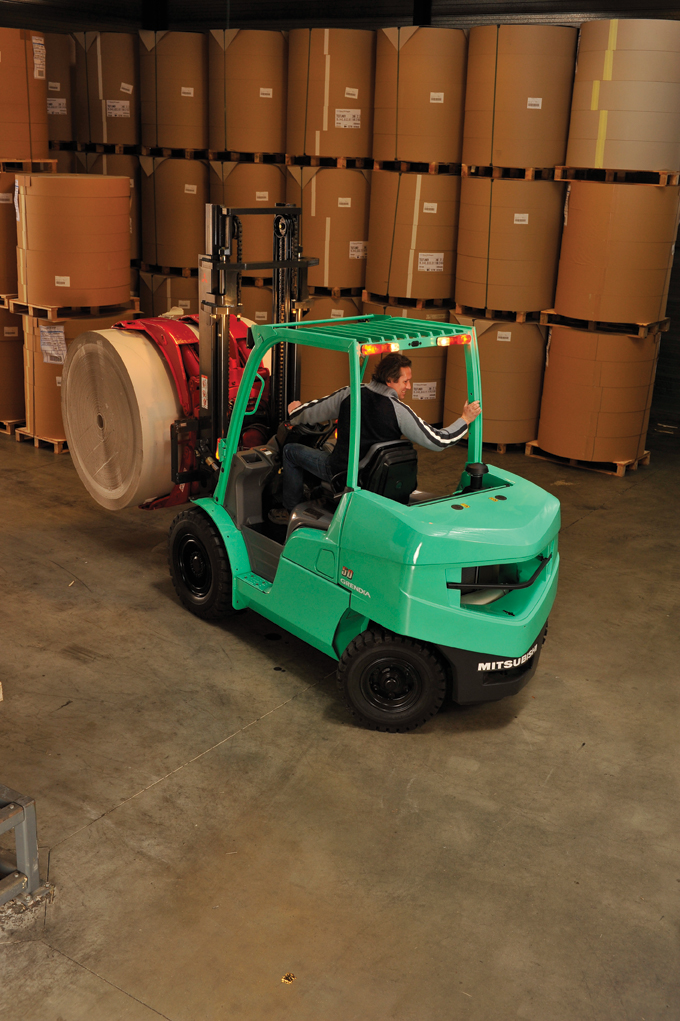

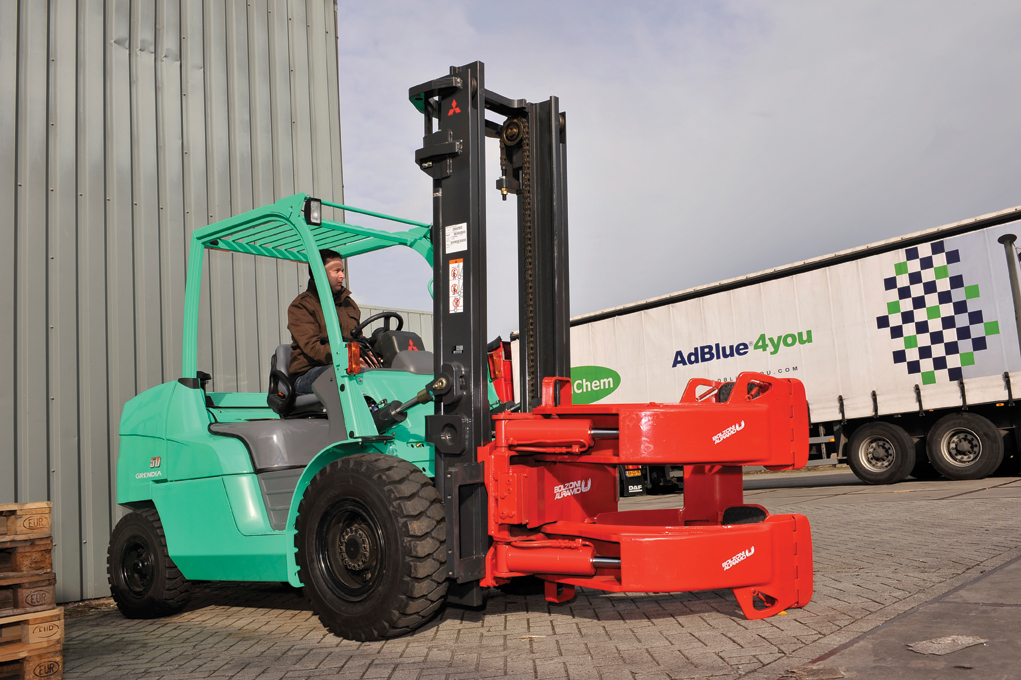

Mast and fork assembly

  • Strong, high-visibility mast allows handling of heavy loads in tough environments with total confidence.
  • Wide range of high-quality masts and attachments delivers precise compatibility and an ideal configuration for each application.

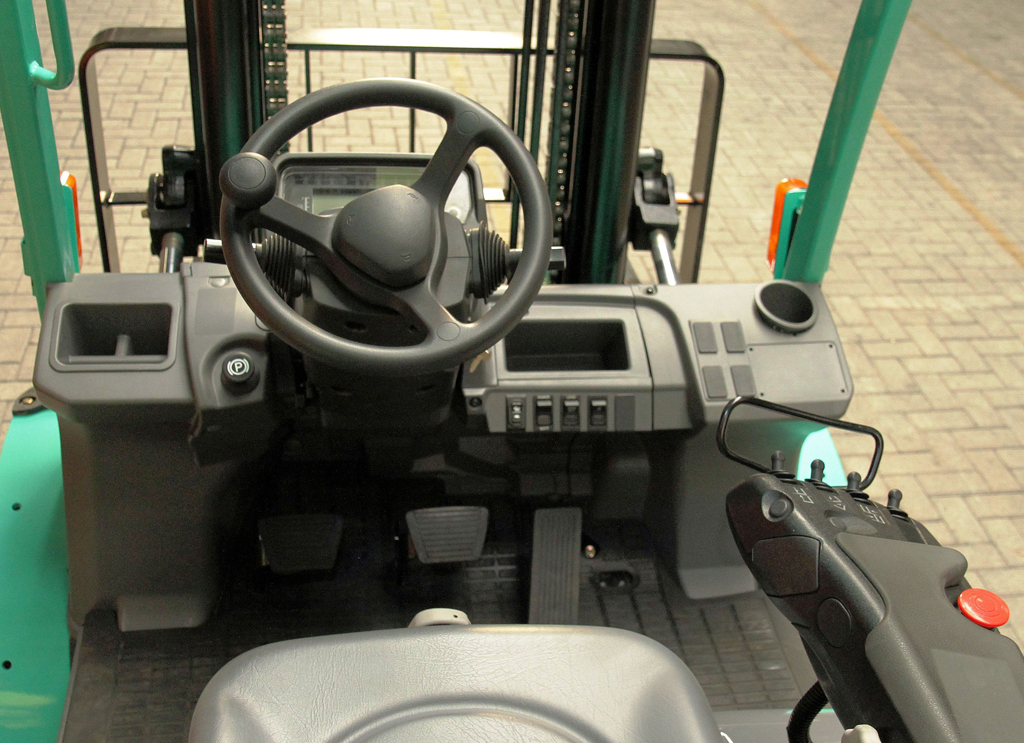

Operator compartment and controls

  • Market-leading ErgoCentric design results in easy on-off access, a unique, adjustable steering column with position memory, user-friendly controls, a practical layout and great all-round visibility - for maximum precision and productivity.
  • Full-suspension seat with hip support keeps driver comfortable through the longest of shifts.
  • Hydraulic control levers are easy to reach and easy to use.
  • Optional fingertip hydraulic controls with integrated, fully adjustable, high-comfort armrest (an award-winning concept) allows effortless precision.
  • Automotive-style pedals with optimum pedal angle are easy to use and give good control without leg strain.
  • Low noise level at operator’s ear and low vibration from powertrain increases comfort and reduces fatigue.
  • Clear and comprehensive instrument panel with LCD display keeps operator and manager fully informed of, for example, speed, time, engine hours, service intervals and faults - to optimise productivity, truck life and safety.

Steering system

  • Fully hydrostatic steering is responsive, precise and effortless for the operator and requires only minimal maintenance.

Other features

  • Long service interval and long life of components reduces downtime and associated costs.
  • RapidAccess features give unequalled ease of entry to all areas for checks and maintenance.

Options include

  • Oil-cooled wet disc brakes and FlexControl intelligent truck protection package

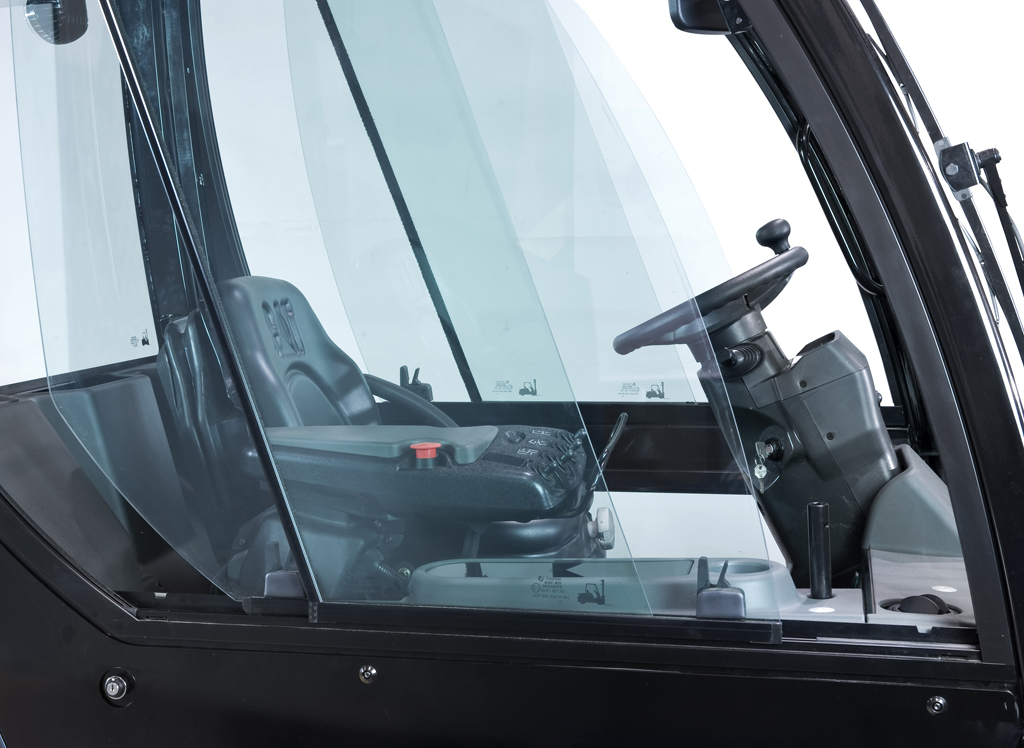

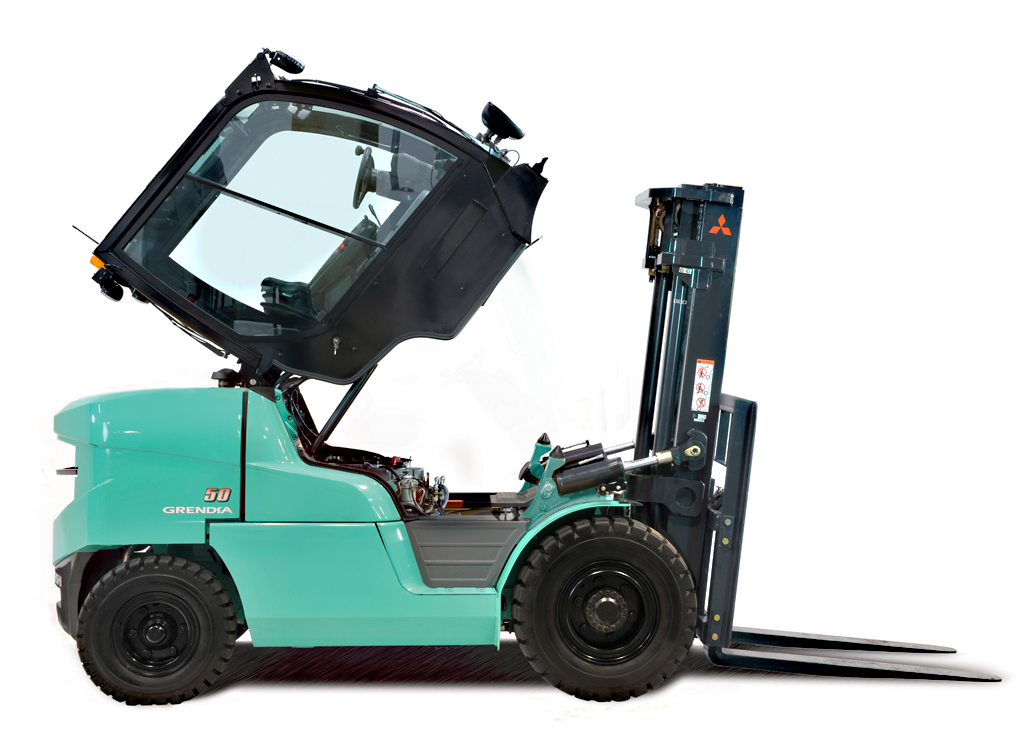

  • VersaCab range of panel cabins
  • Fingertip hydraulic controls
  • Rear grip with integrated horn button
  • Load weight indicator
  • Overload indicator
  • Speed limiter

Key Specifications

Cha­rac­ter­ist­ics
Manufacturer’s model designation
FD40N
FD45N
FD50CN
FD50N
FD55N
Power source: (battery, diesel, LP gas, petrol)
Diesel
Diesel
Diesel
Diesel
Diesel
Operator type: pedestrian, (operator)-standing, -seated
Seated
Seated
Seated
Seated
Seated
Load capacity Q (kg)
4000
4500
5000
5000
5500
Load centre distance c (mm)
500
500
500
600
600
Load distance, axle to fork face (forks lowered) x (mm)
577
577
582
602
602
Wheelbase y (mm)
1850
2000
2000
2150
2150
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height) kg
5920
6330
6850
7300
7640
Axle loading with maximum load, front/rear (simplex mast, lowest lift height) kg
8960/960
9710/1130
10600/1250
11020/1280
11740/1400
Axle loading without load, front/rear (simplex mast, lowest lift height) kg
2630/3290
2780/3550
2900/3950
3220/4080
3170/4470
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear
L/L
L/L
L/L
L/L
L/L
Tyre dimensions, front
8.25-15-14PR
300-15-18PR
300-15-18PR
300-15-18PR
300-15-18PR
Tyre dimensions, rear
7.00-12-14PR
7.00-12-14PR
7.00-12-14PR
7.00-12-14PR
7.00-12-14PR
Number of wheels, front/rear (x=driven)
2x/2
2x/2
2x/2
2x/2
2x/2
Track width (centre of tyres), front b10 (mm)
1175
1175
1175
1175
1175
Track width (centre of tyres), rear b11 (mm)
1180
1180
1180
1180
1180
Dimensions
Mast tilt, forwards/backwards a/b °
6/10
6/10
6/10
6/10
6/10
Tow coupling height h10 (mm)
395
395
395
395
395
Overall length l1 (mm)
4220
4350
4390
4530
4580
Height with mast lowered (see tables) h1 (mm)
2320
2320
2400
2400
2400
Length to fork face (includes fork thickness) l2 (mm)
3000
3130
3170
3310
3360
Overall width b1/b2 (mm)
1415/1965
1460/1965
1460/1965
1460/1965
1460/1965
Fork dimensions (thickness, width, length) s,e,l (mm)
50/150/1220
50/150/1220
50/150/1220
60/150/1220
60/150/1220
Fork carriage to DIN 15 173 A/B/no
3A
3A
3A
4A
4A
Fork carriage width b3 (mm)
1190
1190
1190
1190
1190
Free lift (see tables) h2 (mm)
150
150
150
160
160
Ground clearance under mast, with load m1 (mm)
150
150
150
150
150
Ground clearance at centre of wheelbase, with load (forks lowered) m2 (mm)
227
227
227
227
227
Working aisle width with 1000 x1200 mm pallets, crosswise Ast (mm)
4357
4507
4542
4692
4742
Working aisle width with 800 x1200 mm pallets, crosswise Ast (mm)
4157
4307
4342
4492
4542
Turning circle radius Wa (mm)
2580
2730
2760
2890
2940
Minimum distance between centres of rotation b13 (mm)
836
903
903
971
971
Lift height (see tables) h3 (mm)
3300
3300
3300
3300
3300
Overall height with mast raised h4 (mm)
3920
3920
4000
4000
4000
Height to top of overhead guard h6 (mm)
2296
2296
2296
2296
2296
Seat height h7 (mm)
1280
1280
1280
1280
1280
Performance
Travel speed, with/without load km/h
21.5/22.0
21.0/22.0
21.0/22.0
21.0/22.0
21.0/22.0
Service brakes (mechanical/hydraulic/electric/pneumatic)
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Lifting speed, with/without load m/s
0.55/0.61
0.55/0.61
0.47/0.53
0.47/0.53
0.47/0.53
Lowering speed, with/without load m/s
0.5/0.5
0.5/0.5
0.5/0.5
0.5/0.5
0.5/0.5
Rated drawbar pull, with/without load N
25000/17400
25000/18700
24700/19400
24500/21800
24200/21300
Gradeability, with/without load %
26.9/26.4
24.4/26.7
22.0/25.7
20.8/26.8
19.3/25.0
Acceleration time (10 metres) with/without load s
4.20/3.70
4.52/3.87
4.52/3.87
4.52/3.87
4.52/3.87
IC Engine
Manufacturer / Type
Mitsubishi / S6S
Mitsubishi / S6S
Mitsubishi / S6S
Mitsubishi / S6S
Mitsubishi / S6S
Rated output to ISO 1585 kW
57.4
57.4
57.4
57.4
57.4
Rated speed to DIN 70 020 rpm
2300
2300
2300
2300
2300
Number of cylinders / cubic capacity /cm3
6 / 4996
6 / 4996
6 / 4996
6 / 4996
6 / 4996
Fuel consumption according to VDI 60 cycle l/h / kg/h
*
*
*
*
*
Miscellaneous
Type of drive control
Powershift 2/1
Powershift 2/1
Powershift 2/1
Powershift 2/1
Powershift 2/1
Maximum operating pressure for attachments bar
191
191
191
191
191
Oil flow for attachments l/min
*
*
*
*
*
Noise level, value at operator’s ear (EN 12053) dB(A)
*
*
*
*
*
Towing coupling design / DIN type, ref.
Pin
Pin
Pin
Pin
Pin
