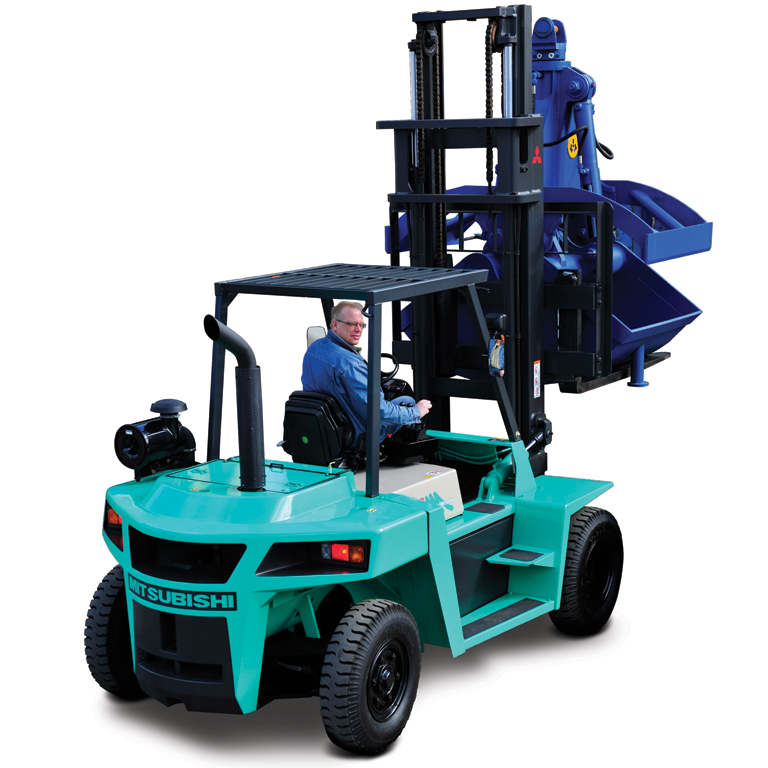

Trucks that deliver... in the long haul

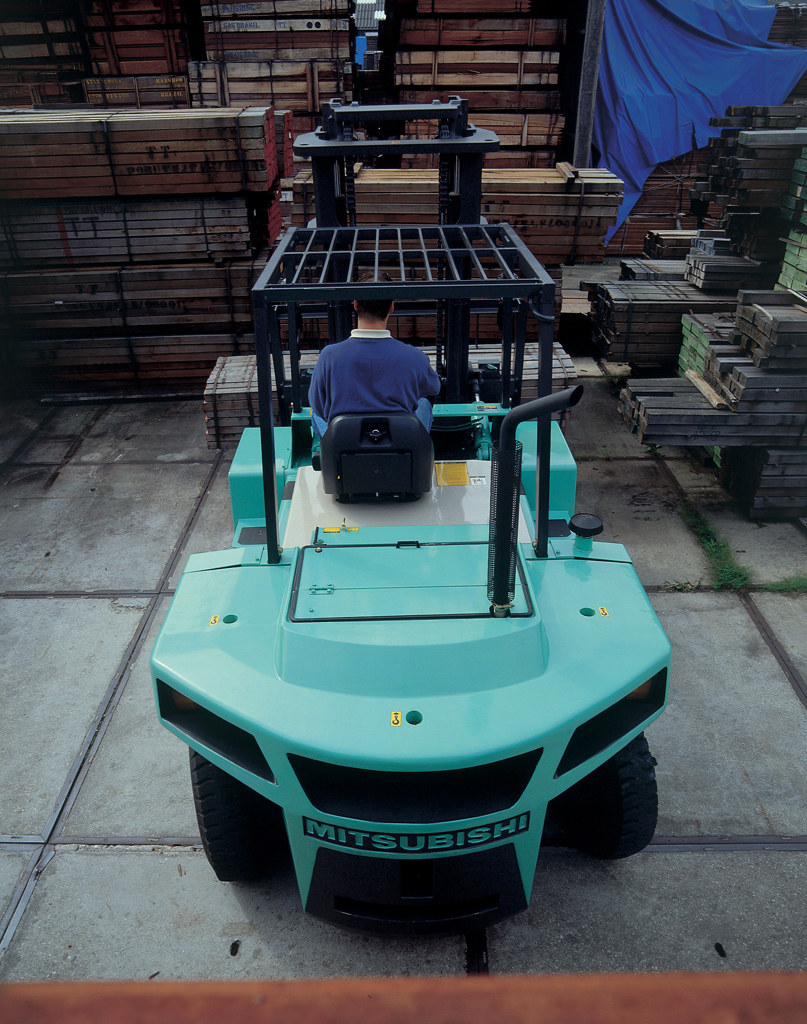

Diesel Counterbalance / 6 Wheel Pneumatic Tyres / 6 - 7  tonnes

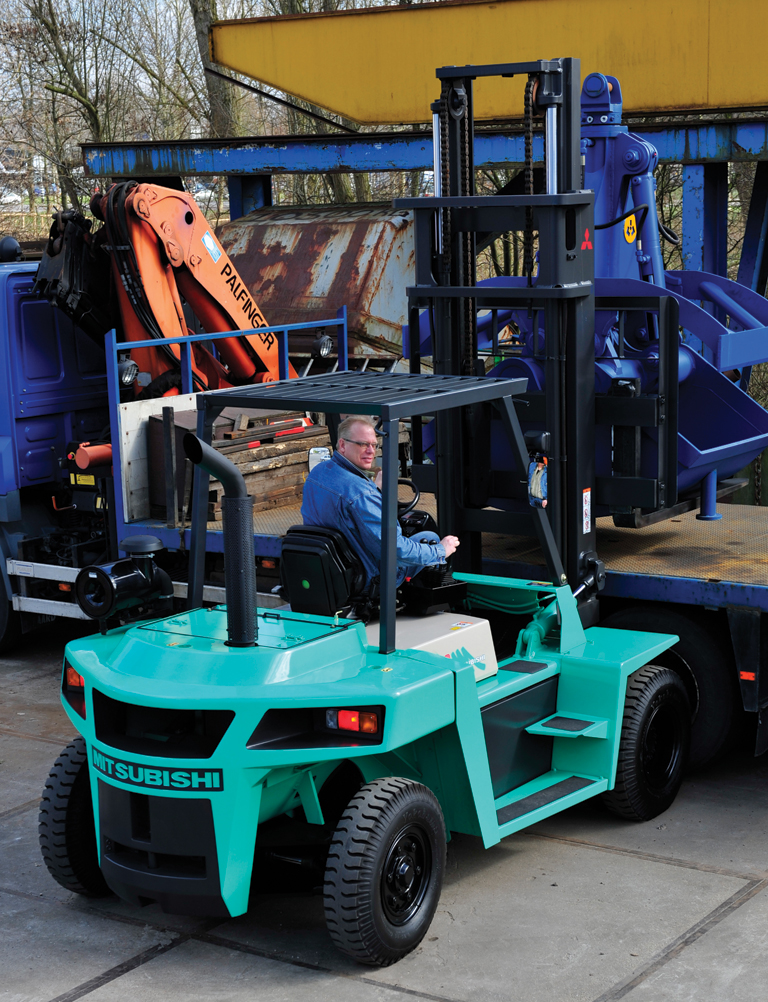

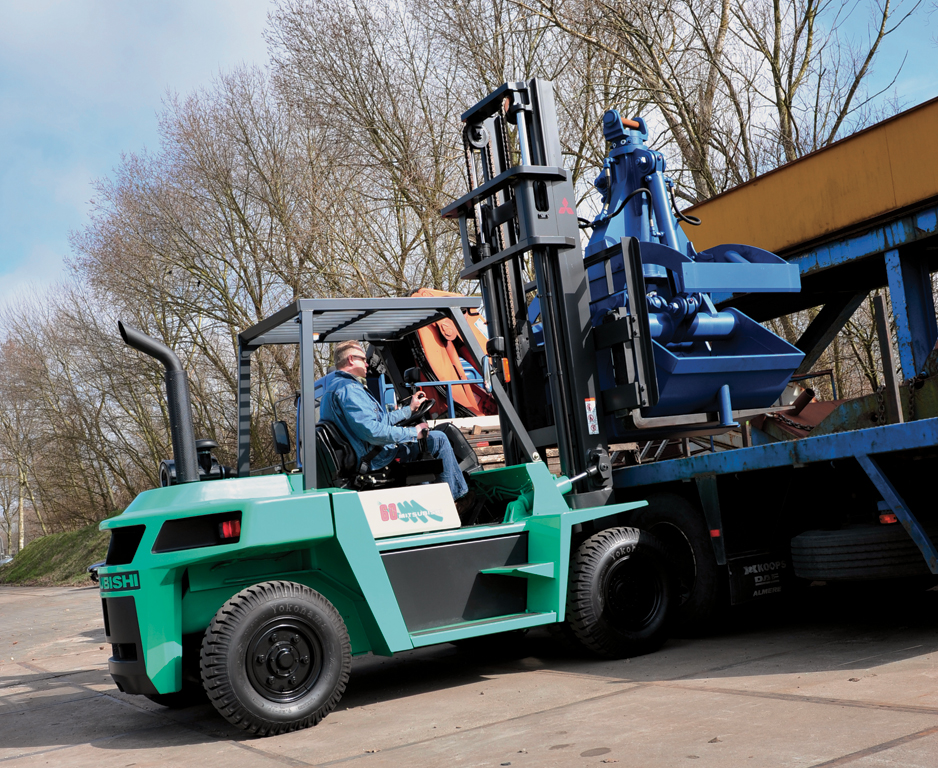

Famed for their sheer durability, Mitsubishi FD series trucks are built to uncom­prom­ising standards - for high performance... and lasting performance. Operating costs are minimised, thanks to quality components, low-maintenance design and easy service access.

The rugged chassis with planetary final drives and fully floating powertrain ensures smooth yet powerful operation. And because the entire powertrain is manufactured entirely in-house, balance and compatibility are assured. Meanwhile, continuous Mitsubishi research and development in the field of ergonomics has resulted in driver-friendly features that enable productivity to be maintained through the longest of shifts.

Model	Load Capacity
FD60	6000 kg
FD70	7000 kg

Key Features

• Ergonomic design ensures operator comfort for high productivity.

• High-efficiency, low-emission engines meet all environmental legislation.

• Robust mast design maximises visibility and safety whilst accommodating the stresses imposed by wide loads.

• Responsive hydrostatic steering provides precise handling with low driver effort.

• Auto-shift transmission enables automatic gear change for easier driving and less risk of damage to gearbox.

• Large operating compartment offers plenty of overhead clearance.

• Fully adjustable suspension seat accommodates drivers of any height and weight.

• Rugged chassis with planetary final drives and fully floating powertrain ensures smooth yet powerful operation.

• In-house manufacture of entire powertrain provides excellent compatibility of components, for high performance and low operating costs.

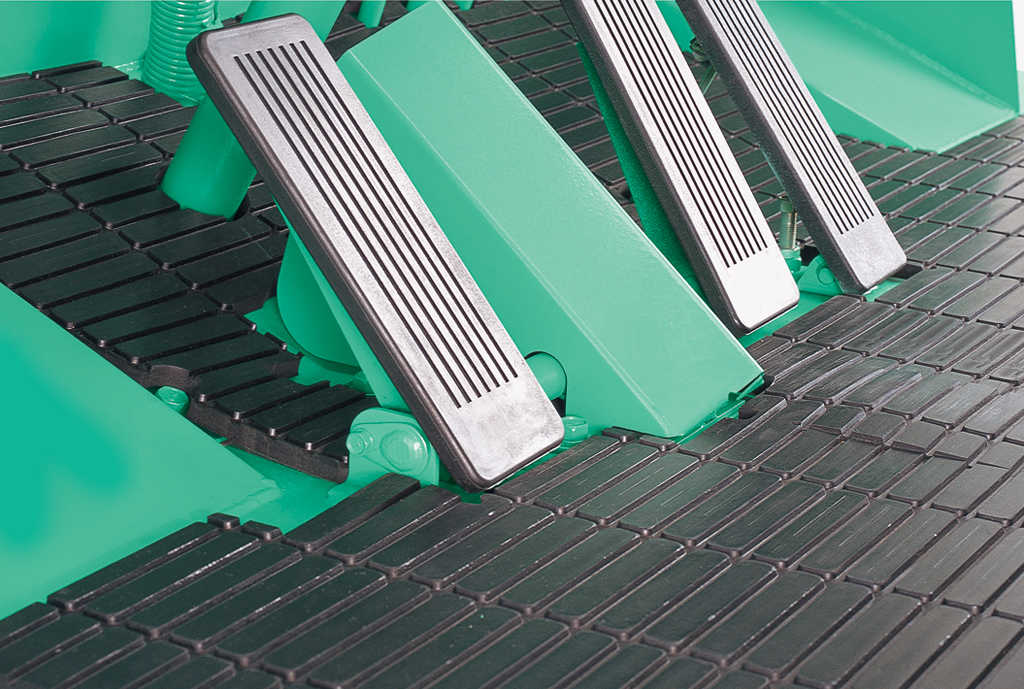

• Duo-servo auto-style brakes make braking smooth and safe.



Integrated Presence System

IPS/IPS2
Inbuilt safety

Two versions of our pioneering Integrated Presence Systems (IPS and IPS2) feature in the current model range. Both prevent all truck and mast movement if the operator is not seated, as well as giving essential warnings.

IPS2 adds an electronic parking brake - applied automatically if the seat is empty and manually via a button on the dashboard.

Functions in detail:

• lockouts prevent accidental lifting, lowering, tilting and travel

• automatic warnings remind driver to fasten seatbelt and apply parking brake

• electronic parking brake (IPS2 only) is automatically applied when driver leaves seat

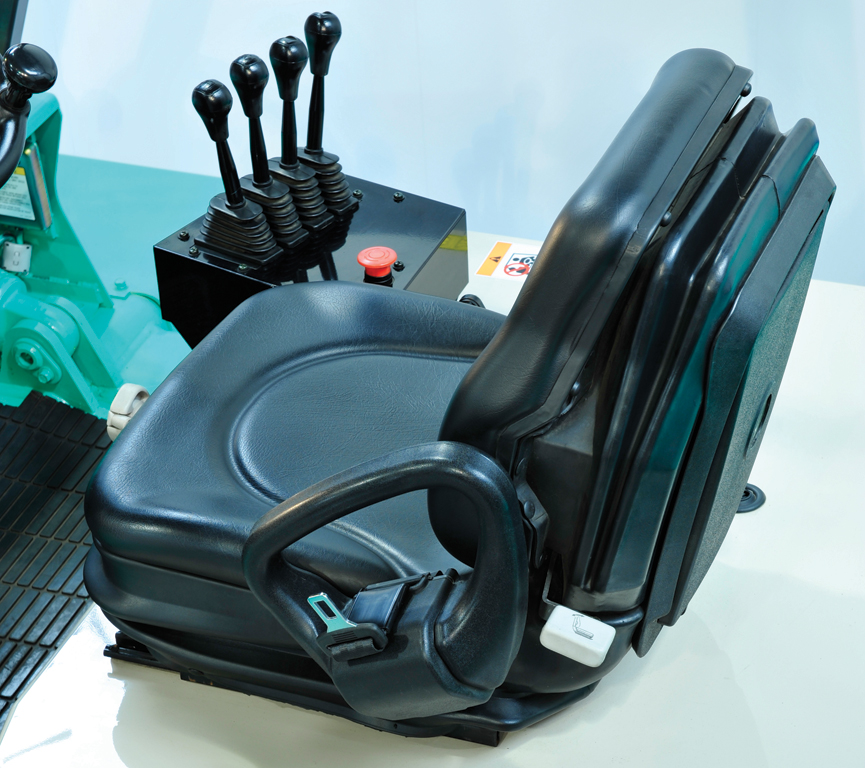

Ergonomic hydraulic levers

User-friendly lever design
Productivity within easy reach

Designers at Mitsubishi understand that high productivity depends on the combination of high-quality engineering and a comfortable, confident operator who is totally in control. Our user-focused truck design puts the needs of the operator at the heart of all product development.

Although Mitsubishi has been a pioneer in the development of fingertip hydraulic control units, we recognise that many users still prefer levers instead. Our hydraulic control lever design, along with other carefully positioned controls, reduces driver fatigue and increases precision.

The latest version offers:

• compact size for easy, short movements

• ergonomic location to the right of operator for easy reach

• easy-grip shape and responsive action giving a strong sense of touch, even if the operator is wearing thick gloves



Fingertip hydraulic control

Integrated controls and armrest
The best just gets better

When Mitsubishi developed its first fingertip control units nearly two decades ago, its designers were able to draw on a strong heritage in fly-by-wire technology gained through its aerospace activities.

Today, after many generations of design improvements, the award-winning Mitsubishi fingertip control system is considered by many to be the best in the materials handling industry. Ideal for applications where precise control and the ultimate in driver ergonomics are needed, it can even be operated using heavy, protective gloves.

The latest version offers:

• fully adjustable armrestensuring optimum position and comfort for operator’s wrist

• up to five fingertip levers for up to four hydraulic functions

• additional button commands if required for other functions

• programmable sensitivity to meet the needs of different applications and operators

• high-visibility emergency stop button for added safety

Brakes

• Duo-servo auto-style brakes make braking smooth and safe.

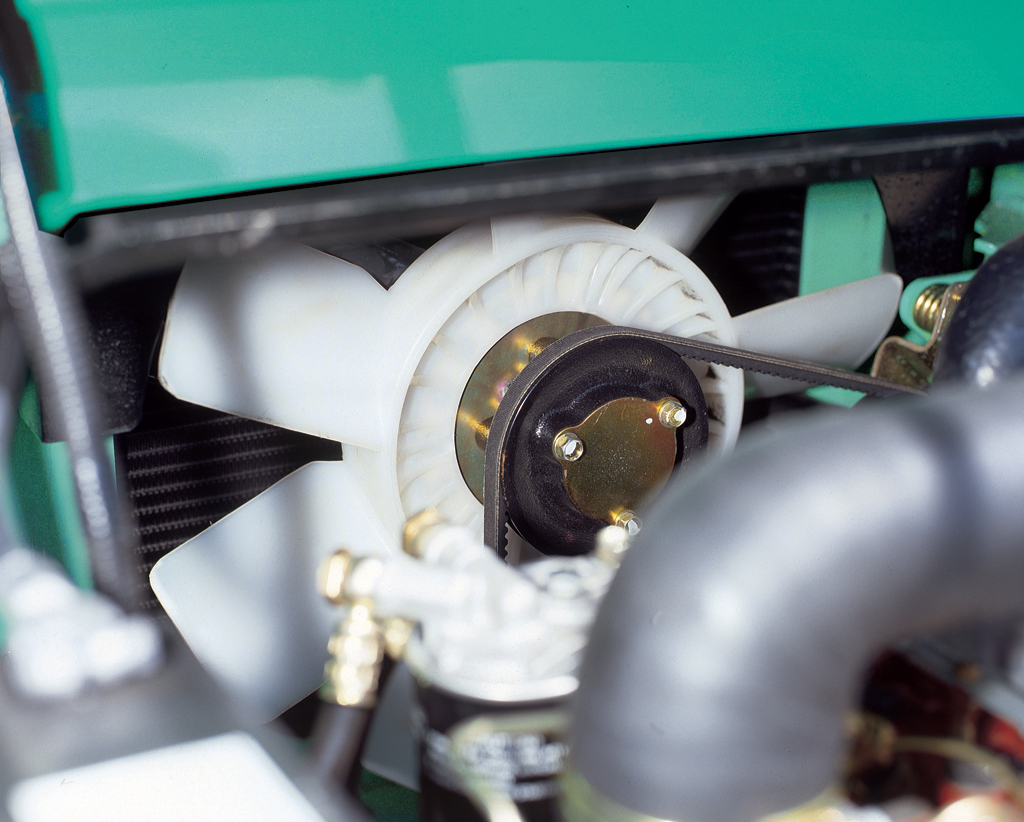

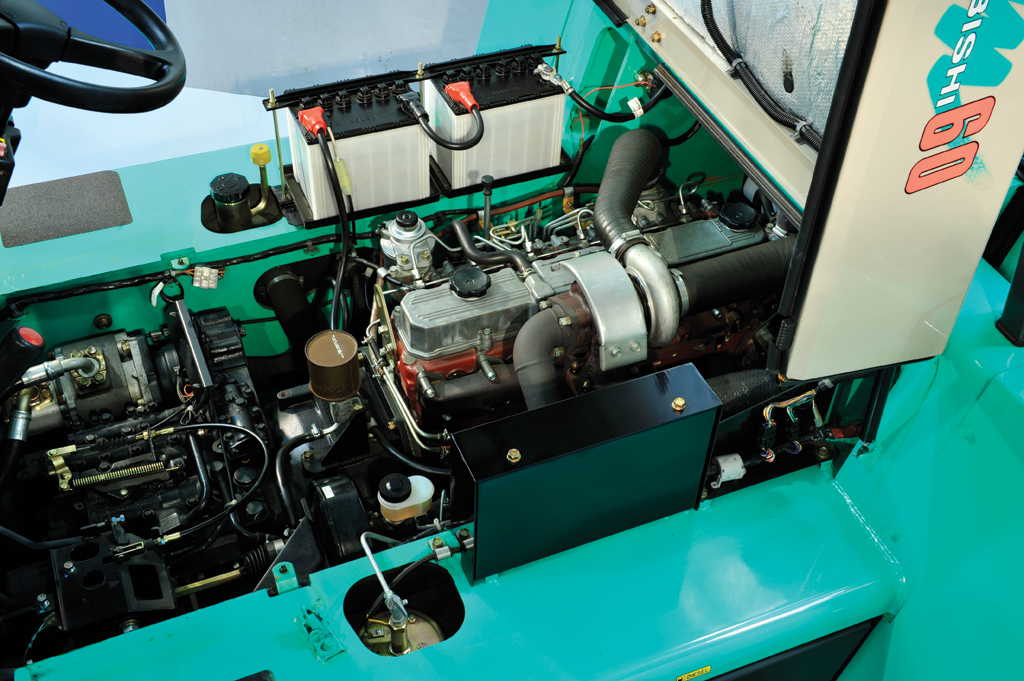

Drive

• High-efficiency, low-emission engines meet all environmental legislation.

• Auto-shift transmission enables automatic gear change for easier driving and less risk of damage to gearbox.

• Rugged chassis with planetary final drives and fully floating powertrain ensures smooth yet powerful operation.

• In-house manufacture of entire powertrain provides excellent compatibility of components, for high performance and low operating costs.

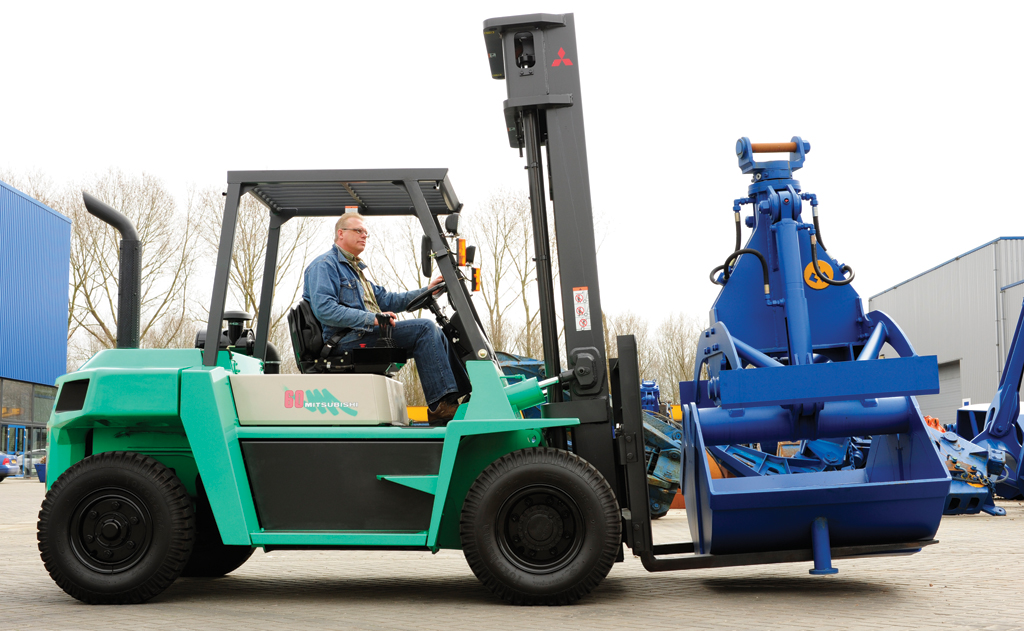

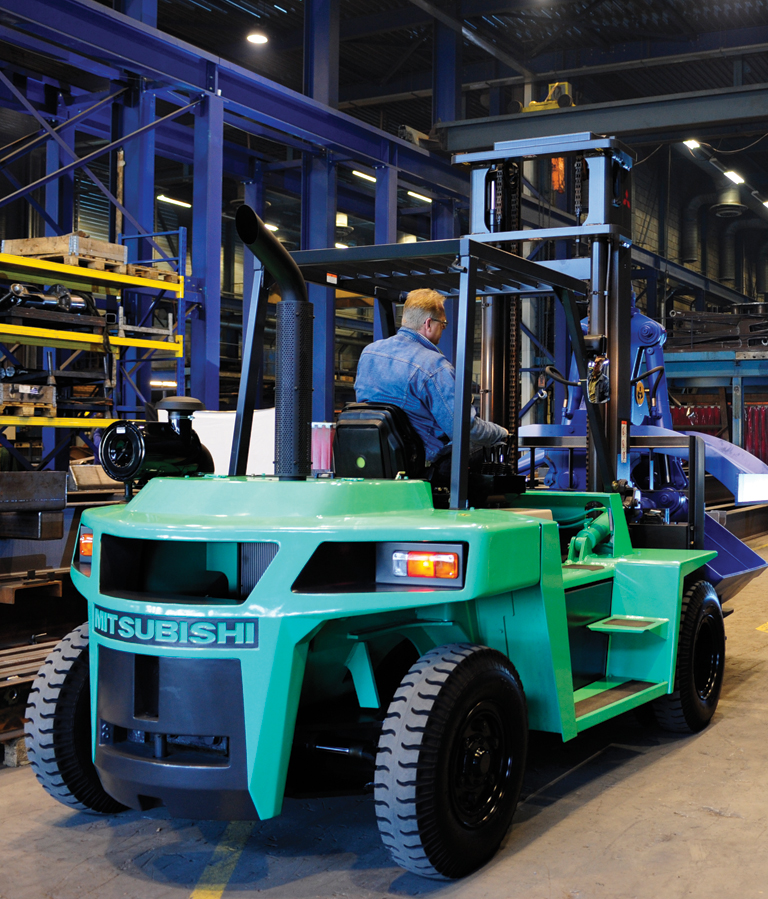

Mast and fork assembly

• Robust mast design maximises visibility and safety whilst accommodating the stresses imposed by wide loads.

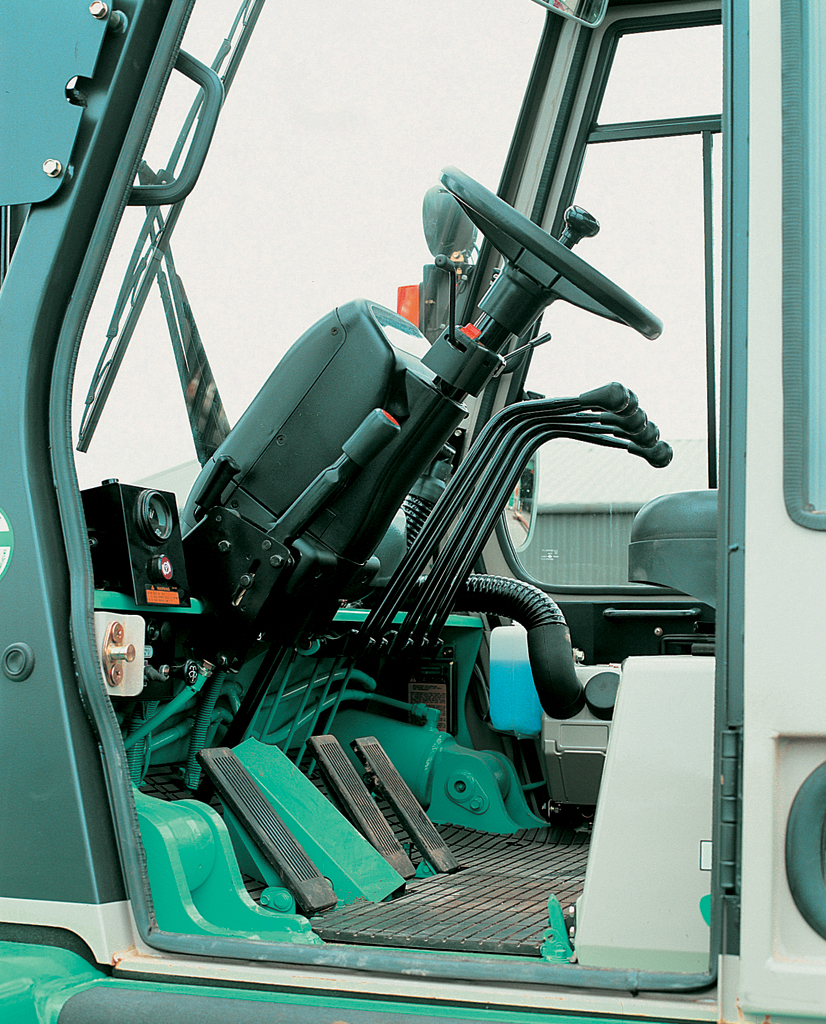

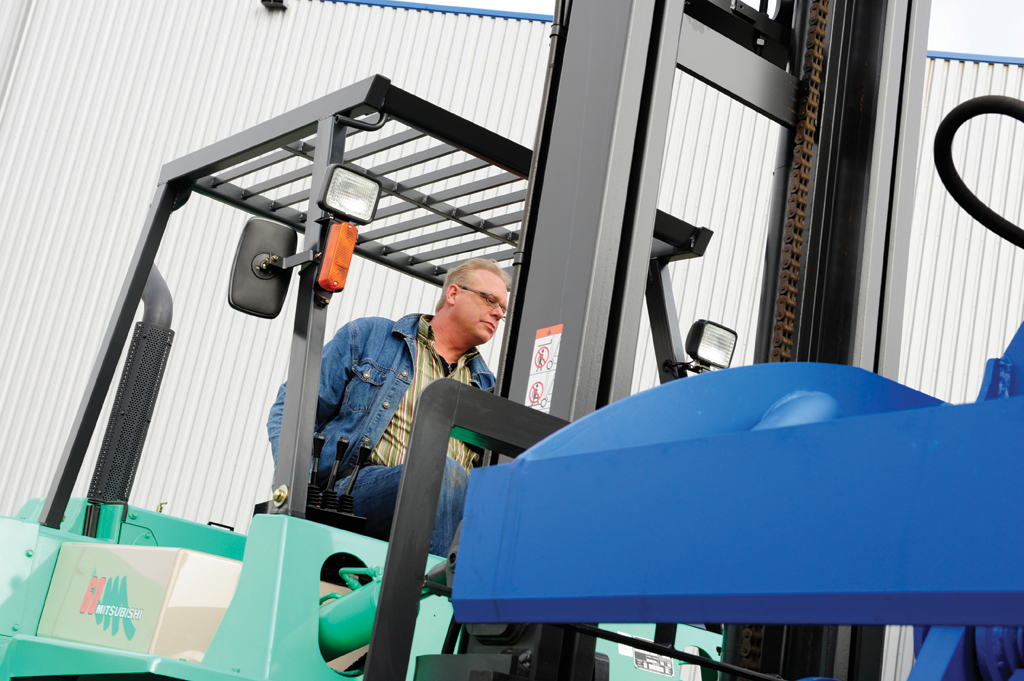

Operator compartment and controls

• Ergonomic design ensures operator comfort for high productivity.

• Large operating compartment offers plenty of overhead clearance.

• Fully adjustable suspension seat accommodates drivers of any height and weight.

Steering system

• Responsive hydrostatic steering provides precise handling with low driver effort.

Options include

• Deluxe cabin

• Choice of masts

• Sideshift and fork positioner

• Air intake options

• Hook and shaft-type carriages

• Working lights



Key Specifications

Cha­rac­ter­ist­ics
Manufacturer’s model designation			FD60	FD70
Power source: (battery, diesel, LP gas, petrol)			Diesel	Diesel
Operator type: pedestrian, (operator)-standing, -seated			Seated	Seated
Load capacity	Q	(kg)	6000	7000
Load centre distance	c	(mm)	600	600
Load distance, axle to fork face (forks lowered)	x	(mm)	585	585
Wheelbase	y	(mm)	2300	2300
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	8715	9325
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	13255/1460	14660/1665
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	4160/4555	4050/5275
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			L	L
Tyre dimensions, front			8.25X15-12PR	8.25X15-12PR
Tyre dimensions, rear			8.25X15-12PR	8.25X15-12PR
Number of wheels, front/rear (x=driven)			4X / 2	4X / 2
Track width (centre of tyres), front	b10	(mm)	1650	1650
Track width (centre of tyres), rear	b11	(mm)	1650	1650
Dimensions
Mast tilt, forwards/backwards	a/b	°	6/12	6/12
Tow coupling height	h10	(mm)	485	485
Overall length	l1	(mm)	4855	4855
Height with mast lowered (see tables)	h1	(mm)	3070	3070
Length to fork face (includes fork thickness)	l2	(mm)	3590	3635
Overall width	b1/b2	(mm)	2175	2175
Fork dimensions (thickness, width, length)	s,e,l	(mm)	60/150/1220	60/150/1220
Fork carriage to DIN 15 173 A/B/no			IV A / No	IV A / No
Fork carriage width	b3	(mm)	1780	1780
Free lift (see tables)	h2	(mm)	200	200
Ground clearance under mast, with load	m1	(mm)	140	140
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	255	255
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	5095	5180
Working aisle width with 800 x1200 mm pallets, crosswise	Ast	(mm)	4895	4980
Turning circle radius	Wa	(mm)	3310	3395
Minimum distance between centres of rotation	b13	(mm)	1260	1260
Lift height (see tables)	h3	(mm)	4000	4000
Overall height with mast raised	h4	(mm)	5280	5280
Height to top of overhead guard	h6	(mm)	2420	2420
Seat height	h7	(mm)	1350	1350
Performance
Travel speed, with/without load		km/h	23.0/27.5	22.0/27.5
Service brakes (mechanical/hydraulic/electric/pneumatic)			Hydraulic	Hydraulic
Lifting speed, with/without load		m/s	0.44/0.47	0.44/0.47
Lowering speed, with/without load		m/s	0.55/0.55	0.55/0.55
Rated drawbar pull, with/without load		N	42800/28700	42700/27700
Gradeability, with/without load		%	31 / 29	27 / 27
Acceleration time (10 metres) with/without load		s	-	-
IC Engine
Manufacturer / Type			Mitsubishi/S6S-T	Mitsubishi/S6S-T
Rated output to ISO 1585		kW	63,9	63,9
Rated speed to DIN 70 020		rpm	2300	2300
Number of cylinders / cubic capacity		/cm3	6/4996	6/4996
Fuel consumption according to VDI 60 cycle		l/h / kg/h	-	-
Miscellaneous
Type of drive control			Torque converter	Torque converter
Maximum operating pressure for attachments		bar	191	191
Oil flow for attachments		l/min	-	-
Noise level, value at operator’s ear (EN 12053)		dB(A)	-	-
Towing coupling design / DIN type, ref.			-	-
