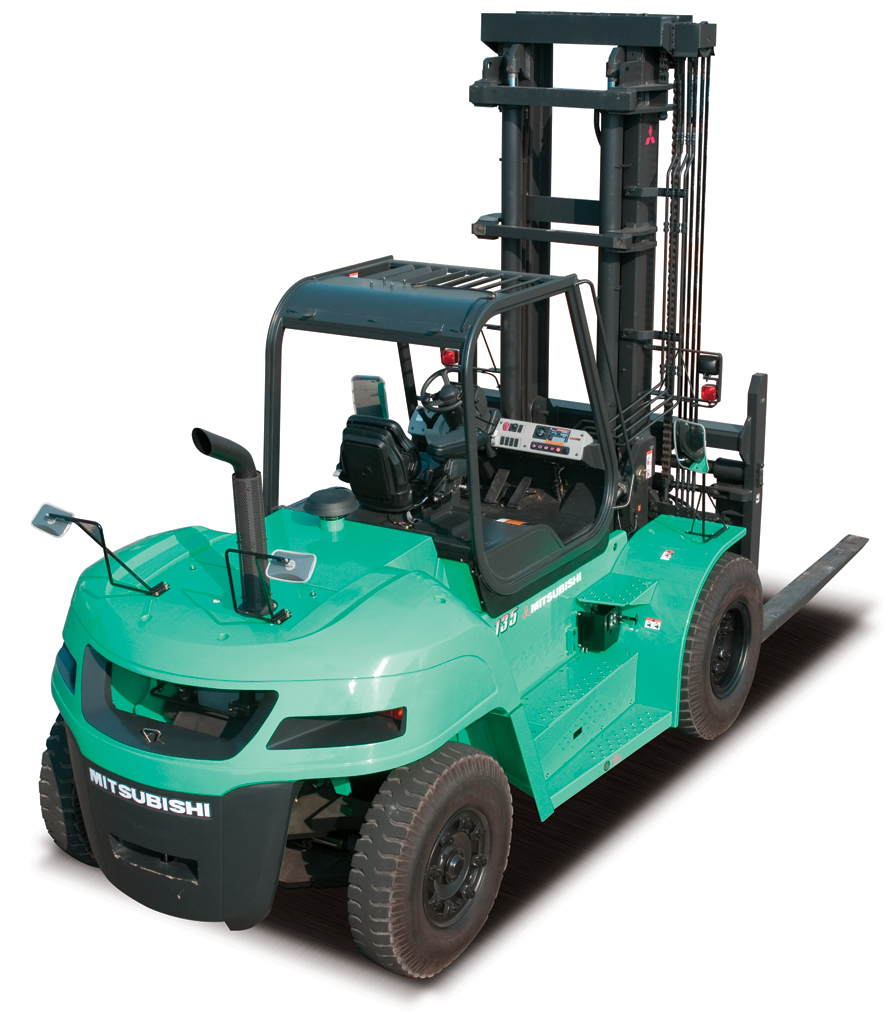

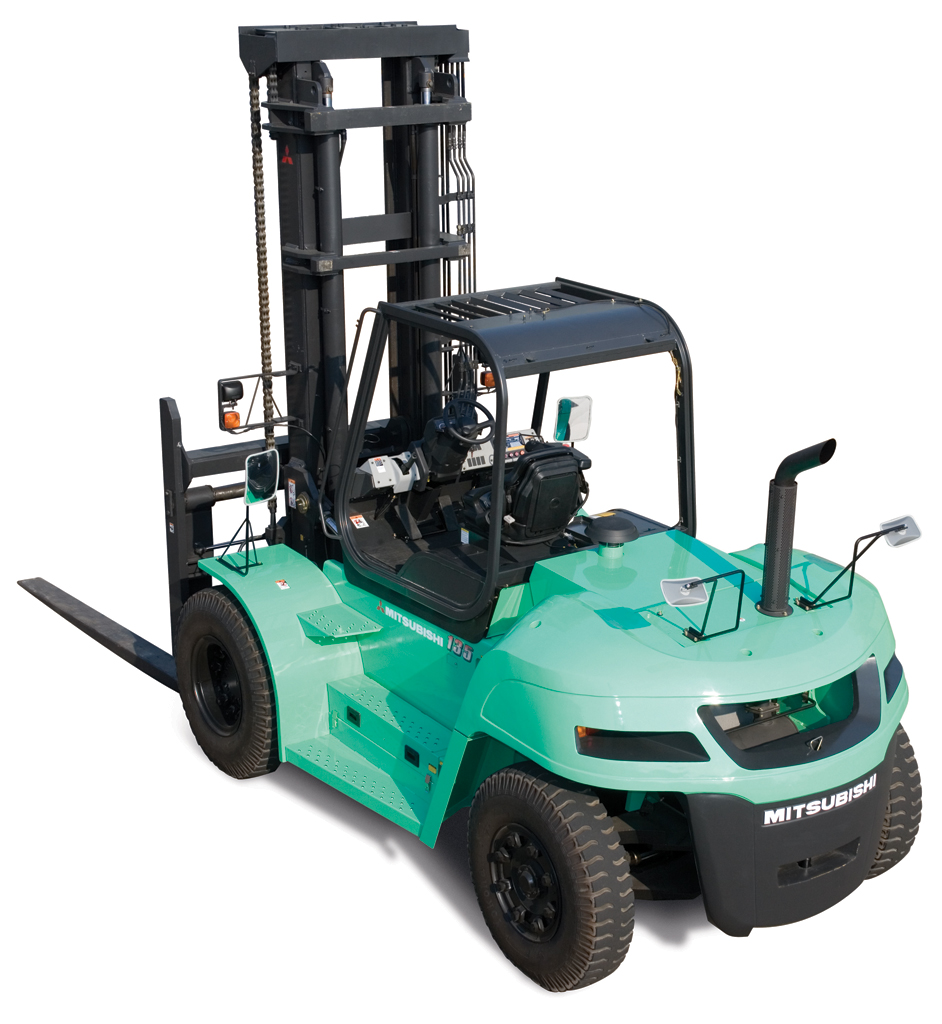

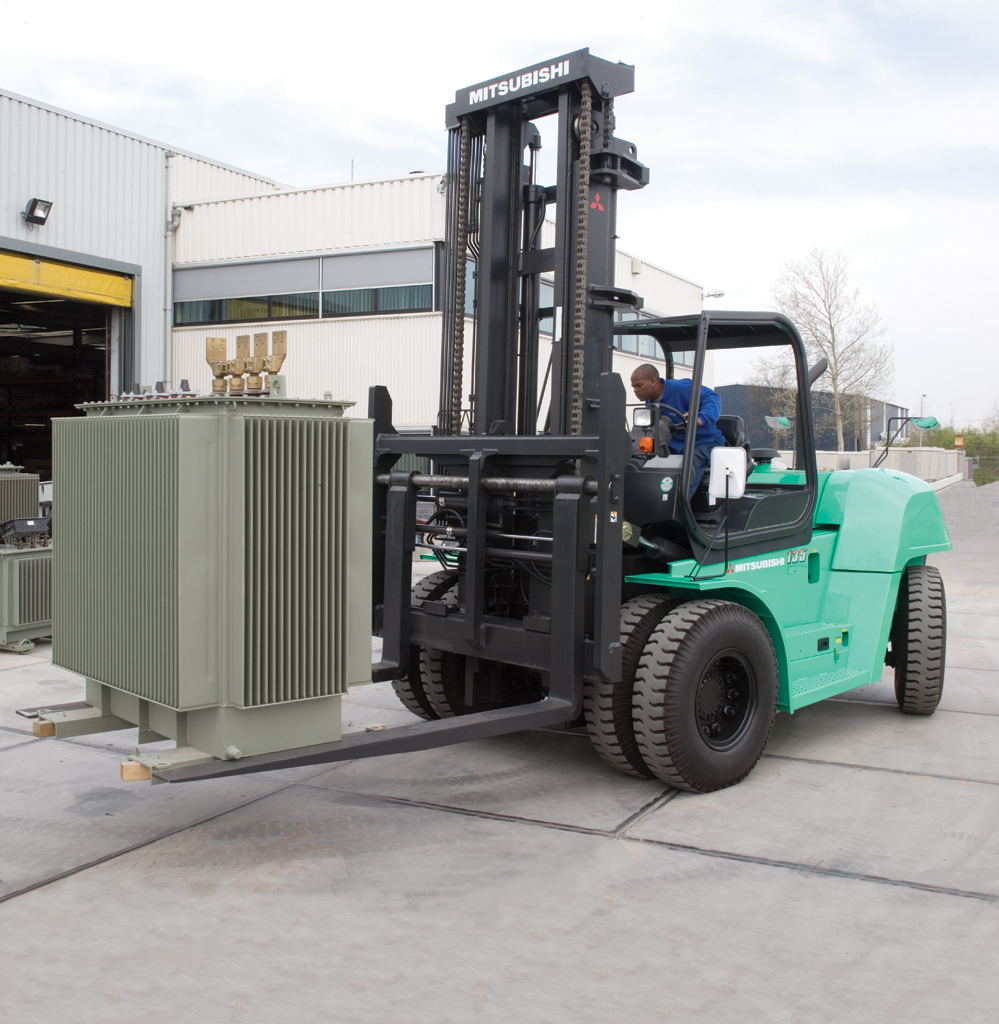

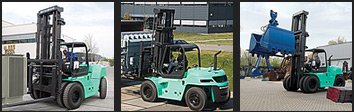

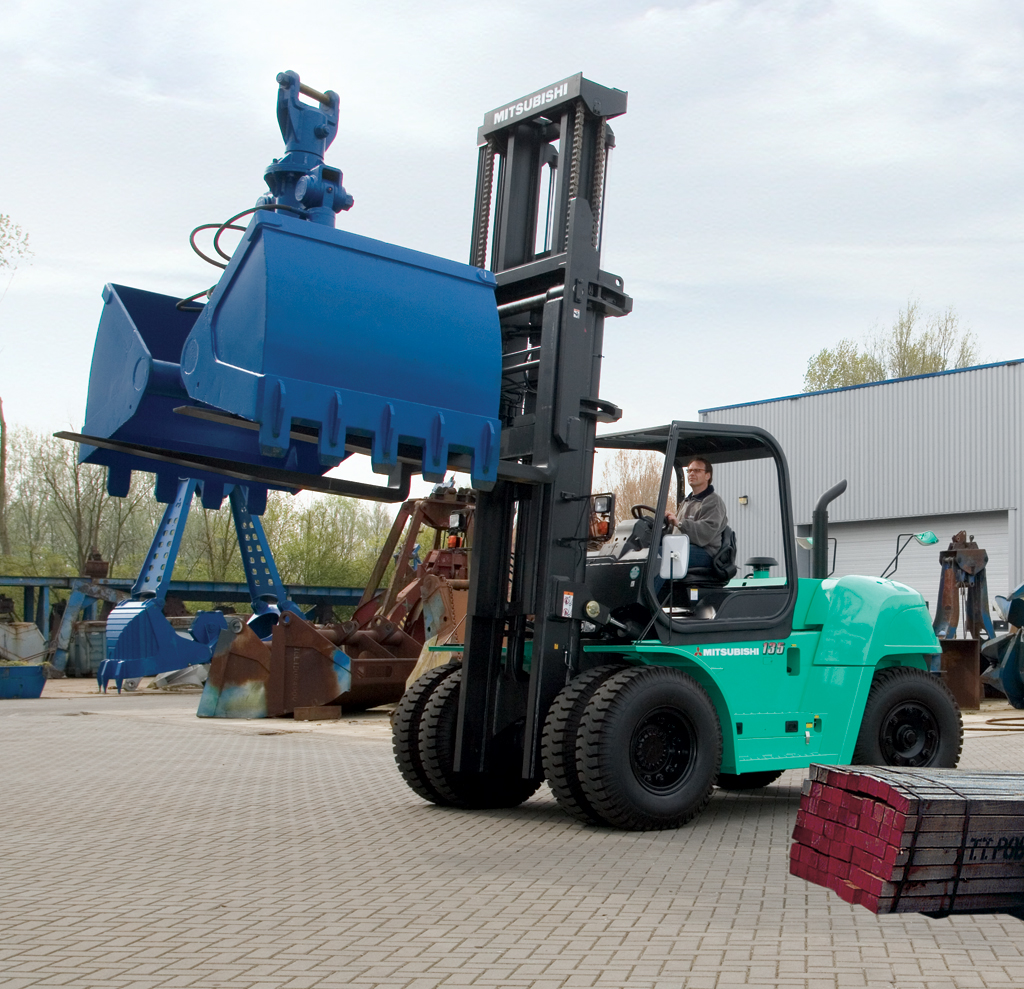

A tough truck... with a gentle touch

Diesel Counterbalance / 6 Wheel Pneumatic Tyres / 8.0 - 16.0  tonnes

These heavyweight trucks deliver all the productivity and reliability you would expect from a Mitsubishi product - in a rugged, extremely powerful package. And although they are tough in action, they are gentle on the driver and the environment. Low noise, effortless hydraulic control and refined ergonomics make driving a pleasure, while emissions have been minimised to meet the strict European exhaust emissions regulations.

Styling is modern and attractive, and a choice of seven capacities is offered to meet every need. Lift speed and gradient performance are exceptional, thanks to the high-powered engine and efficient transmission. High-quality components, protective features and easy service access maximise uptime, while great all-round visibility, a secure operator compartment and the Integrated Presence System (IPS) give peace of mind

Model	Load Capacity
FD80N	8000 kg
FD90N	9000 kg
FD100N	10000 kg
FD120N	12000 kg
FD135N	13500 kg
FD150N	15000 kg
FD160N	16000 kg

Key Features

• Powerful Mitsubishi 6M60-TL diesel engine produces high output and torque for increased productivity.

• Common rail technology in combination with elec­tron­ic­ally controlled fuel injection system, turbo charger, intercooler, exhaust gas recirculation and positive crank case ventilation system allows control of torque, noise and emissions to comply with stage IIIA of exhaust emissions regulations (97/68/EC amended by 2004/26/EC).

• In-house manufacture of entire drive train means perfect compatibility of engine, transmission and front axle.

• Dependable hydraulic system uses gear-type hydraulic pump and optimised component layout to reduce build-up of heat in the hydraulic system - for higher efficiency.

• CAN-bus system together with 32-code fault memory folder makes trou­ble­shoot­ing quick and simple.

• Integrated Presence System provides parking brake alarm, seat belt warning light and hydraulic and travel interlock system for added safety.

• Fingertip hydraulic controls integrated into fully adjustable, comfortable armrest allow effortless precision.

• Low noise levels at operator's ear increase comfort and reduce fatigue.

• 500-hour service interval (conditions apply) and long life of components reduces downtime and associated costs.

• Standard tiltable operator compartment gives quick and easy entry to all areas for maintenance.

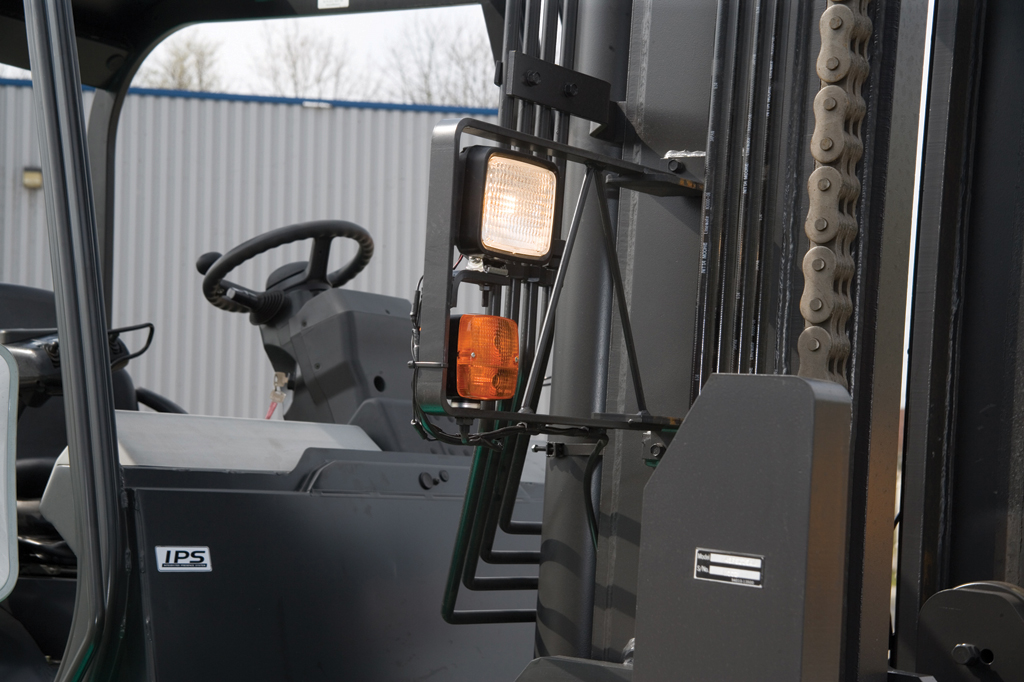

Integrated Presence System

IPS/IPS2
Inbuilt safety

Two versions of our pioneering Integrated Presence Systems (IPS and IPS2) feature in the current model range. Both prevent all truck and mast movement if the operator is not seated, as well as giving essential warnings.

IPS2 adds an electronic parking brake - applied automatically if the seat is empty and manually via a button on the dashboard.

Functions in detail:

• lockouts prevent accidental lifting, lowering, tilting and travel

• automatic warnings remind driver to fasten seatbelt and apply parking brake

• electronic parking brake (IPS2 only) is automatically applied when driver leaves seat

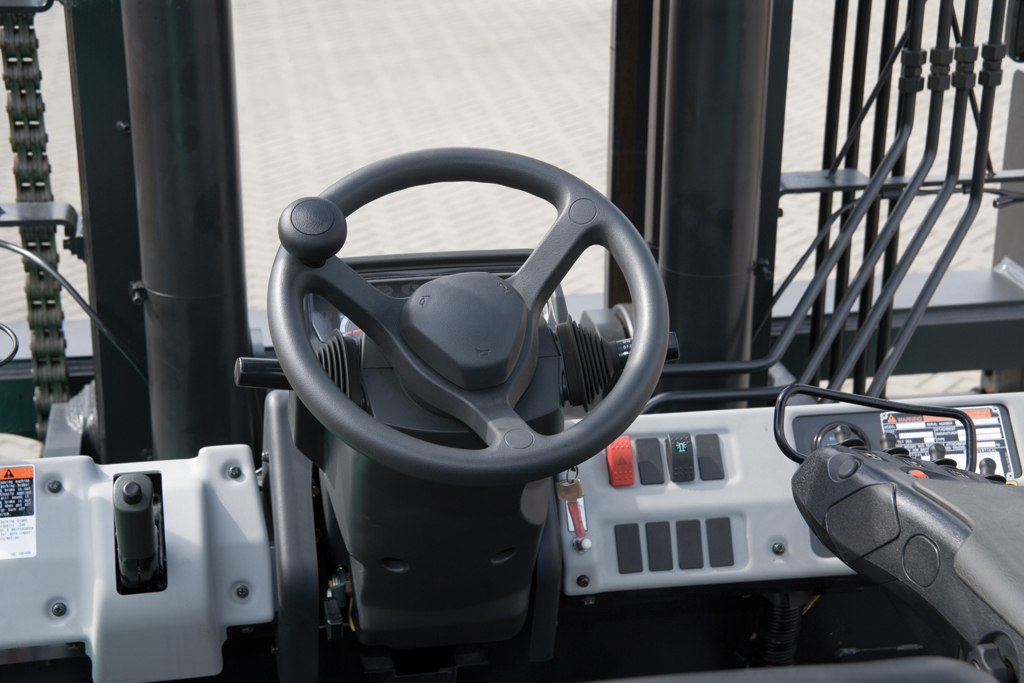

Ergonomic hydraulic levers

User-friendly lever design
Productivity within easy reach

Designers at Mitsubishi understand that high productivity depends on the combination of high-quality engineering and a comfortable, confident operator who is totally in control. Our user-focused truck design puts the needs of the operator at the heart of all product development.

Although Mitsubishi has been a pioneer in the development of fingertip hydraulic control units, we recognise that many users still prefer levers instead. Our hydraulic control lever design, along with other carefully positioned controls, reduces driver fatigue and increases precision.

The latest version offers:

• compact size for easy, short movements

• ergonomic location to the right of operator for easy reach

• easy-grip shape and responsive action giving a strong sense of touch, even if the operator is wearing thick gloves

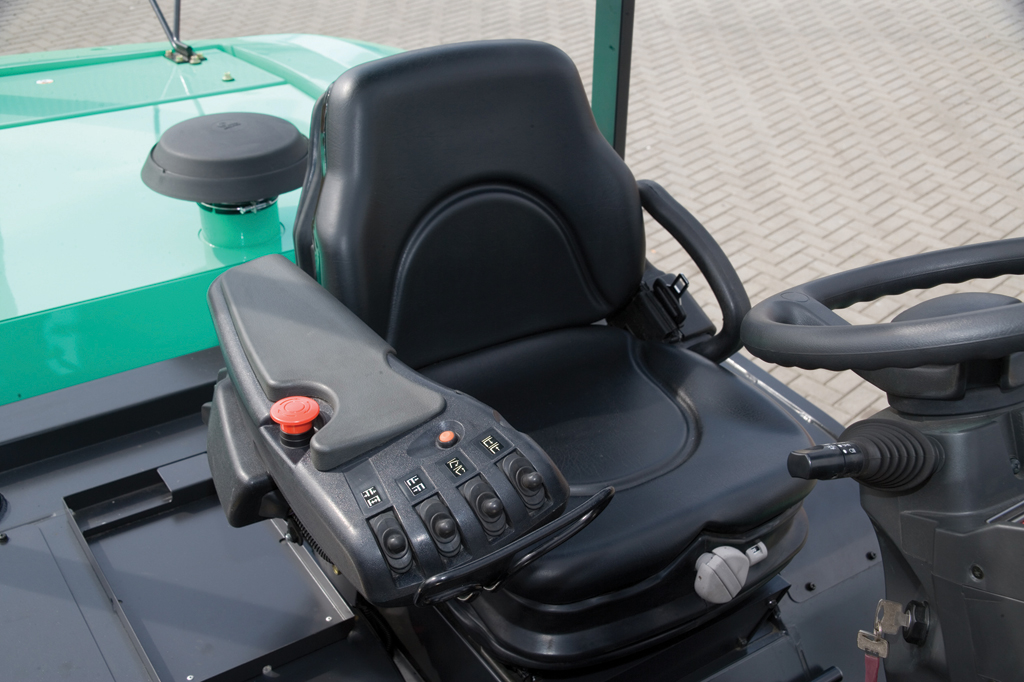

Fingertip hydraulic control

Integrated controls and armrest
The best just gets better

When Mitsubishi developed its first fingertip control units nearly two decades ago, its designers were able to draw on a strong heritage in fly-by-wire technology gained through its aerospace activities.

Today, after many generations of design improvements, the award-winning Mitsubishi fingertip control system is considered by many to be the best in the materials handling industry. Ideal for applications where precise control and the ultimate in driver ergonomics are needed, it can even be operated using heavy, protective gloves.

The latest version offers:

• fully adjustable armrestensuring optimum position and comfort for operator’s wrist

• up to five fingertip levers for up to four hydraulic functions

• additional button commands if required for other functions

• programmable sensitivity to meet the needs of different applications and operators

• high-visibility emergency stop button for added safety

Brakes

• Standard high-performance drum brakes are air-assisted and hydraulically actuated.

• Heavy duty, oil-cooled, disc brakes reduce operational costs in harsh applications (standard on 16 tonne model, optional on all others).

Drive

• Powerful Mitsubishi 6M60-TL diesel engine produces high output and torque for increased productivity.

• Common rail technology in combination with elec­tron­ic­ally controlled fuel injection system, turbo charger, intercooler, exhaust gas recirculation and positive crank case ventilation system allows control of torque, noise and emissions to comply with stage IIIA of exhaust emissions regulations (97/68/EC amended by 2004/26/EC).

• Powerful cooling system with efficient aluminium radiator maintains excellent temperature control.

• In-house manufacture of entire drive train means perfect compatibility of engine, transmission and front axle.

• Heavy duty auto-shift transmission through clutches with large friction area, together with reliable inching, ensures trouble-free operation.

Electrical and control systems

• CAN-bus system together with 32-code fault memory folder makes trou­ble­shoot­ing quick and simple.

• Integrated Presence System provides parking brake alarm, seat belt warning light and hydraulic and travel interlock system for added safety.

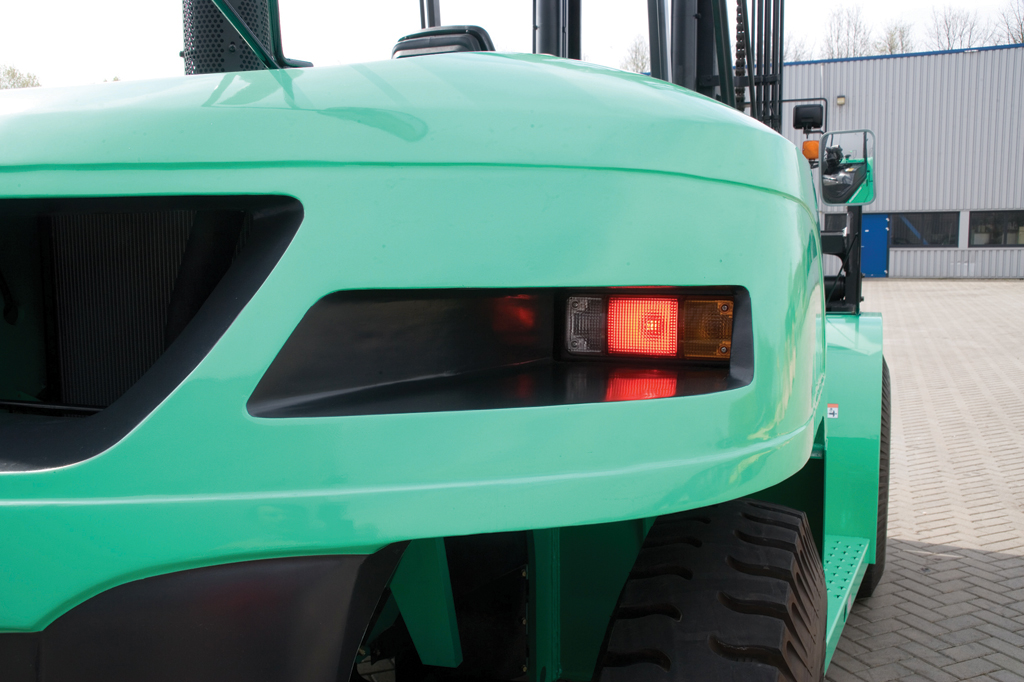

Frame and body

• Box-shaped structure with integrated fuel and hydraulic tanks gives the chassis excellent rigidity.

• Fenders and steps are bolted to the chassis for easy servicing.

Hydraulics

• Dependable hydraulic system uses gear-type hydraulic pump and optimised component layout to reduce build-up of heat in the hydraulic system - for higher efficiency.

• High-performance hydraulic breather extends life of vulnerable components in harsh applications.

Mast and fork assembly

• Separately constructed mast channels add extra strength, while straight-positioned roller bearings and adjustable side rollers ensure total reliability.

• Standard shaft-type carriage with low shaft height optimises visibility.

• Carriage design includes single centre bar with consequently large fork adjustment range for great functionality.

• Simultaneous and independent fork control options can be chosen by the driver according to preference.

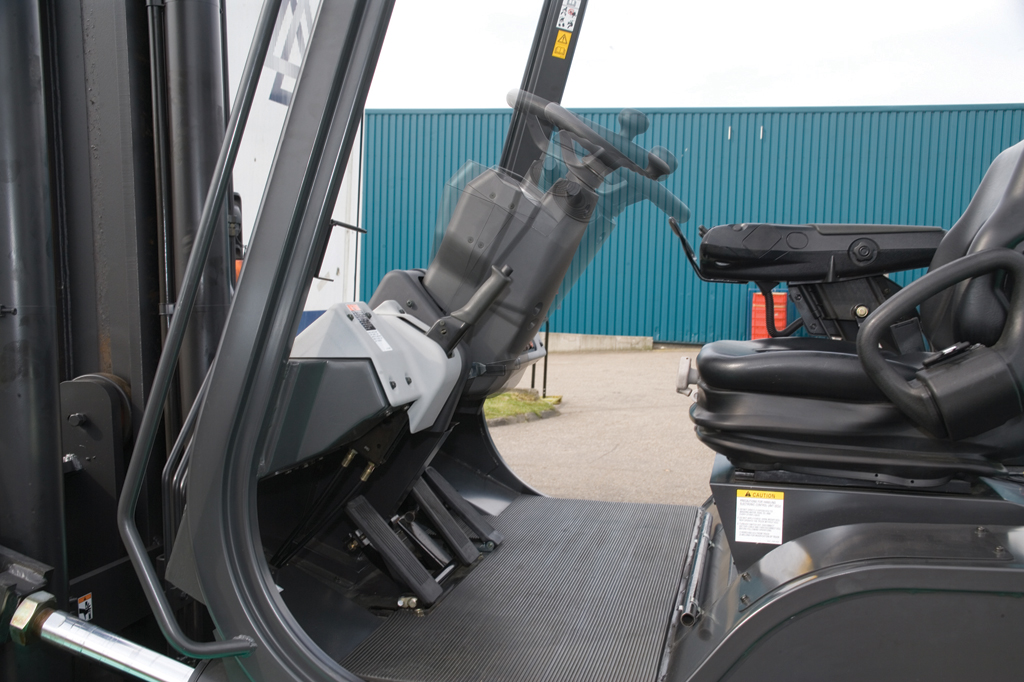

Operator compartment and controls

• Wide, high-grip steps and long grab handles allow easy on-off access from both sides.

• Full-suspension vinyl seat is easy to keep clean and keeps driver comfortable through the longest of shifts.

• Fingertip hydraulic controls integrated into fully adjustable, comfortable armrest allow effortless precision.

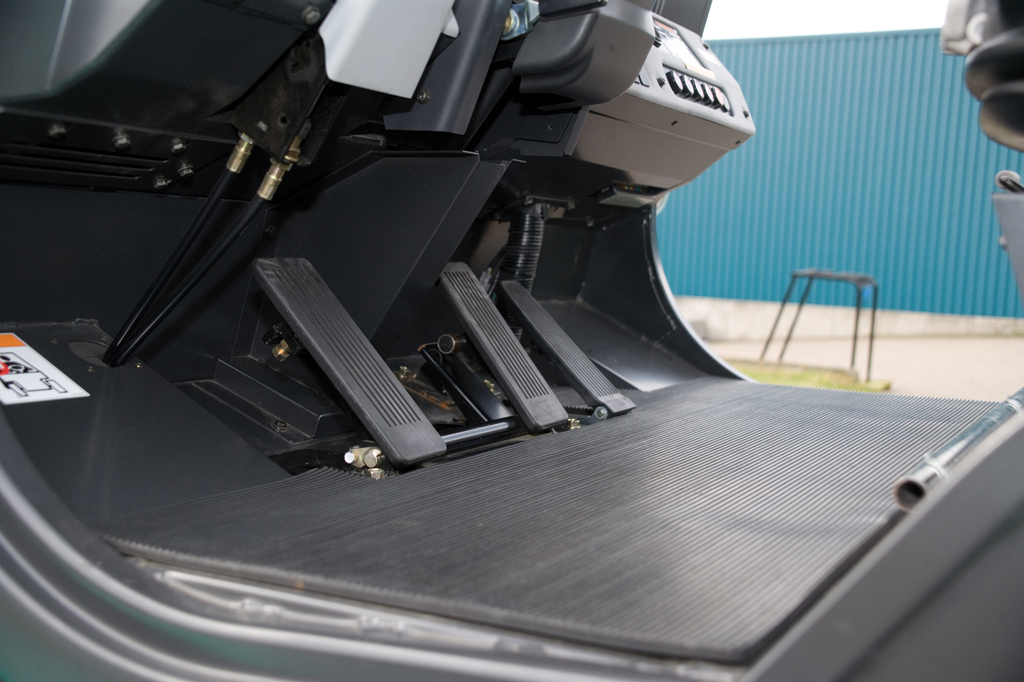

• Automotive-style pedals with optimum pedal angle are easy to use and give good control without leg strain.

• Low noise levels at operator's ear increase comfort and reduce fatigue.

Steering system

• Robust rear axle with tapered roller bearings, high-quality seals and fixed tie rods ensures reliability.

Other features

• 500-hour service interval (conditions apply) and long life of components reduces downtime and associated costs.

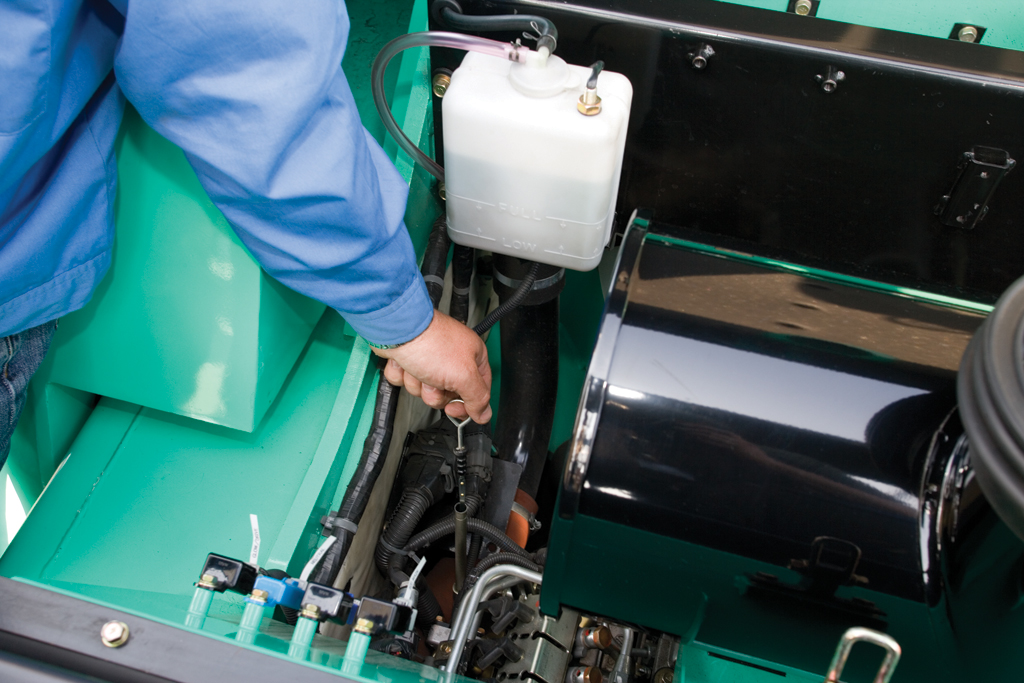

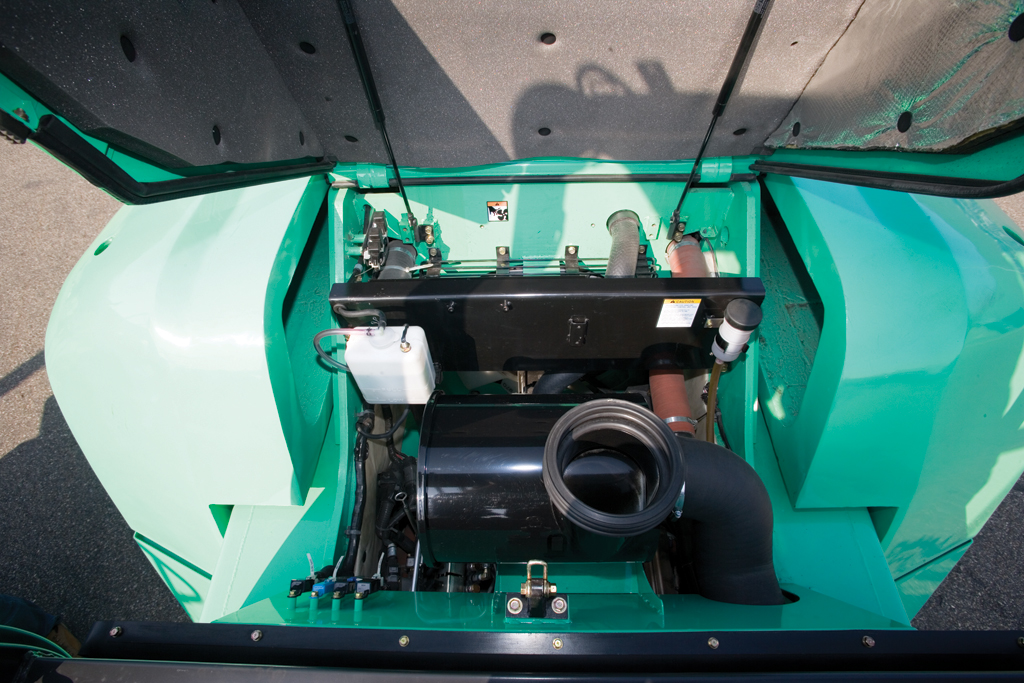

• Rapid access features include easy reach for daily checks, without tilting the cabin and with no need for tools.

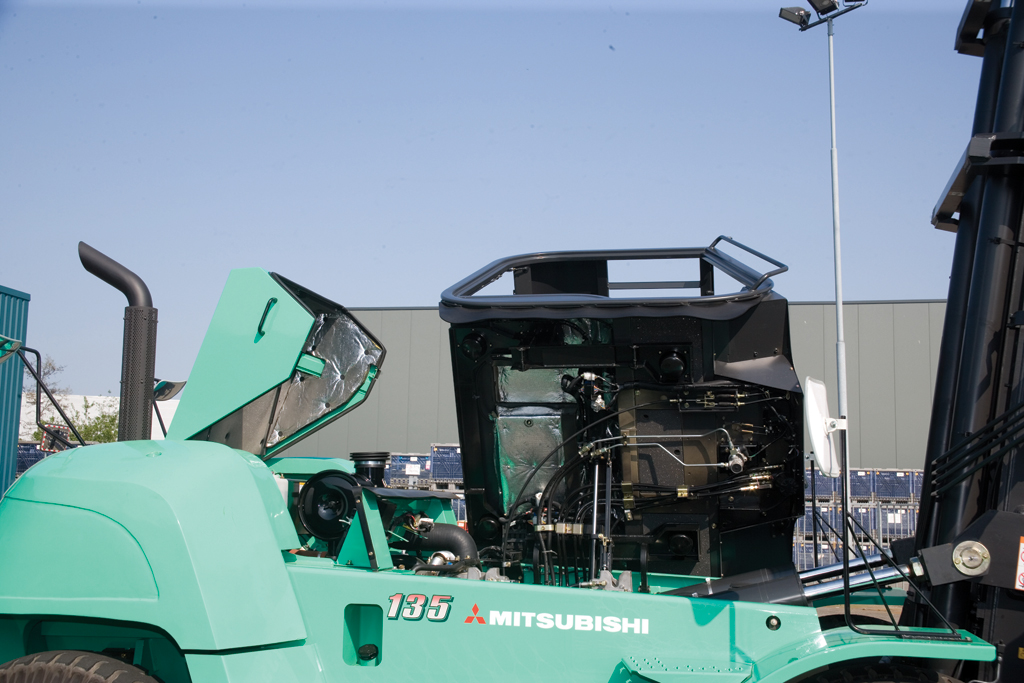

• Standard tiltable operator compartment gives quick and easy entry to all areas for maintenance.

Options include

• Deluxe cabin

• Mast attachments

• Air intake options



Key Specifications

Cha­rac­ter­ist­ics
Manufacturer’s model designation			FD80N	FD90N	FD100N	FD120N	FD135N	FD150N	FD160N
Power source: (battery, diesel, LP gas, petrol)			Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Operator type: pedestrian, (operator)-standing, -seated			Seated	Seated	Seated	Seated	Seated	Seated	Seated
Load capacity	Q	(kg)	8000	9000	10000	12000	13500	15000	16000
Load centre distance	c	(mm)	600	600	600	600	600	600	600
Load distance, axle to fork face (forks lowered)	x	(mm)	675	755	755	765	795	795	805
Wheelbase	y	(mm)	2650	2650	2800	2800	2800	3100	3300
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	11740	13510	14800	16060	17700	18050	18950
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	17740 / 2000	20290 / 2220	22290 / 2510	25190 / 2870	28060 / 3140	29930 / 3120	31720 / 3230
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	5890 / 5850	6685 / 6825	7450 / 7350	7340 / 8720	7850 / 9850	8190 / 9860	8910/ 10040
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			L	L	L	L	L	L	L
Tyre dimensions, front			9.00-20-12PR	9.00-20-14PR	10.00-20-14PR	10.00-20-16PR	12.00-20-18PR	12.00-20-18PR	12.00-20-20PR
Tyre dimensions, rear			9.00-20-12PR	9.00-20-14PR	10.00-20-14PR	10.00-20-16PR	12.00-20-18PR	12.00-20-18PR	12.00-20-20PR
Number of wheels, front/rear (x=driven)			4X / 2	4X / 2	4X / 2	4X / 2	4X / 2	4X / 2	4X / 2
Track width (centre of tyres), front	b10	(mm)	1820	1820	1900	1900	1905	1905	1905
Track width (centre of tyres), rear	b11	(mm)	1755	1755	1965	1965	1925	1925	1890
Dimensions
Mast tilt, forwards/backwards	a/b	°	15 / 12	15 / 12	15 / 12	15 / 12	15 / 12	15 / 12	15 / 12
Tow coupling height	h10	(mm)	565	565	695	695	735	735	735
Overall length	l1	(mm)	5285	5460	5510	5595	5750	6050	6260
Height with mast lowered (see tables)	h1	(mm)	3275	3520	3590	3590	3885	3885	4035
Length to fork face (includes fork thickness)	l2	(mm)	4065	4240	4295	4375	4530	4830	5040
Overall width	b1/b2	(mm)	2390	2390	2515	2515	2600	2600	2635
Fork dimensions (thickness, width, length)	s,e,l	(mm)	64 / 180 / 1220	72 / 180 / 1220	72 / 180 / 1220	79 / 180 / 1220	88 / 180 / 1220	88 / 180 / 1220	92 / 180 / 1220
Fork carriage to DIN 15 173 A/B/no			no	no	no	no	no	no	no
Fork carriage width	b3	(mm)	1825	2210	2210	2210	2220	2220	2220
Free lift (see tables)	h2	(mm)	160	0	0	0	0	0	0
Ground clearance under mast, with load	m1	(mm)	215	205	220	220	260	260	260
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	230	230	275	275	320	320	320
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	5925	6105	6165	6235	6365	6755	7030
Working aisle width with 800 x1200 mm pallets, crosswise	Ast	(mm)	-	-	-	-	-	-	-
Turning circle radius	Wa	(mm)	3830	3930	3990	4050	4150	4545	4805
Minimum distance between centres of rotation	b13	(mm)	1535	1535	1550	1550	1550	1805	1975
Lift height (see tables)	h3	(mm)	4000	4000	4000	4000	4000	4000	4000
Overall height with mast raised	h4	(mm)	5325	5490	5590	5590	5930	5930	6035

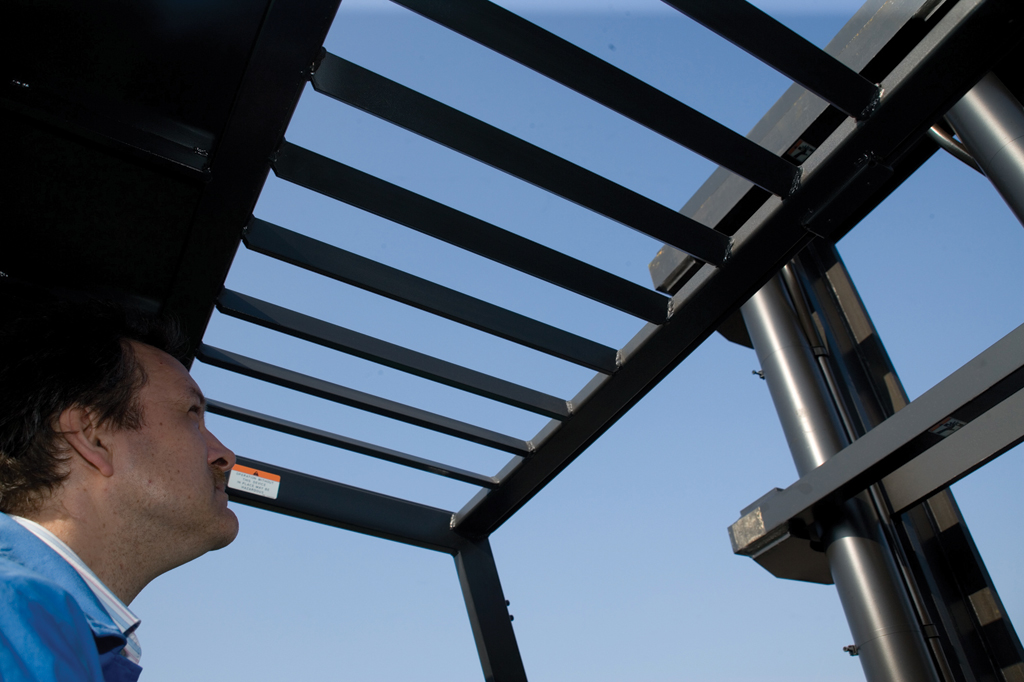

Height to top of overhead guard	h6	(mm)	2845	2845	2915	2915	2960	2960	2960
Seat height	h7	(mm)	1800	1800	1875	1875	1915	1915	1915
Performance
Travel speed, with/without load		km/h	27 / 31	26 / 30	24 / 29	23 / 29	23 / 30	23 / 30	22 / 30
Service brakes (mechanical/hydraulic/electric/pneumatic)			drum / pneum - hydr	drum / pneum - hydr	drum / pneum - hydr	drum / pneum - hydr	drum / pneum - hydr	drum / pneum - hydr	drum / pneum - hydr
Lifting speed, with/without load		m/s	0.550 / 0.570	0.440 / 0.460	0.460 / 0.480	0.460 / 0.480	0.380 / 0.400	0.380 / 0.400	0.350 / 0.370
Lowering speed, with/without load		m/s	0.550 / 0.500	0.440 / 0.400	0.460/0.500	0.460 / 0.500	0.480 / 0.510	0.480 / 0.510	0.440 / 0.470
Rated drawbar pull, with/without load		N	85600 / 40700	84800 / 46200	86500 / 50200	85700 / 49700	78800 / 51800	78400 / 55200	77900 / 60300
Gradeability, with/without load		%	49 / 31	39 / 28	38 / 30	33 / 27	27 / 26	25 / 27	23 / 29
Acceleration time (10 metres) with/without load		s	-	-	-	-	-	-	-
IC Engine
Manufacturer / Type			MITSUBISHI 6M60-TL	MITSUBISHI 6M60-TL	MITSUBISHI 6M60-TL	MITSUBISHI 6M60-TL	MITSUBISHI 6M60-TL	MITSUBISHI 6M60-TL	MITSUBISHI 6M60-TL
Rated output to ISO 1585		kW	110	110	110	110	110	110	110
Rated speed to DIN 70 020		rpm	2100	2100	2100	2100	2100	2100	2100
Number of cylinders / cubic capacity		/cm3	6 / 7545	6 / 7545	6 / 7545	6 / 7545	6 / 7545	6 / 7545	6 / 7545
Fuel consumption according to VDI 60 cycle		l/h / kg/h	-	-	-	-	-	-	-
Miscellaneous
Type of drive control			Torque converter	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter
Maximum operating pressure for attachments		bar	181	181	206	206	206	206	206
Oil flow for attachments		l/min	-	-	-	-	-	-	-
Noise level, value at operator’s ear (EN 12053)		dB(A)	-	-	-	-	-	-	-
Towing coupling design / DIN type, ref.			-	-	-	-	-	-	-
