Rugged and powerful... refined and clean

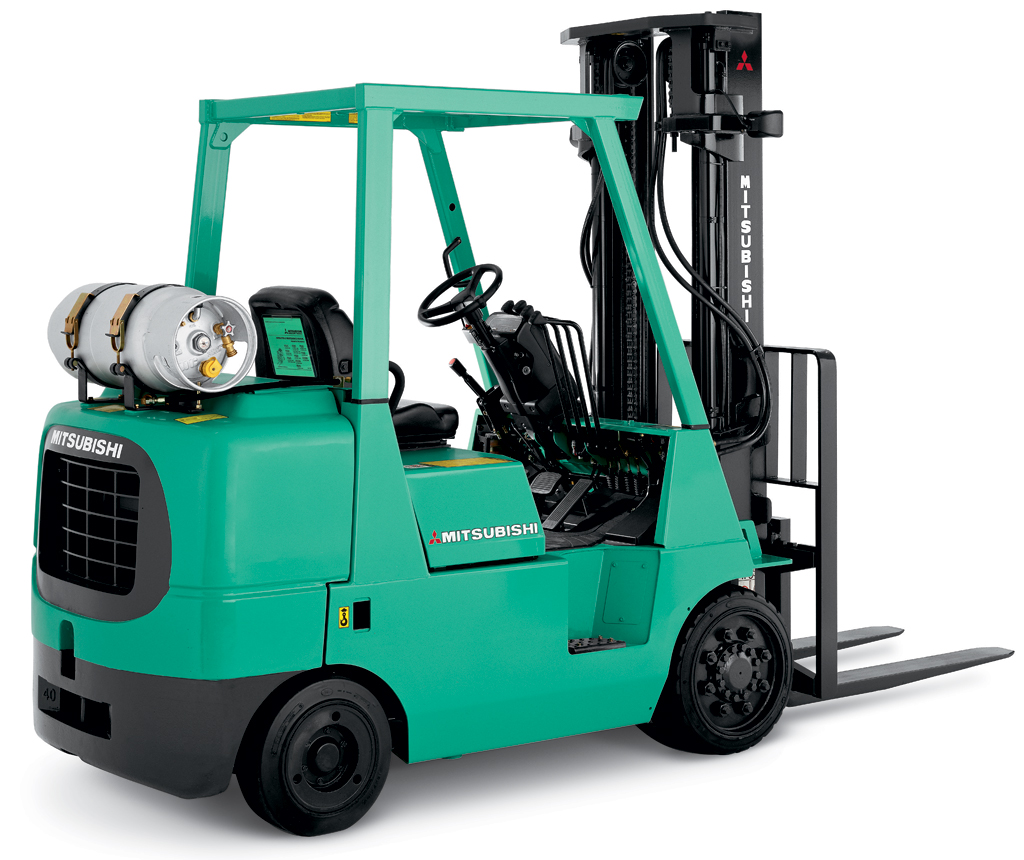

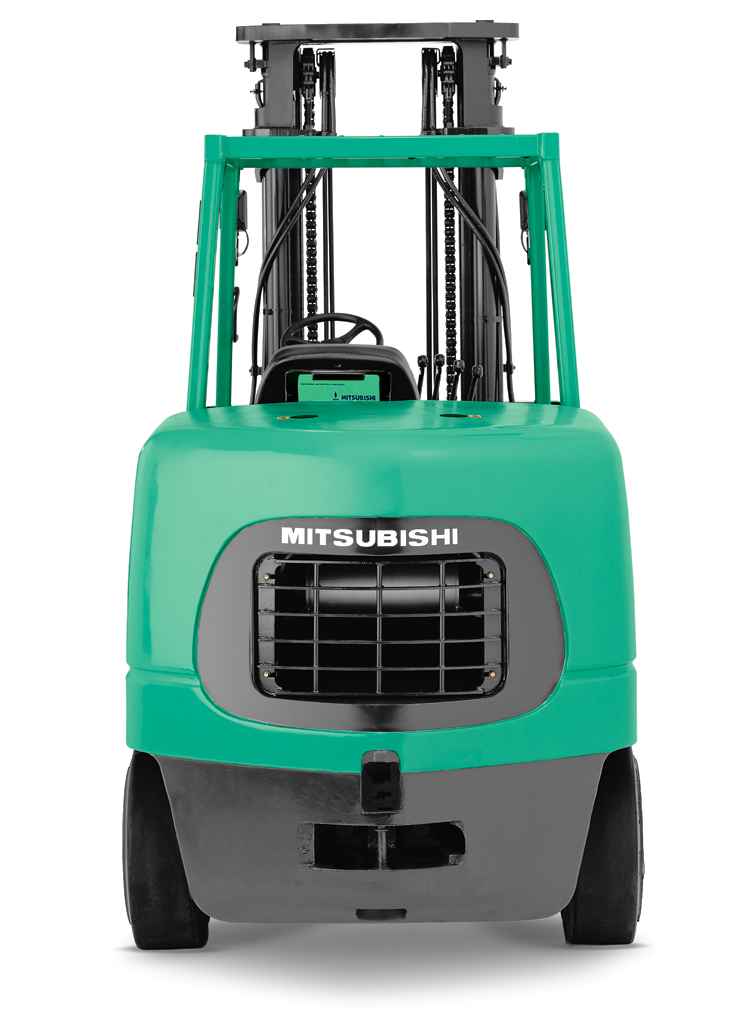

LP Gas Counterbalance / 4 Wheel Cushion Tyres / 3.5 - 7  tonnes

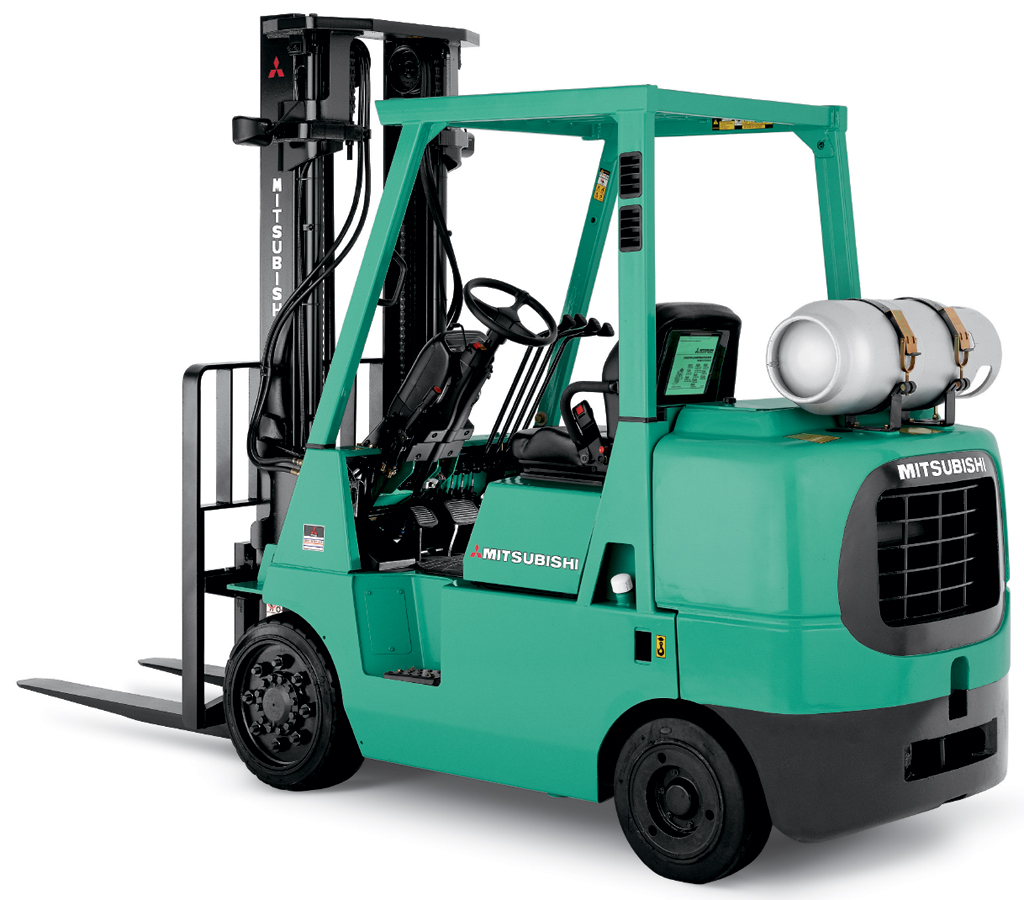

With its powerful Mitsubishi engine, heavy duty masts and rugged, ultrastable construction, you can rely on this forklift truck to deliver high productivity - day after day, year after year. At the same time, you will enjoy the benefits of a refined driving experience, low noise and low emissions.

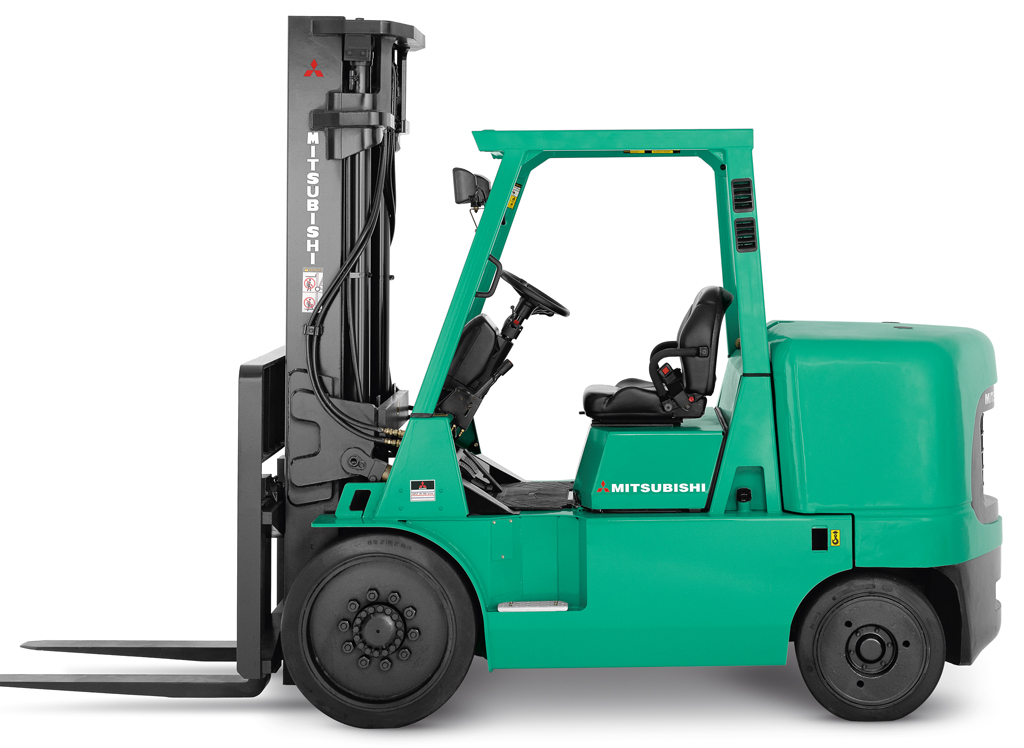

Use of cushion tyres has allowed the designers to develop a compact truck with an extremely low centre of gravity, offering high residual capacities. The tyres give excellent traction on smooth surfaces and reduce energy consumption. To gain the utmost advantage from these features, operators are provided with a comfortable, ergonomic operating compartment and smooth, precise controls.

Model	Load Capacity
FGC35K	3500 kg
FGC40K	4000 kg
FGC40K STC	4000 kg
FGC45K SWB	4500 kg
FGC45K STC	4500 kg
FGC55K	5500 kg
FGC55K STC	5500 kg
FGC60K	6000 kg

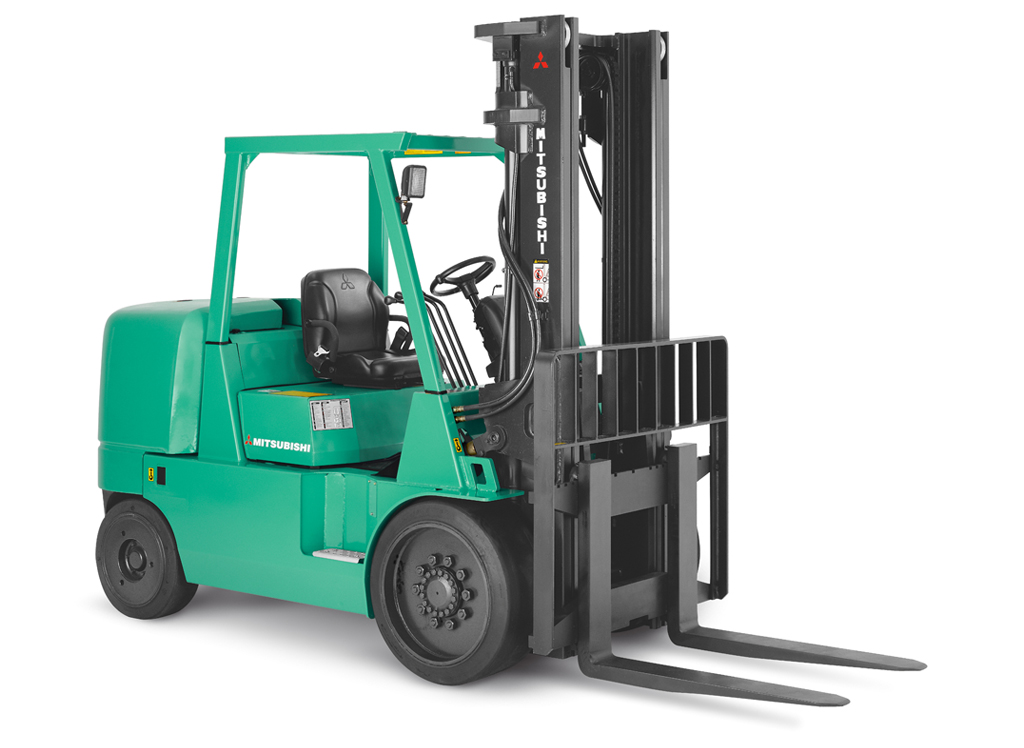

FGC70K	7000 kg
FGC70K STC	7000 kg

Key Features

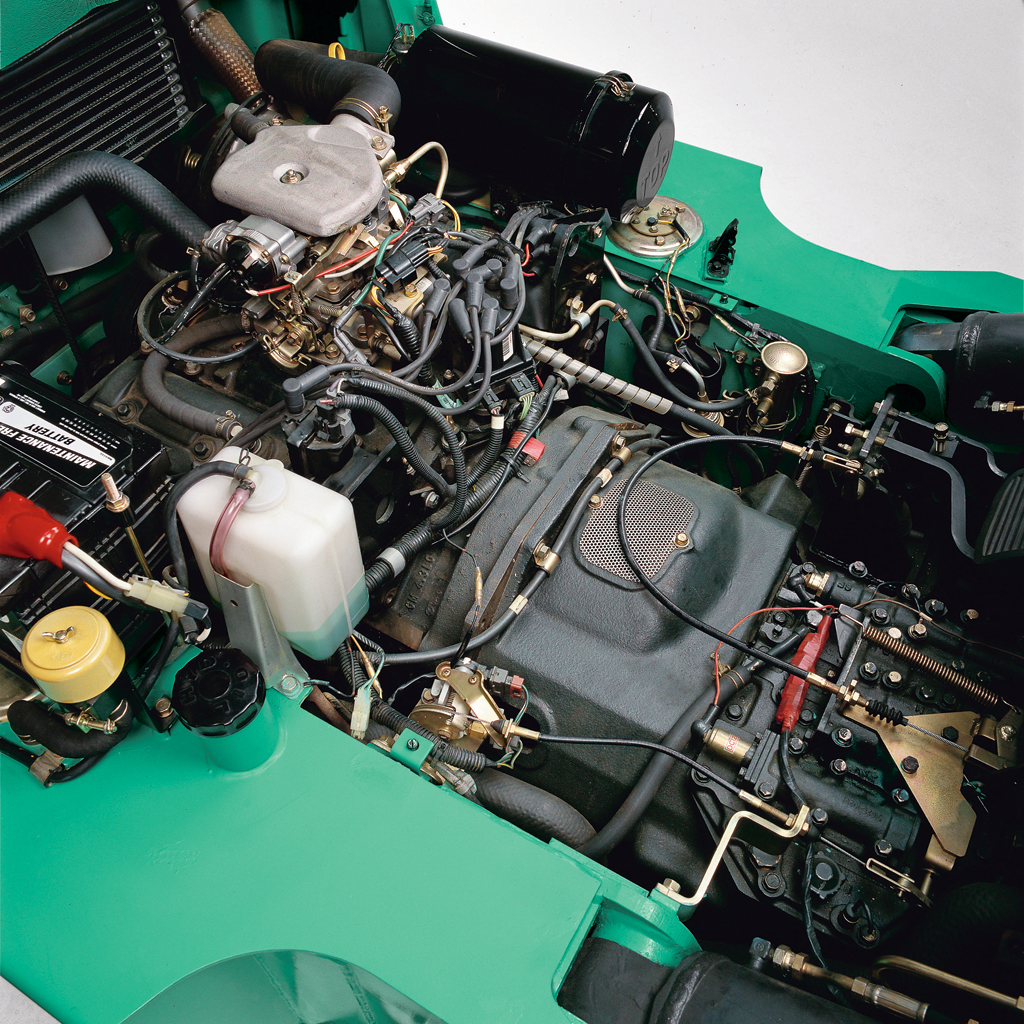

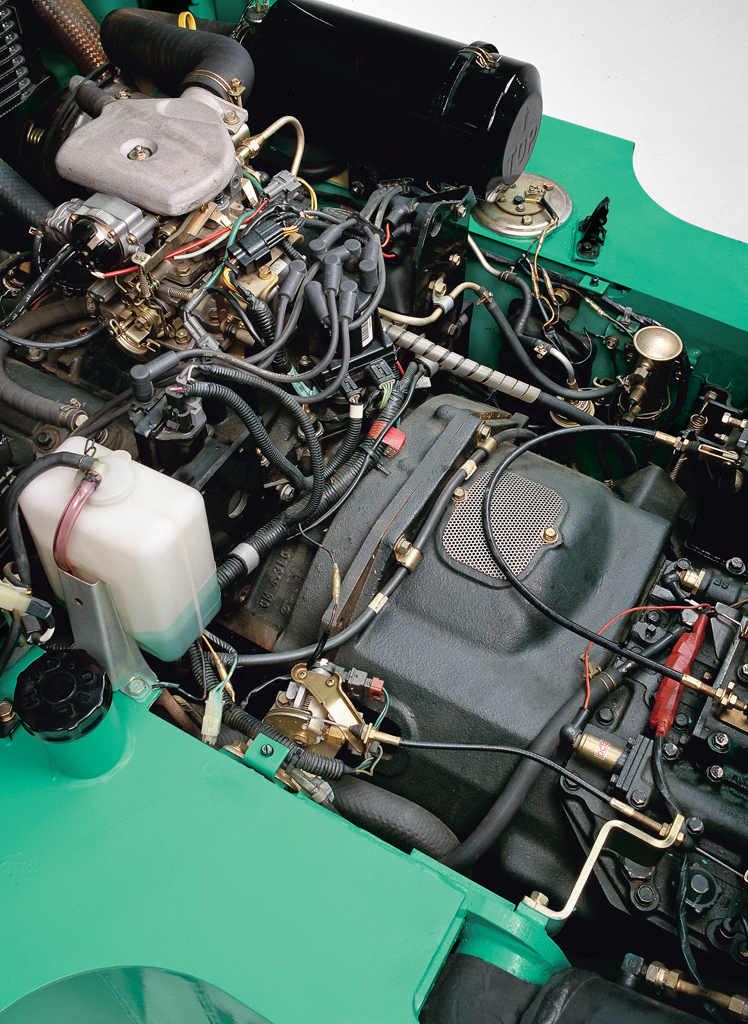

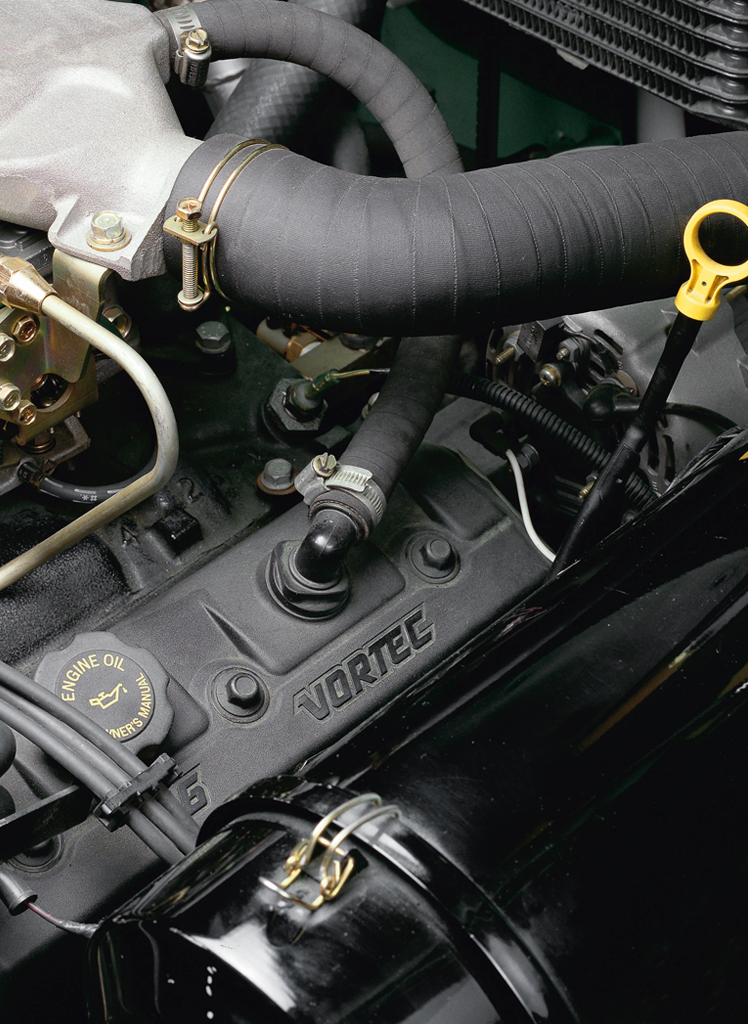

• Advanced LPG engine with engine management system and 3-way catalytic converter delivers precisely controlled performance, high fuel economy and low emissions.

• Advanced frame and overhead guard design results in an unusually low centre of gravity, great stability, high productivity and optimum driver protection.

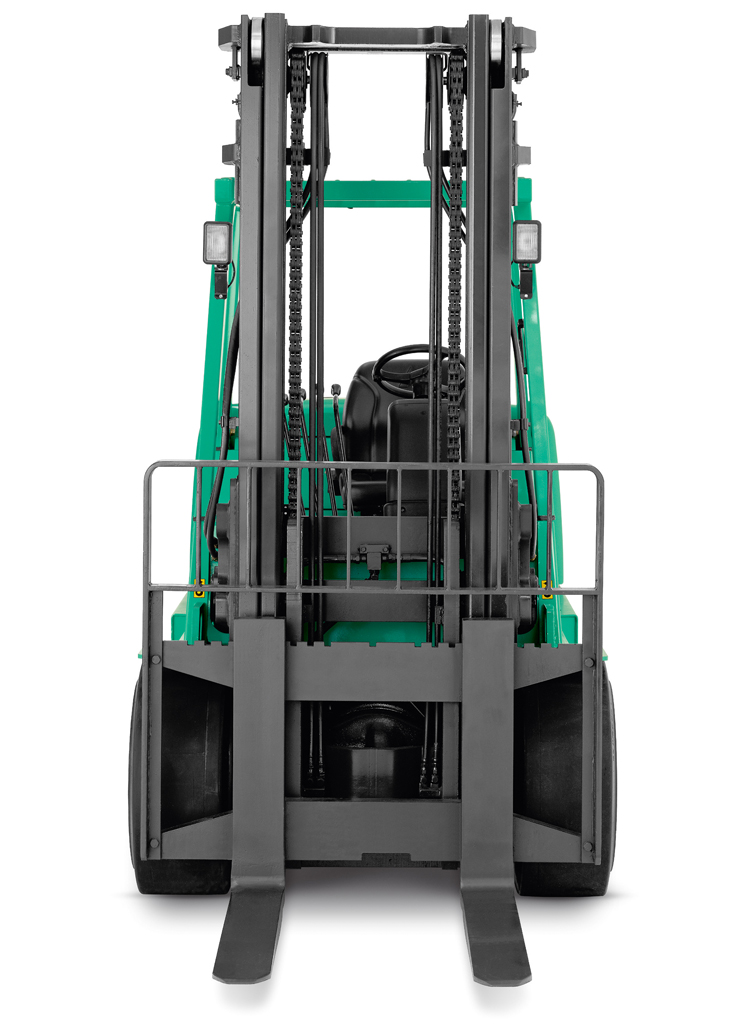

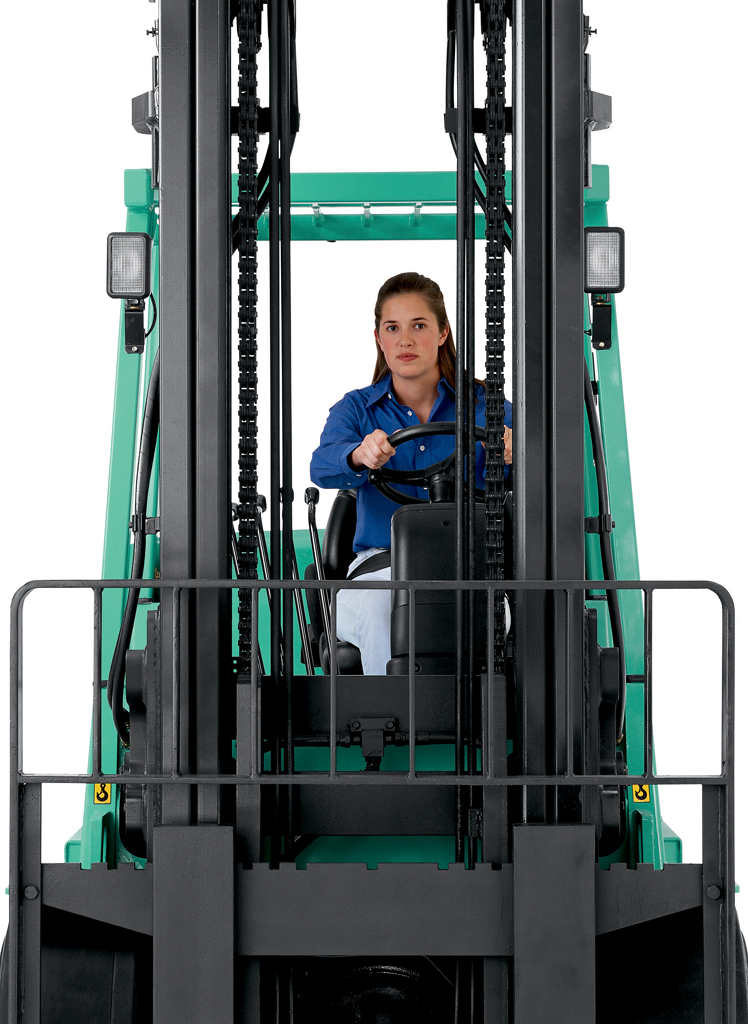

• Clear-view construction allows maximum visibility through mast, fork carriage and overhead guard - for maximum operator safety and output.

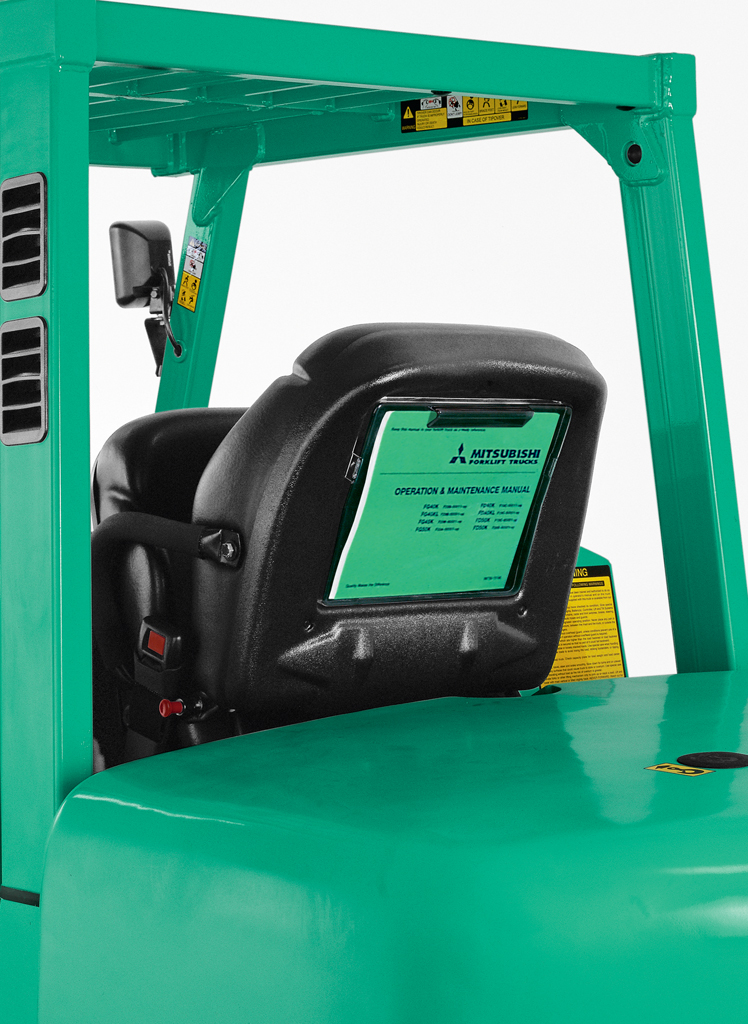

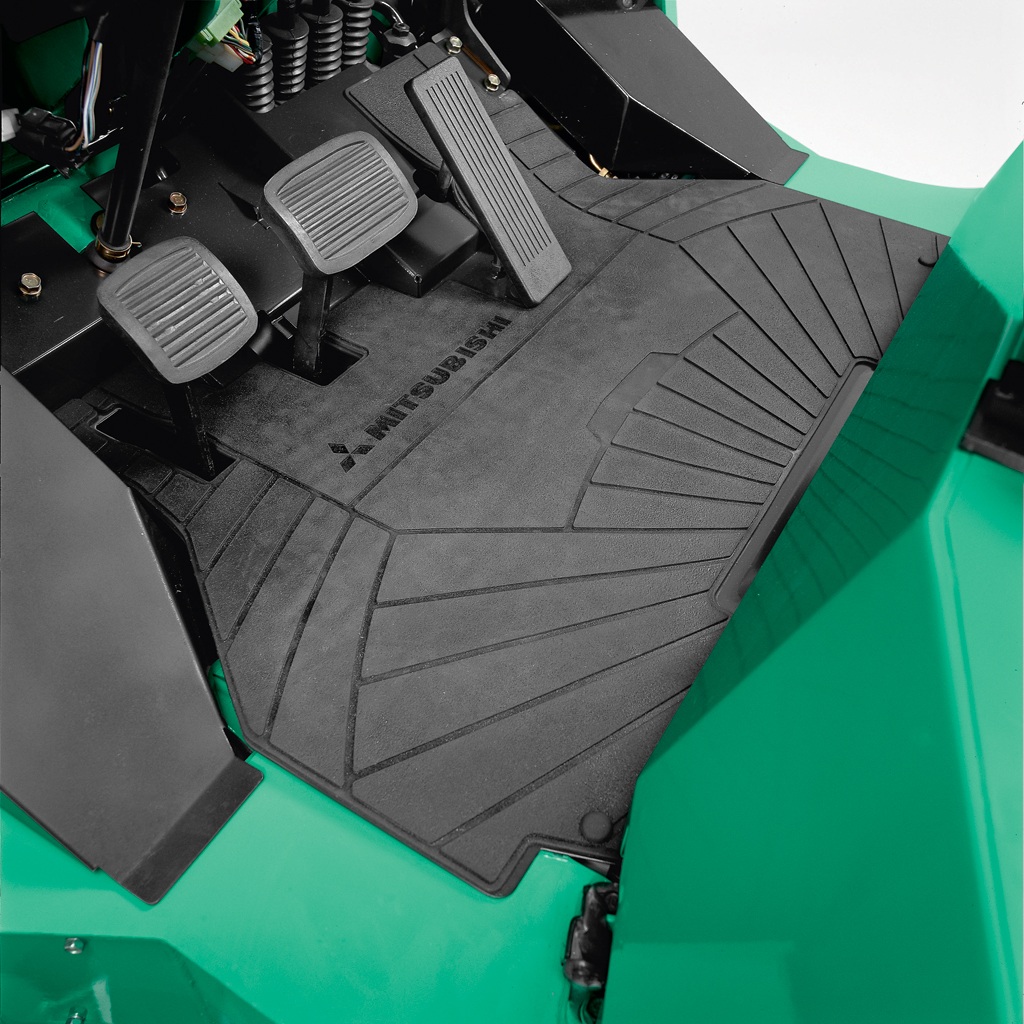

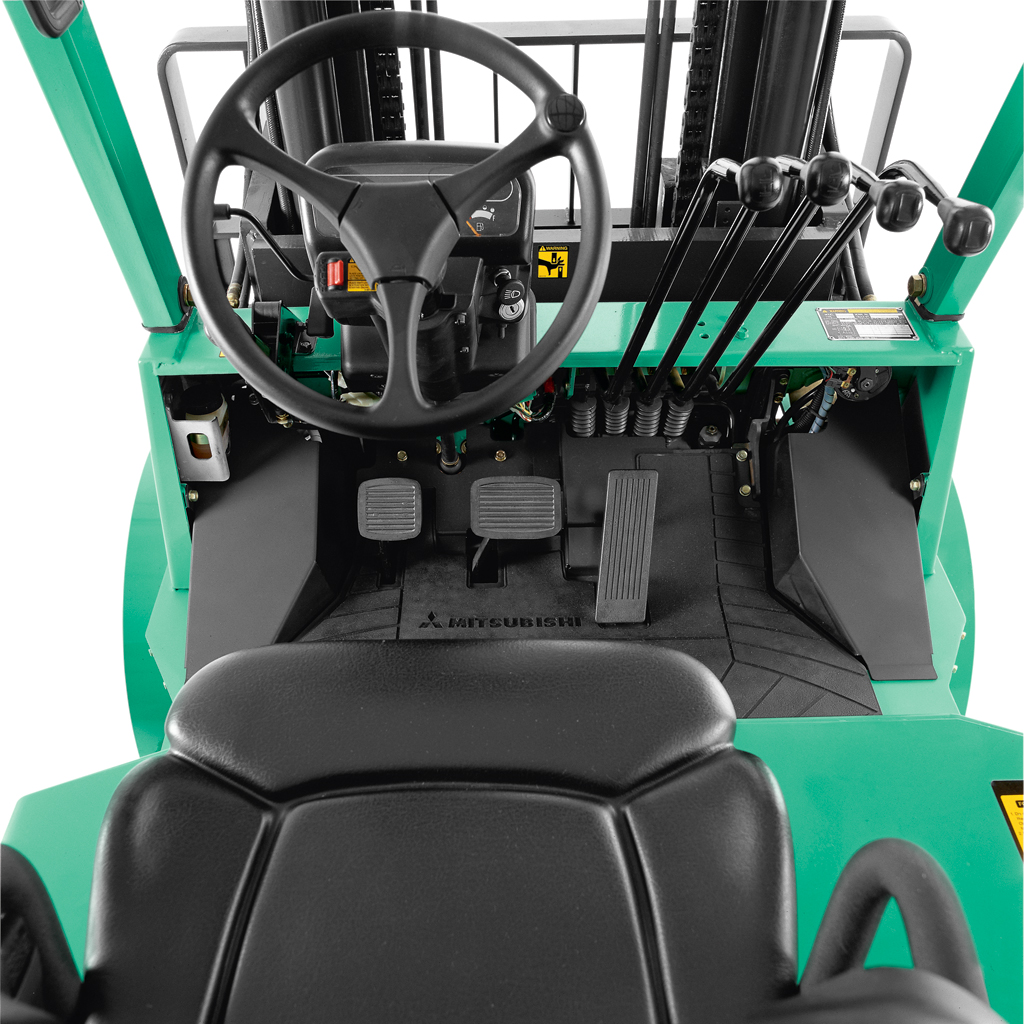

• Market-leading ergonomic design results in easy on-off access, user-friendly controls, a practical layout and great all-round visibility - for maximum precision and productivity.

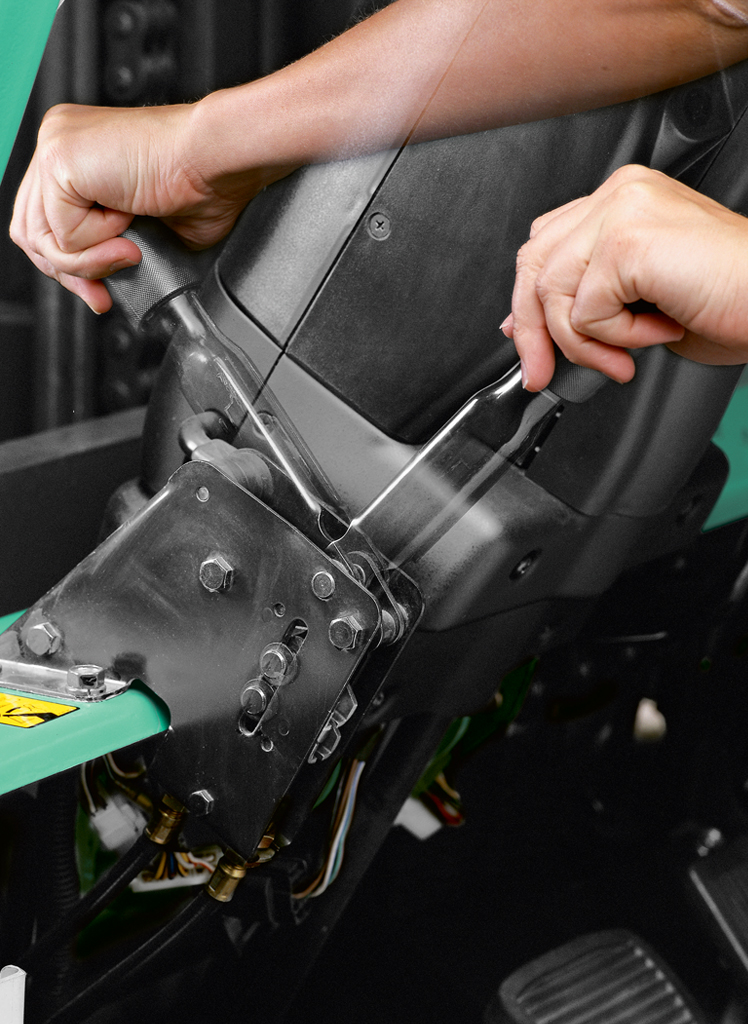

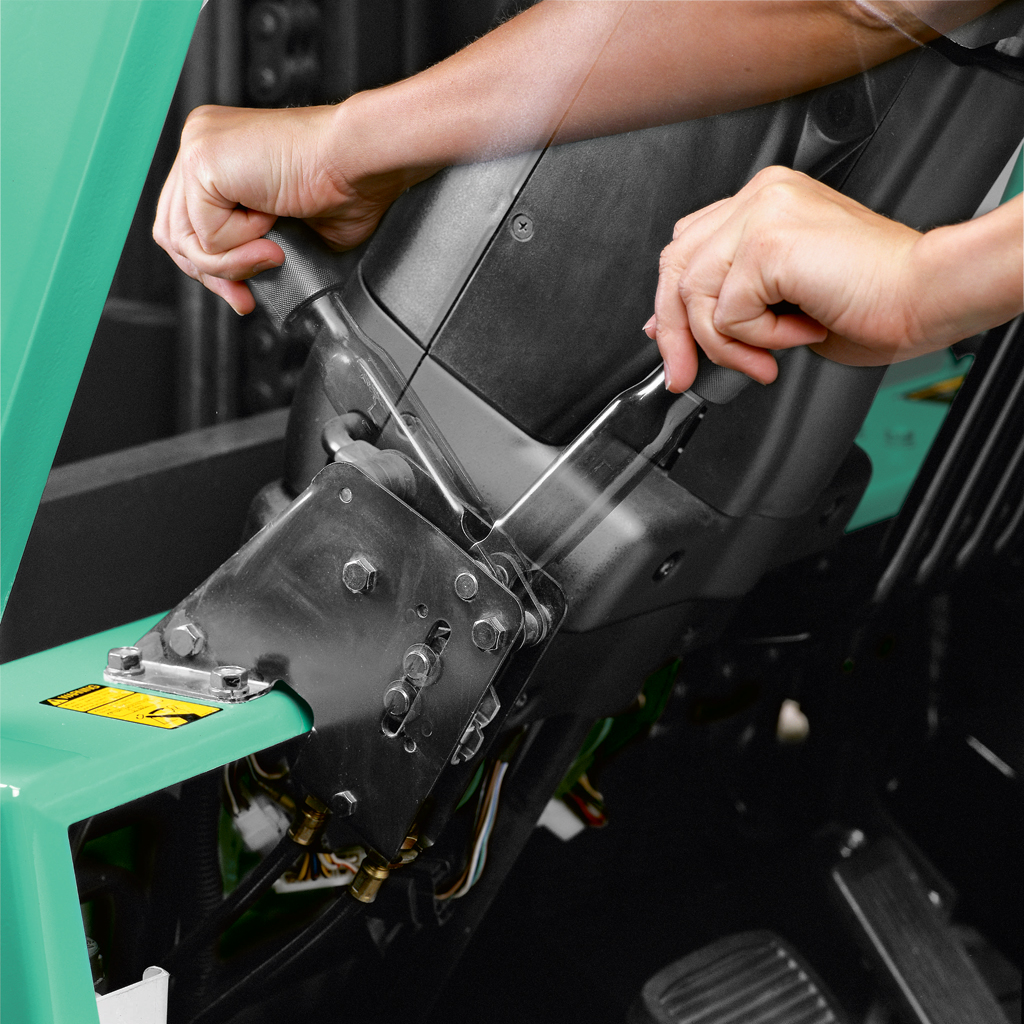

• Adjustable steering column with unique, time-saving memory function helps guarantee optimum driving position, every time, and - together with open-step frame and grab bar - allows easy on-off access.

• Fully hydrostatic steering with small and responsive steering wheel ensures precise, effortless manoeuvring.

• Short-throw hydraulic levers give easy, precise control of mast operations.

• Seat switch disengages drive function if operator leaves the normal seated position.

• Heavy duty masts Clear-view construction

• Lead-filled counterweights add extra man­oeuvr­abil­ity by allowing reduction in truck length (FGC40K STC, FGC55 STC and FGC70K STC).

Brakes

• Vacuum-boosted brake system provides true proportional braking for enhanced operator control.

• Reserve vacuum helps boost braking in the event of an unexpected engine stall or shutdown.

Drive

• Advanced LPG engine with engine management system and 3-way catalytic converter delivers precisely controlled performance, high fuel economy and low emissions.

Electrical and control systems

• Seat switch disengages drive function if operator leaves the normal seated position.

Frame and body

• Lead-filled counterweights add extra man­oeuvr­abil­ity by allowing reduction in truck length (FGC40K STC, FGC55 STC and FGC70K STC).

• Advanced frame and overhead guard design results in an unusually low centre of gravity, great stability, high productivity and optimum driver protection.

Hydraulics

• Powerful hydraulic system offers high residual capacities for comfortable handling of heavy loads.

Mast and fork assembly

• Heavy duty masts Clear-view construction

• Clear-view construction allows maximum visibility through mast, fork carriage and overhead guard - for maximum operator safety and output.

Operator compartment and controls

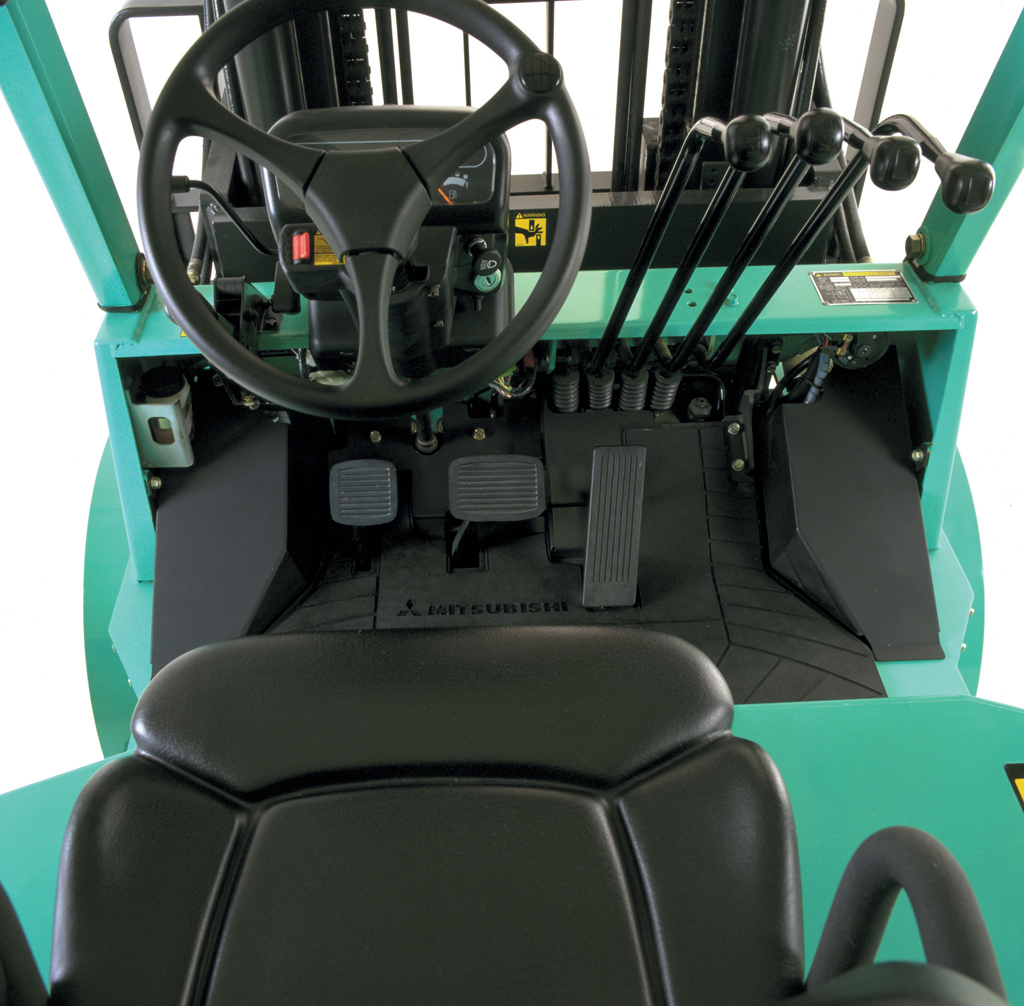

• Market-leading ergonomic design results in easy on-off access, user-friendly controls, a practical layout and great all-round visibility - for maximum precision and productivity.

• Adjustable steering column with unique, time-saving memory function helps guarantee optimum driving position, every time, and - together with open-step frame and grab bar - allows easy on-off access.

• Short-throw hydraulic levers give easy, precise control of mast operations.

Steering system

• Fully hydrostatic steering with small and responsive steering wheel ensures precise, effortless manoeuvring.

• Heavy duty boxed construction protects steering cylinder from rough surfaces and debris.

• Tapered roller bearings support steer knuckles in axle housing, reducing maintenance and greatly improving durability.

Other features

• RapidAccess features give unequalled ease of entry to all areas for checks and maintenance.

Options include

• Travel speed limitation

• Foot-operated directional control

• Non-marking tyres

• Dustproof kit for hydraulic tank and pump

• Rear-view mirror

Key Specifications

			FGC35K	FGC40K	FGC40K STC	FGC45K SWB	FGC45K STC	FGC55K	FGC55K STC	FGC60K	FGC70K	FGC70K STC
Cha­rac­ter­ist­ics
Manufacturer’s model designation			FGC35K	FGC40K	FGC40K STC	FGC45K SWB	FGC45K STC	FGC55K	FGC55K STC	FGC60K	FGC70K	FGC70K STC
Power source: (battery, diesel, LP gas, petrol)			LP Gas	LP Gas	LP Gas	LP Gas	LP Gas	LP Gas	LP Gas	LP Gas	LP Gas	LP Gas
Operator type: pedestrian, (operator)-standing, -seated			Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Load capacity	Q	(kg)	3500	4000	4000	4500	4500	5500	5500	6000	7000	7000
Load centre distance	c	(mm)	500	500	500	600	600	600	600	600	600	600
Load distance, axle to fork face (forks lowered)	x	(mm)	450	450	450	465	465	480	480	530	530	530
Wheelbase	y	(mm)	1575	1575	1575	1575	1575	1780	1780	1830	1830	1830
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	5240	5570	5655	6470	6510	7190	7550	8760	9480	9920
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	7670 / 1030	8440 / 1160	8310 / 930	9520 / 1480	9755 / 1250	11260 / 1140	11435 / 1535	13040 / 1760	14590 / 1910	15000 / 2030
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	2050 / 3150	2025 / 3575	2240 / 3370	1925 / 4575	2080 / 4385	2425 / 4775	2665 / 4865	3300 / 5500	3300 / 6200	3600 / 6400
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			V / V	V / V	V / V	V / V	V / V	V / V	V / V	V / V	V / V	V / V
Tyre dimensions, front			22x9x16	22x9x16	22x9x16	22x9x16	22x9x16	22x12x16	22x12x16	28x12x22	28x12x22	28x12x22
Tyre dimensions, rear			18x7x12.1	18x7x12.1	18x7x12.1	18x7x12.1	18x7x12.1	18x8x12.1	18x8x12.1	22x8x16	22x8x16	22 x 8 x 16
Number of wheels, front/rear (x=driven)			2x / 2	2x / 2	2x / 2	2x / 2	2x / 2	2x / 2	2x / 2	2x / 2	2x / 2	2x / 2
Track width (centre of tyres), front	b10	(mm)	940	940	940	940	940	1015	1015	1130	1130	1130
Track width (centre of tyres), rear	b11	(mm)	980	980	980	980	980	965	965	1160	1160	1160
Dimensions
Mast tilt, forwards/backwards	a/b	°	5 / 10	5 / 10	5 / 10	5 / 10	5 / 10	5 / 10	5 / 10	6 / 9	6 / 9	6 / 9
Overall length	l1	(mm)	3730	3770	3630	3840	3715	4130	3875	4170	4170	3950
Height with mast lowered (see tables)	h1	(mm)	2120	2120	2120	2120	2120	2120	2120	2150	2150	2150
Length to fork face (includes fork thickness)	l2	(mm)	2510	2550	2411	2620	2496	2910	2655	2950	2950	2730
Overall width	b1/b2	(mm)	1180	1180	1180	1180	1180	1320	1320	1440	1440	1440
Fork dimensions (thickness, width, length)	s,e,l	(mm)	50 x 150 x 1220	50 x 150 x 1220	50 x 150 x 1220	50 x 150 x 1220	50 x 150 x 1220	60 x 150 x 1220	60 x 150 x 1220	65 x 150 x 1220	65 x 150 x 1220	65 x 150 x 1220
Fork carriage to DIN 15 173 A/B/no			3A	3A	3A	3A	3A	4A	4A	4A	4A	4A
Fork carriage width	b3	(mm)	1125	1125	1125	1125	1125	1125	1125	1295	1295	1295
Free lift (see tables)	h2	(mm)	100	150	150	160	160	160	160	165	165	165
Ground clearance under mast, with load	m1	(mm)	100	100	100	100	100	100	100	100	100	100
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	150	150	150	150	150	150	150	200	200	200
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	3885	3935	3741	4005	3899	4230	4030	4300	4300	4200
Working aisle width with 800 x1200 mm pallets, crosswise	Ast	(mm)	3685	3735	3541	3805	3699	4030	3830	4100	4100	4000
Turning circle radius	Wa	(mm)	2235	2285	2091	2340	2234	2550	2350	2570	2570	2470
Lift height (see tables)	h3	(mm)	3000	3000	3000	2850	2850	2840	2840	2295	2295	2295
Overall height with mast raised	h4	(mm)	4270	4270	4270	4120	4120	4120	4120	3580	3580	3580
Height to top of overhead guard	h6	(mm)	2205	2205	2205	2205	2205	2205	2205	2255	2255	2255
Seat height	h7	(mm)	1200	1200	1200	1200	1200	1200	1200	1285	1285	1285
Performance
Travel speed, with/without load		km/h	19.0 / 19.5	19.0 / 19.5	19.0 / 19.5	18.5 / 19.5	18.5 / 19.5	18.5 / 19.5	18.0 / 19.5	21.0 / 23.0	20.5 / 23.0	20.5 / 22.5
Service brakes (mechanical/hydraulic/electric/pneumatic)			Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Lifting speed, with/without load		m/s	0.54 / 0.57	0.54 / 0.57	0.54 / 0.57	0.39 / 0.42	0.39 / 0.42	0.39 / 0.42	0.39 / 0.42	0.36 / 0.39	0.36 / 0.39	0.36 / 0.39
Lowering speed, with/without load		m/s	0.55 / 0.50	0.55 / 0.50	0.55 / 0.50	0.44 / 0.41	0.44 / 0.41	0.44 / 0.41	0.44 / 0.41	0.54 / 0.39	0.54 / 0.39	0.54 / 0.39
Gradeability, with/without load		%	37.0	33.0	32.0	27	27	22.5	22.0	24.5	21.5	20.5
Maximum gradeability, with/without load		s	42 / 24	37 / 21	36 / 21	30 / 17	30 / 17	26.0 / 20.0	25.0 / 21.0	30.0 / 22.0	27.0 / 20.5	26.0 / 21.0
IC Engine
Manufacturer / Type			69	GM V6	GM V6	GM V6	GM V6	GM V6	GM V6	GM V6	GM V6	GM V6
Rated output to ISO 1585		kW	2450	69	69	69	69	69	69	69	69	69
Rated speed to DIN 70 020		rpm	4300	2450	2450	2450	2450	2450	2450	2450	2450	2450
Number of cylinders / cubic capacity		/cm3		4300	4300	4300	4300	4300	4300	4300	4300	4300
Miscellaneous
Type of drive control			Powershift	Powershift	Powershift	Powershift	Powershift	Powershift	Powershift	Powershift	Powershift	Powershift
Maximum operating pressure for attachments		bar	155	155	155	155	155	155	155	155	155	155
Oil flow for attachments		l/min	95	95	95	95	95	95	95	115	115	115
Noise level, value at operator’s ear (EN 12053)		dB(A)	83.5	83.5	83.5	83.5	83.5	83.5	83.5	83.5	83.5	83.5
Towing coupling design / DIN type, ref.			Pin	Pin	Pin	Pin	Pin	Pin	Pin	Pin	Pin	Pin
