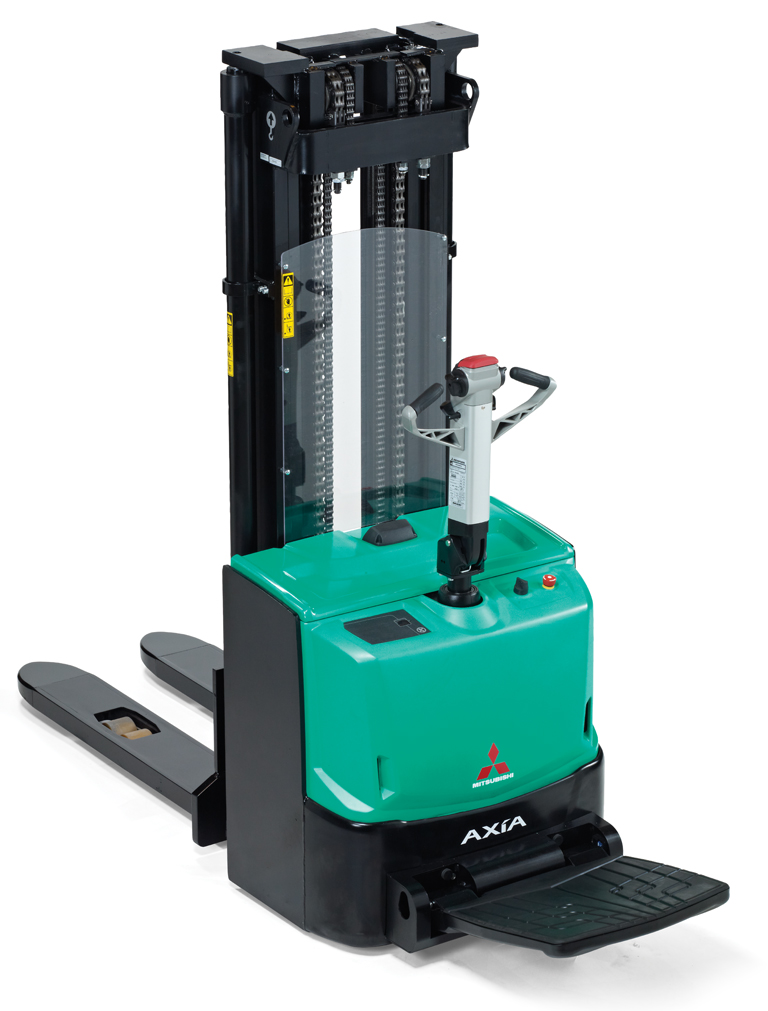

Big performance... even in the smallest spaces

Pedestrian Stacker / 1 - 1.6  tonnes

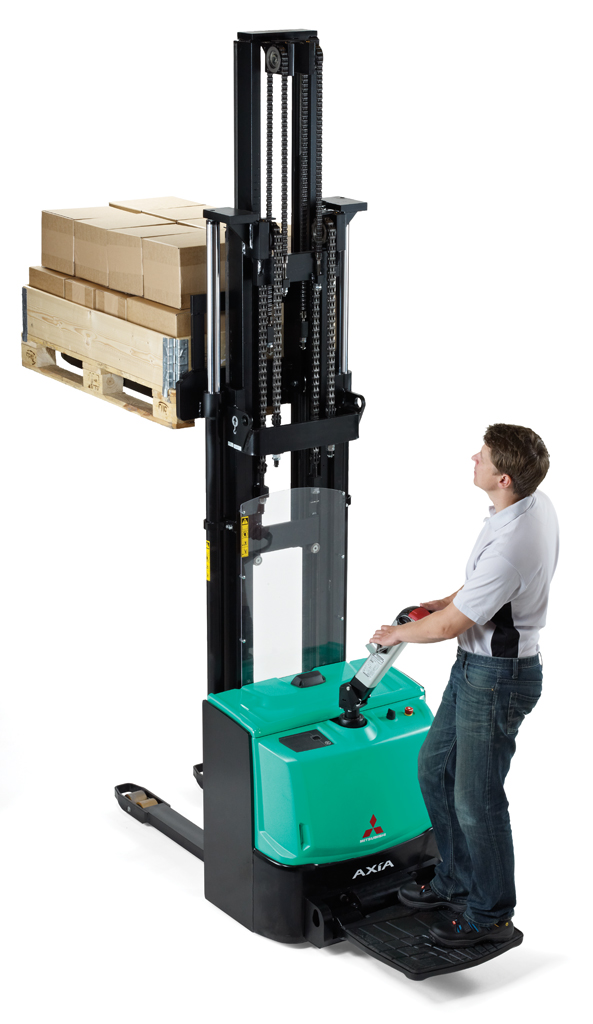

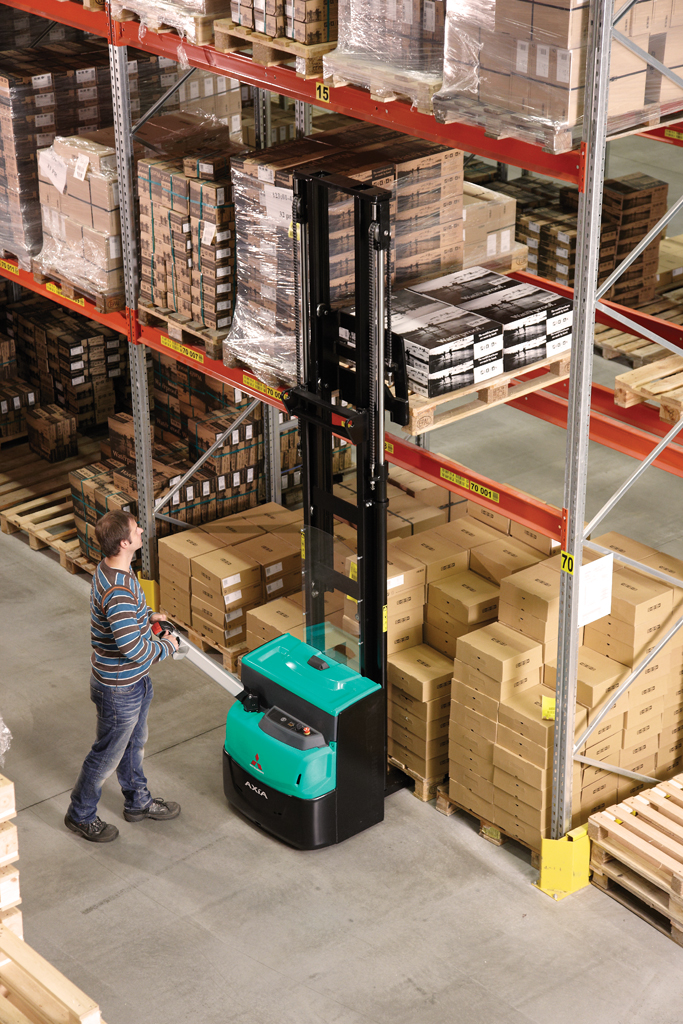

Compact, easy to use and highly versatile, AXIA ES stackers have been developed to deliver exceptional productivity in every setting. An ergonomic tiller arm and extremely compact powerhead, coupled with a very narrow chassis and outstanding visibility, ensure excellent man­oeuvr­abil­ity in tight spaces, such as on board road vehicles or in block stacking.

The stackers are offered with lifting capacities of 1.0, 1.2, 1.4 or 1.6 tonnes. All AXIA ES models feature a state-of-the-art tiller arm, designed to protect hands while placing everything within easy reach – for safe, comfortable and controlled operation. For operation on ramps and uneven floors, initial lift (i) models are the best choice. A straddle leg version, SBP16N2S, is available for handling bottom-boarded pallets up to a width of 1200 mm. Foldable platforms for occasional ride-on use are available on the 1.2 to 1.6 tonne stackers.

Model	Load Capacity
SBP10N2	1000 kg
SBP12N2(i)	1200 kg
SBP14N2(i)	1400 kg
SBP16N2(i)	1600 kg
SBP12N2(i)R	1200 kg
SBP14N2(i)R	1400 kg
SBP16N2(i)R	1600 kg
SBP16N2S	1600 kg
SBP16N2SR	1600 kg

Key Features

Brakes

• Parking brake is automatically activated, when necessary, for extra safety on ramps.

• Regenerative braking gives effective control, without brake wear, and extends shift life.

Drive

• Powerful AC drive motor  gives excellent traction and ramp performance, as well as smooth, quiet, controlled operation, extended shift length and lower maintenance requirements.

• Oil-filled, sealed transmission is shock-resistant, quiet and requires little maintenance.

Electrical and control systems

• High-efficiency electronic system features waterproof components for maximum reliability – even in moist conditions.

• Programmable controller adjusts acceleration, travel speed and braking to suit the application and operator – for greater versatility.

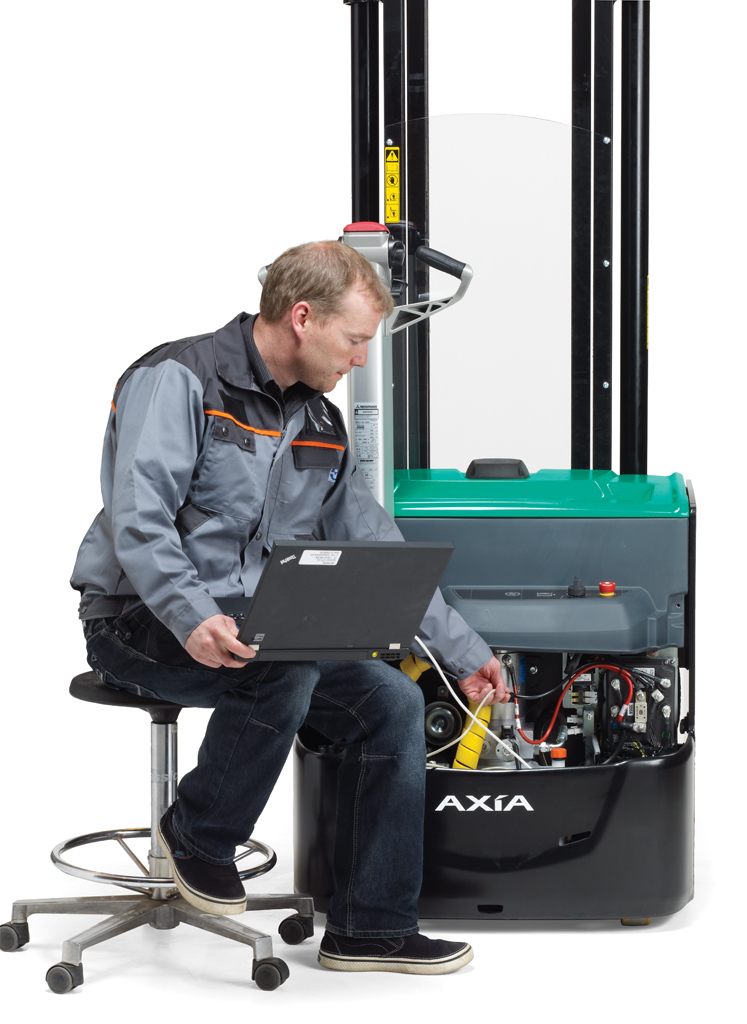

• On-board diagnostics and fault memory folder speed up servicing and help prevent damage.

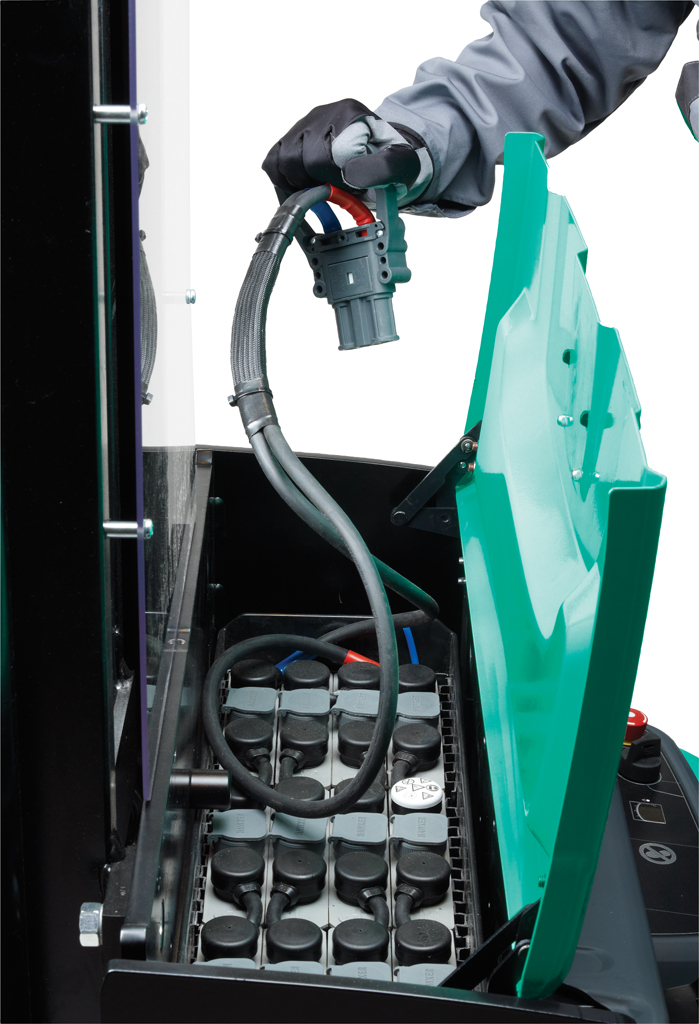

• Versatile battery compartment accommodates DIN and BS size batteries with a variety of capacities for maximum compatibility with user’s equipment and needs.

Frame and body

• Low centre of gravity stability, for safe operation.

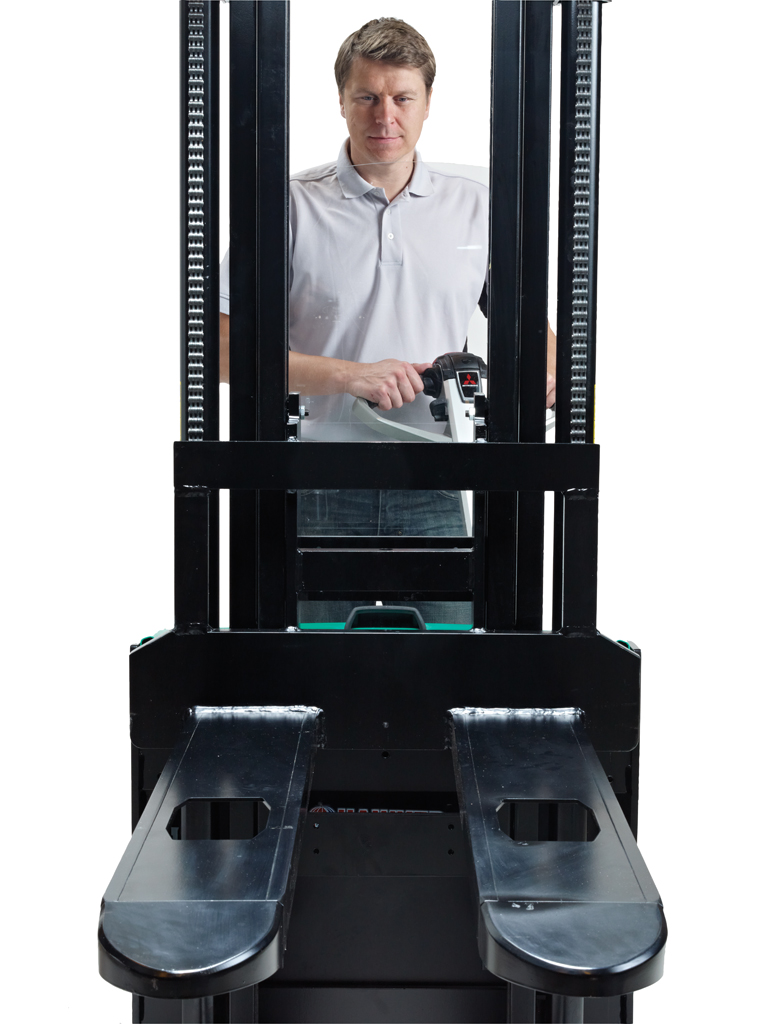

• High-visibility design maximises view of fork tips and working area.

• Sealed chassis offers protection against dirt, dust and other particles to reduce wear.

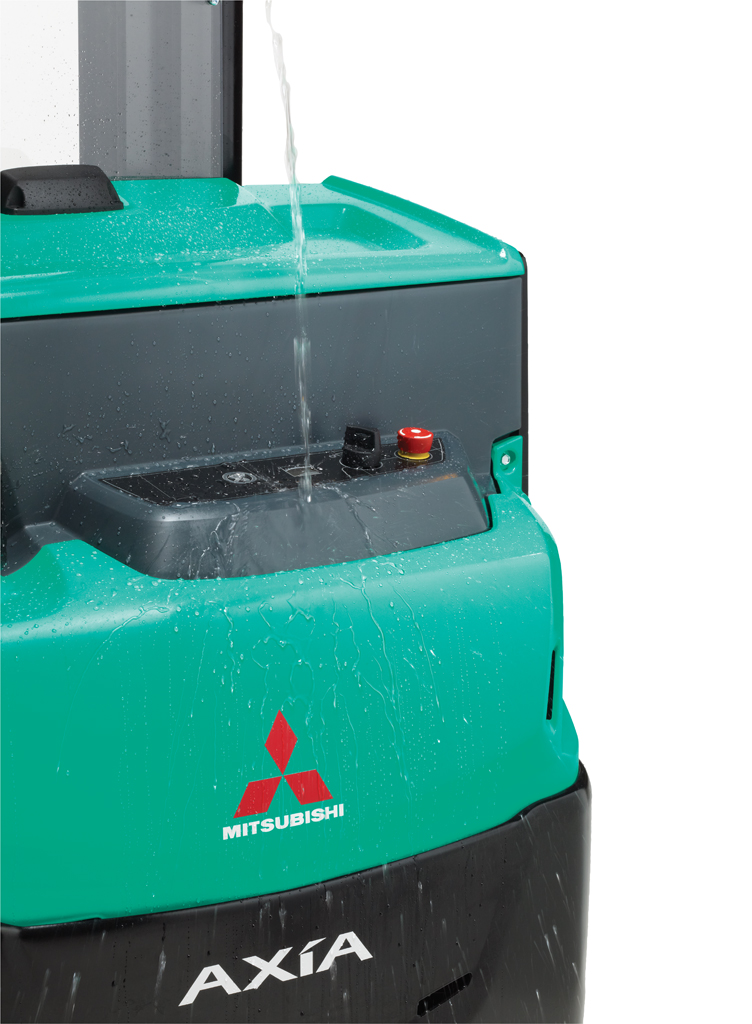

• Water-resistant design diverts splashed moisture away from key electrical components, for long truck life.

Mast and fork assembly

• Robust forks with welded construction, and rounded tips for effortless pallet entry, give extra strength and durability.

• Straddle leg version allows adjustment of distance between support legs to suit pallet width (SBP16N2S only).

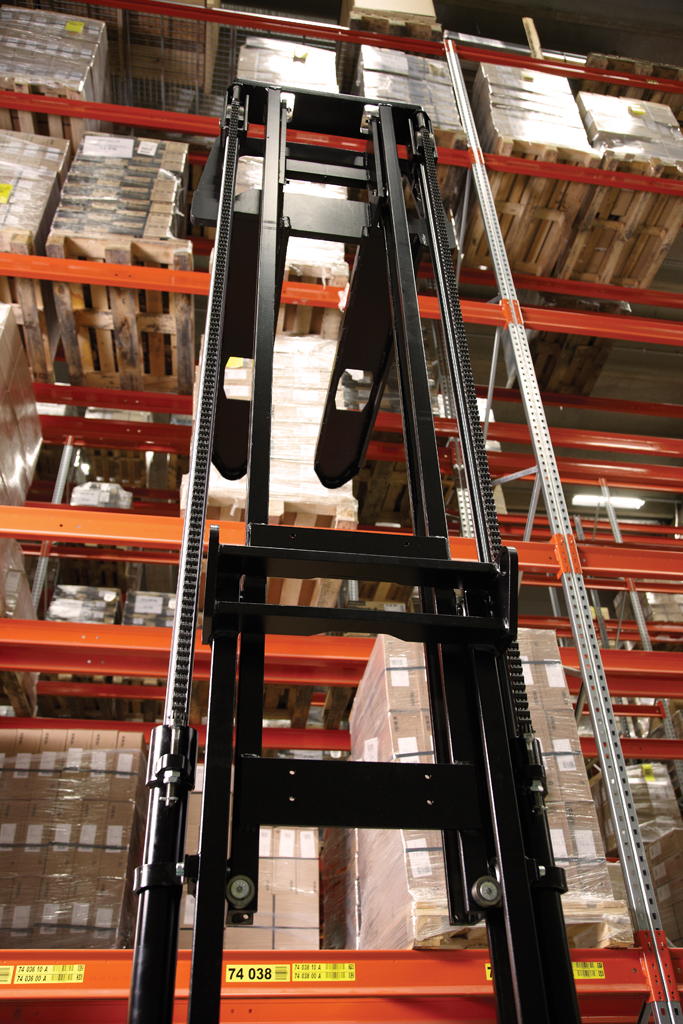

• Wide range of lift heights and mast types includes triplex masts on 1.2 to 1.6 tonne models and a choice between standard or free lift masts.

Operator environment and controls

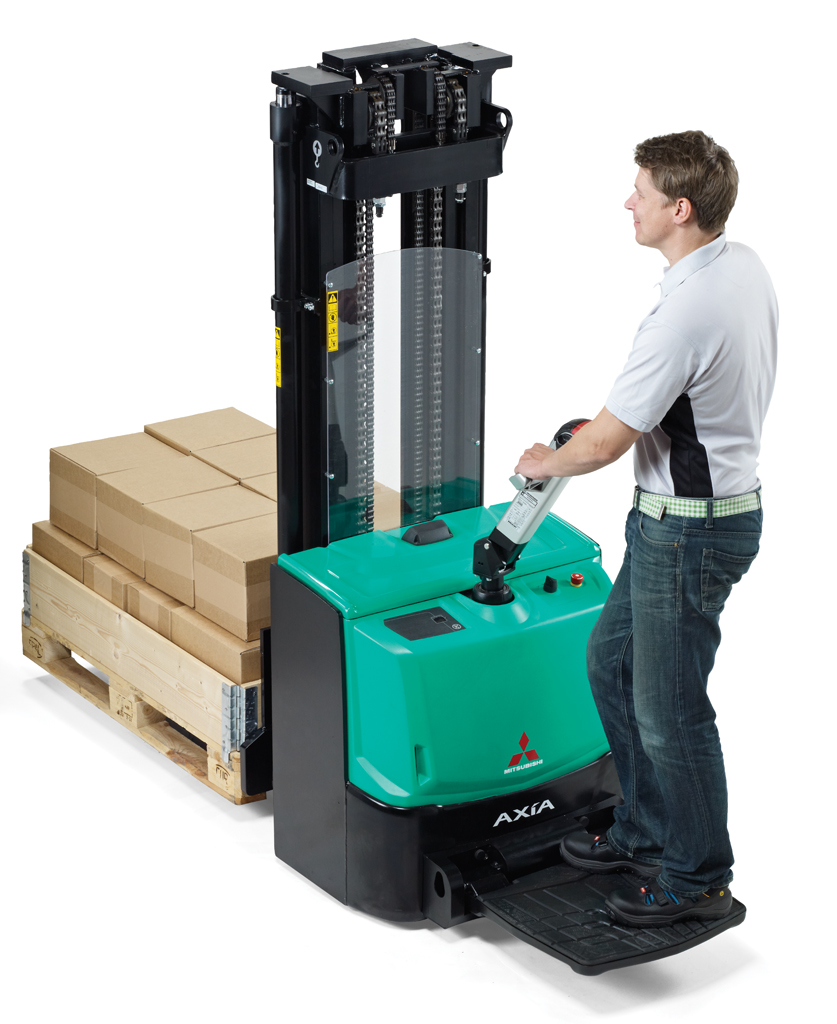

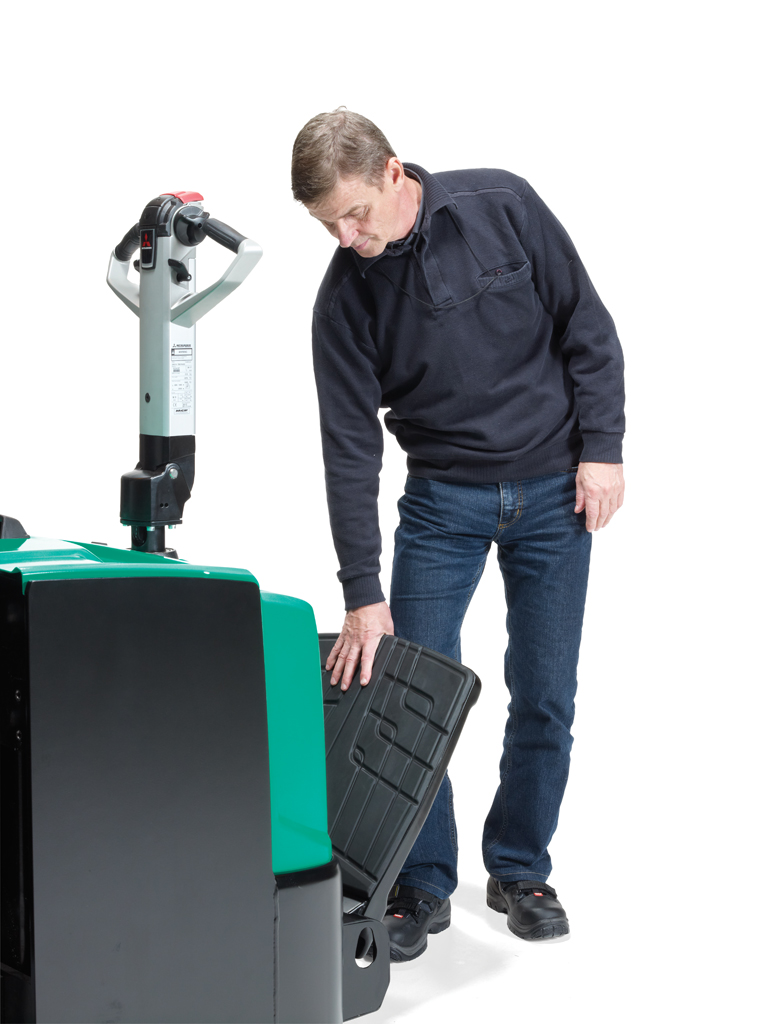

• Spacious, suspended foldable platform allows operator to ride in comfort – maximum speed 6 km/h – during occasional longer travel (R models only).

• Choice of two performance modes via key switch enhances safety, energy efficiency and productivity.

• Creep speed function and tiller arm lock bypass maximise safety and control in confined spaces.

• Unique crossbar design deflects obstacles away from tiller arm and operator’s hand, protecting both truck and operator.

• Easy-to-operate controls reduce operator fatigue and minimise mistakes to enhance safety.

• Ergonomic levers allow operators to raise and lower loads with ease – even when wearing gloves.

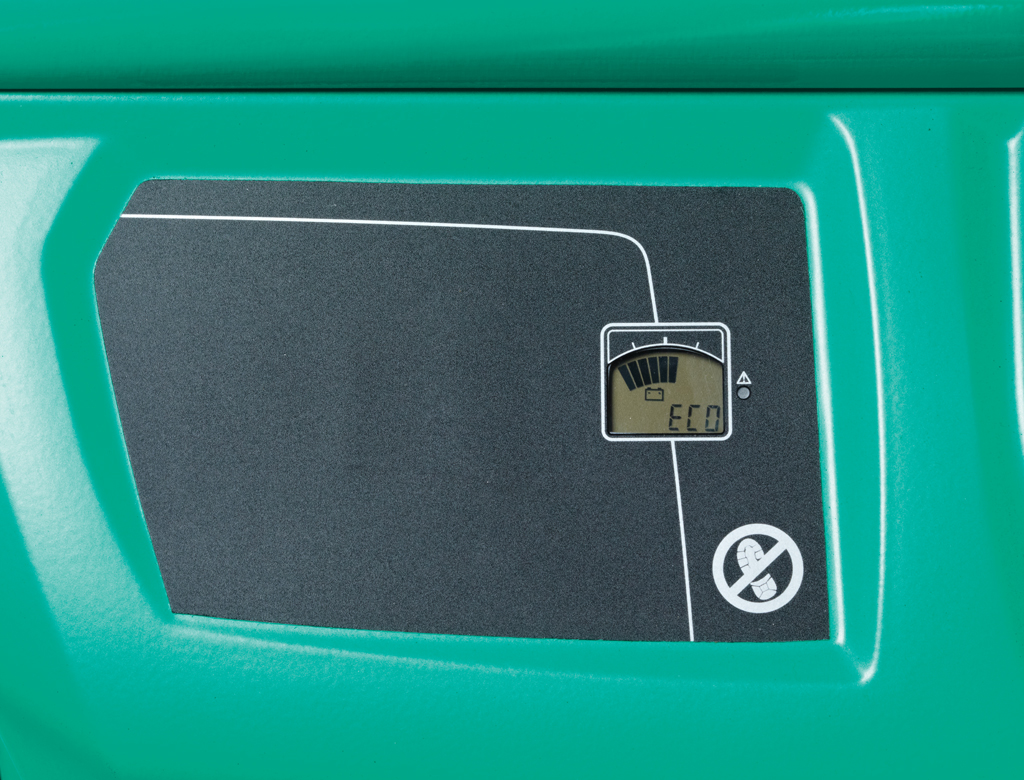

• Battery discharge indicator is fitted as standard for battery protection and monitoring of truck use.

• Ground clearance only 20 mm – which makes foot trapping very unlikely.

Steering system

• Small turning circle together with compact chassis and excellent visibility means exceptional man­oeuvr­abil­ity.

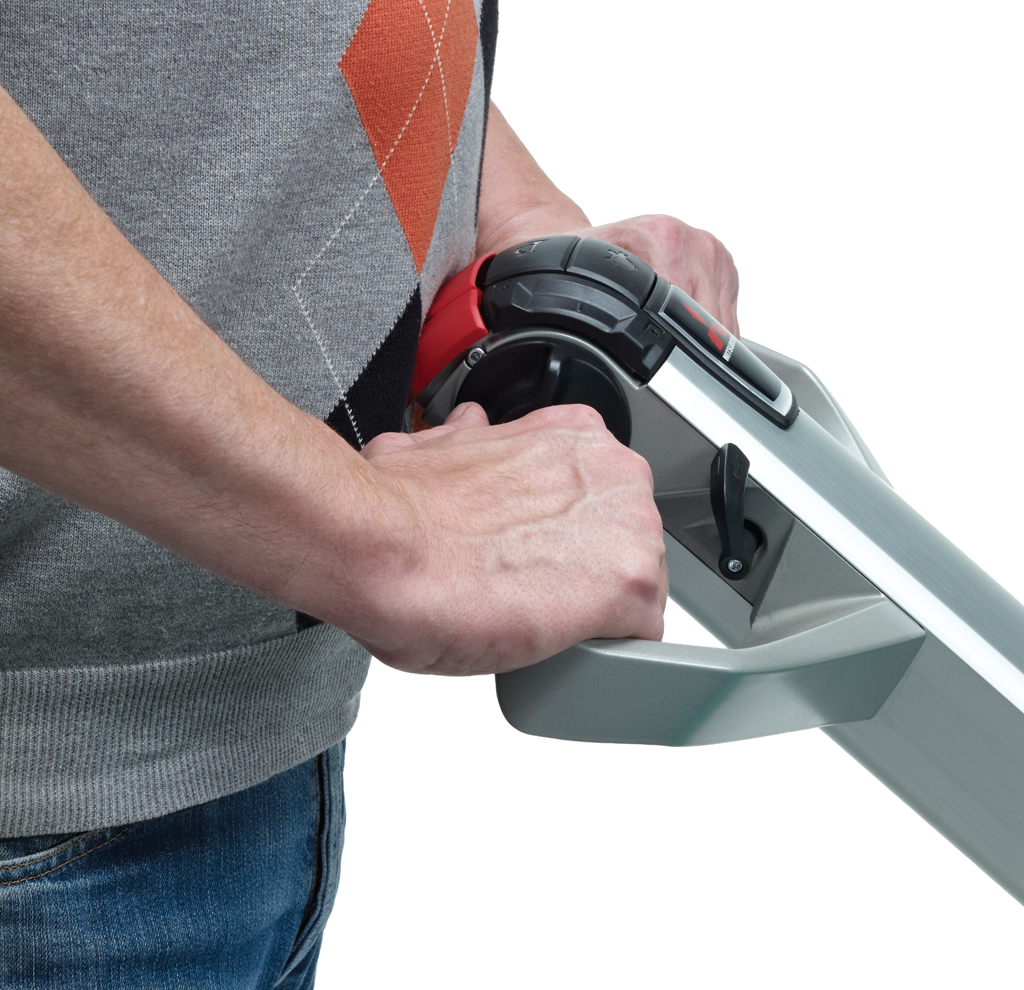

• State-of-the-art tiller arm offers the ultimate in ergonomic design, comfort and safety.

Options include

• Choice of drive and load wheels for different applications

• Load backrest

• Wide variety of fork dimensions

• Battery changing device

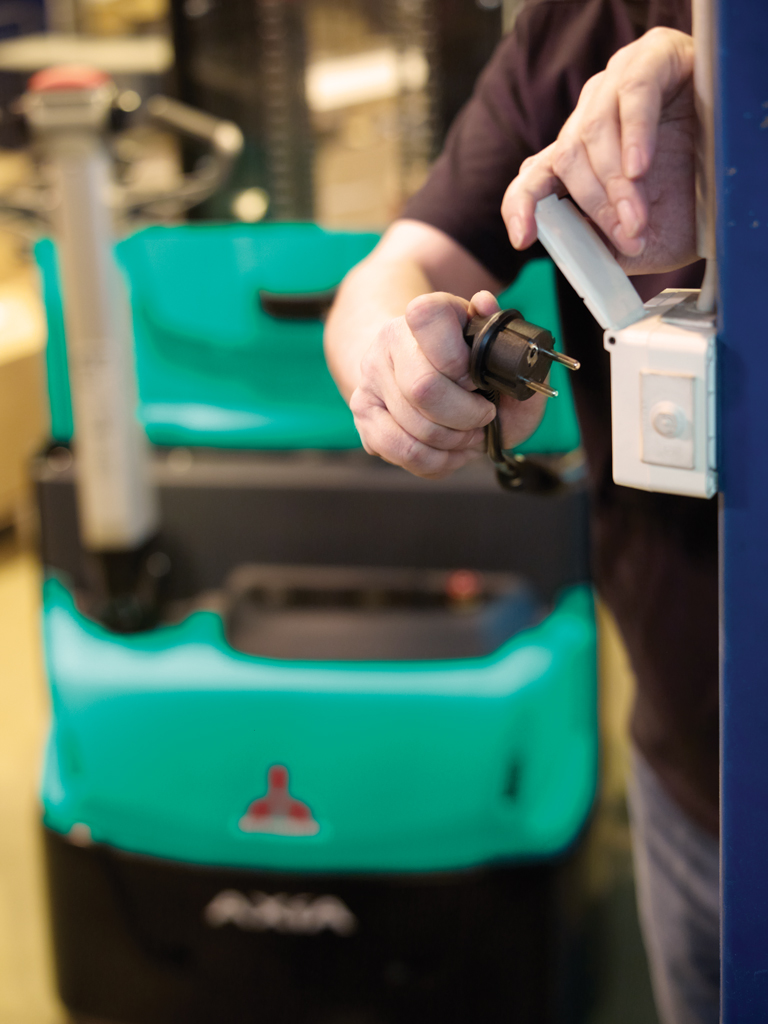

• Sealed inbuilt charger

• PIN code pad

• Cold store modification (class III, -35°C)

• Multifunctional display with hour meter

• Equipment bar for mounting accessories (on most models)

• Space for 375 Ah battery
