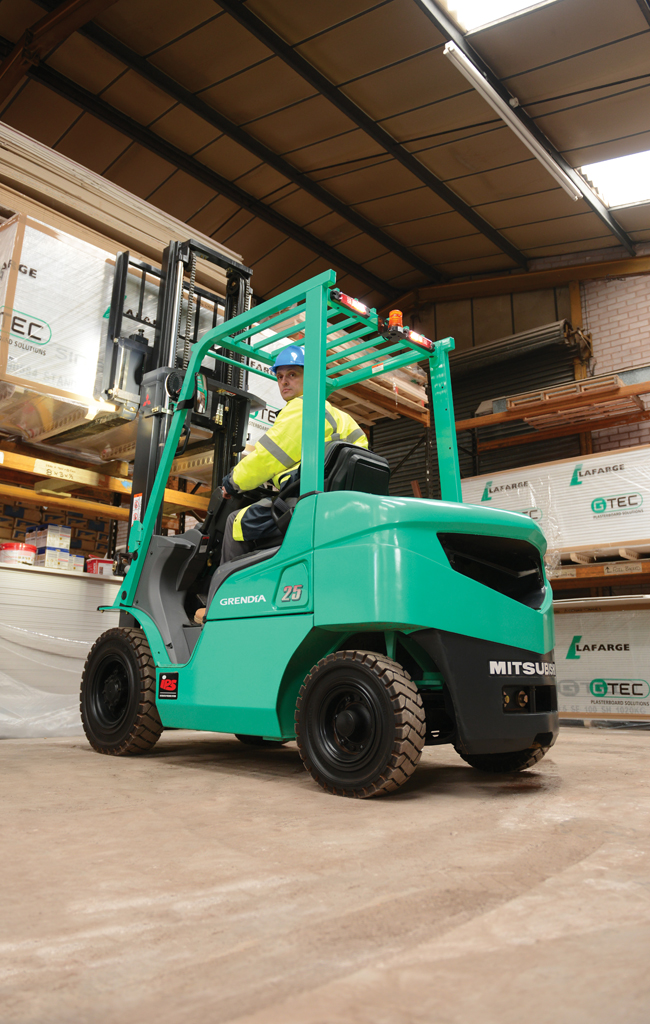

Diesel Counterbalance 4 Wheel Pneumatic Tyres 1.5 - 3.5 tonnes

Developed to help your operator achieve maximum productivity, GRENDIA sets the highest of standards for IC engine counterbalance forklift trucks. No other forklift truck includes so many advanced features in its standard specification. That's why GRENDIA is such unbeatable value for money. What's more, its durable components, low-maintenance design and fuel economy will continue to keep down the cost of forklift ownership, year after year.

The name GRENDIA means 'Green Diamond': green for environmental protection; diamond for high quality, reliability and sound investments. Fast, stable and exceptionally powerful, GRENDIA forklift trucks offer a potent combination of high efficiency, low emissions and very low noise levels. To that, Mitsubishi has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions.

Model	Load Capacity
FD15N	1500 kg
FD18N	1750 kg
FD20CN	2000 kg
FD20N	2000 kg
FD25N	2500 kg
FD30N	3000 kg
FD35N	3500 kg

Key Features

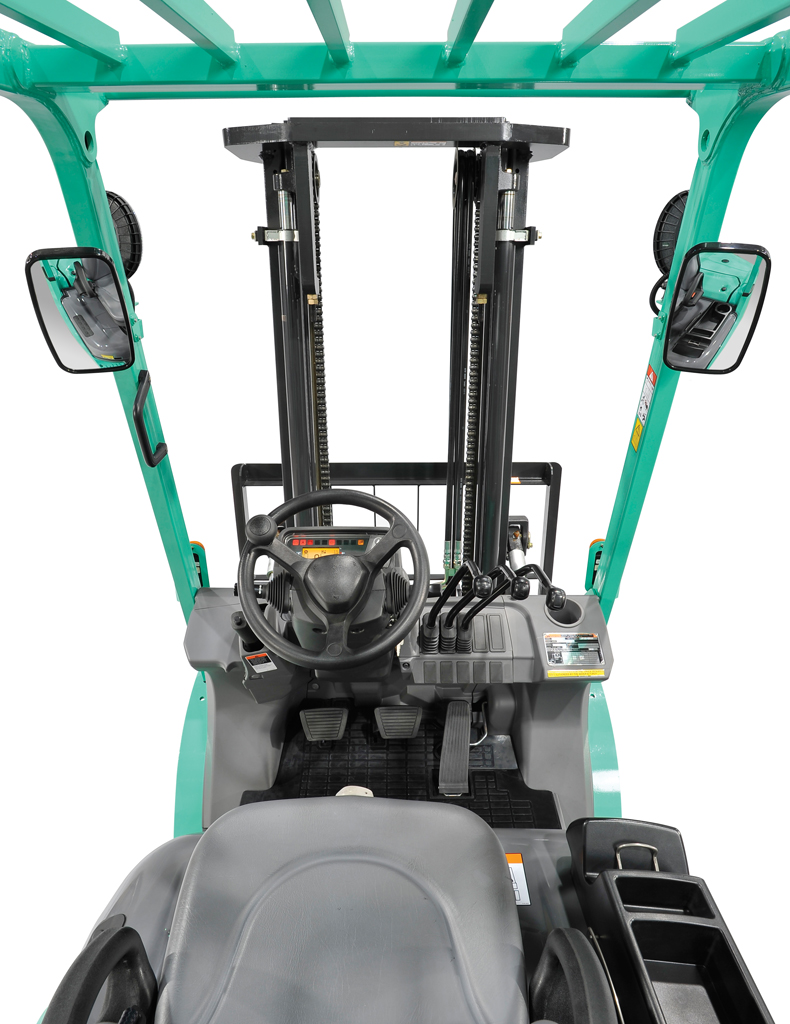

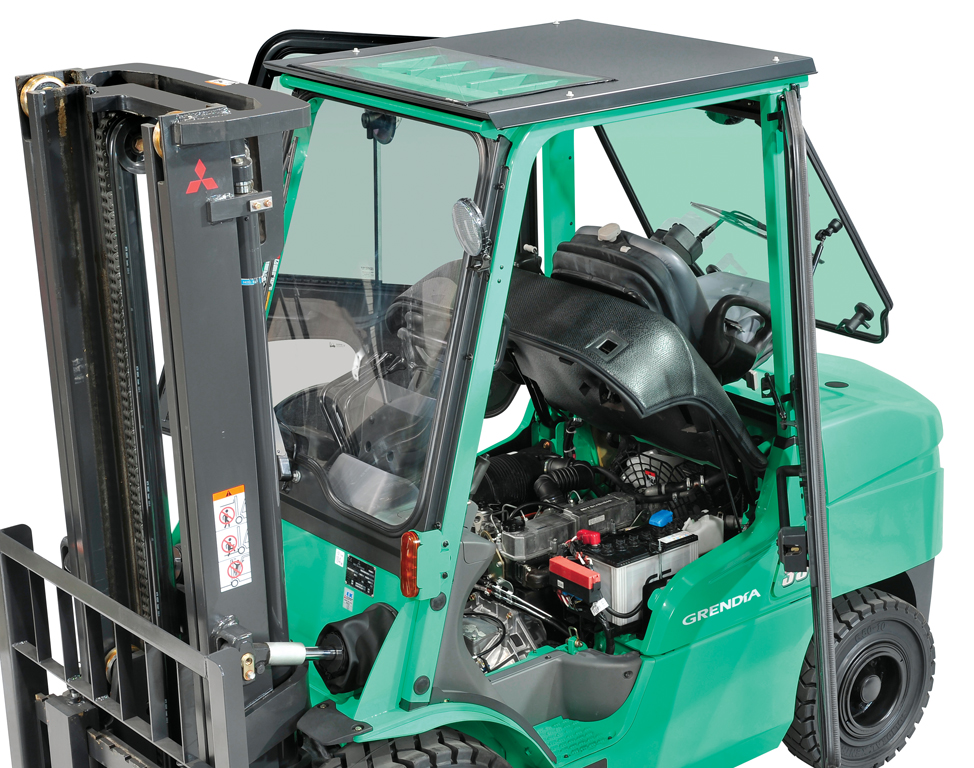

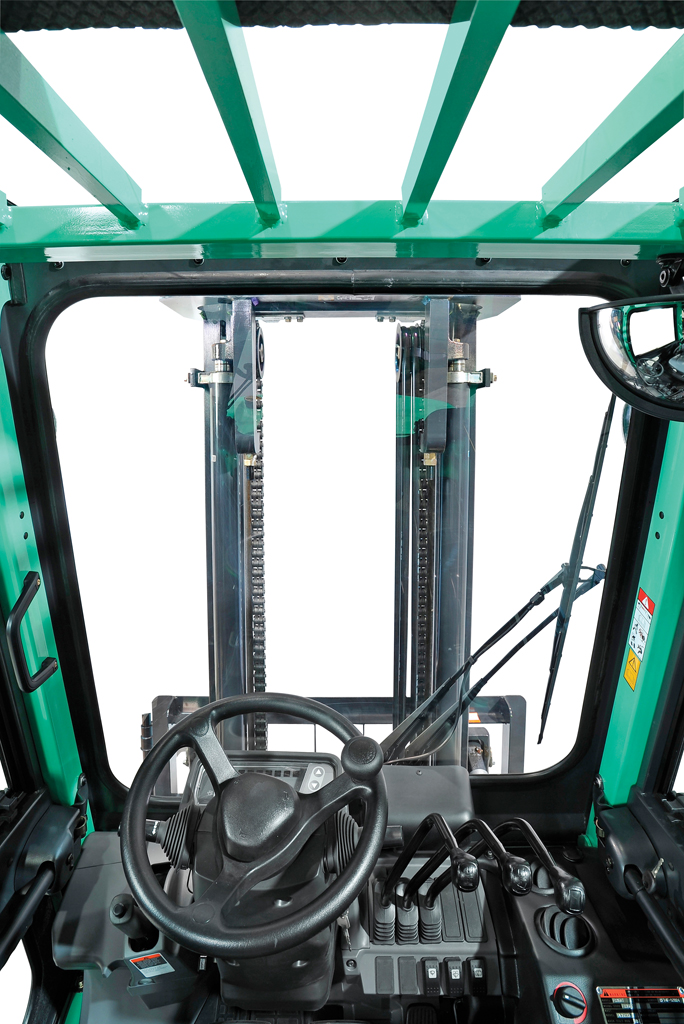

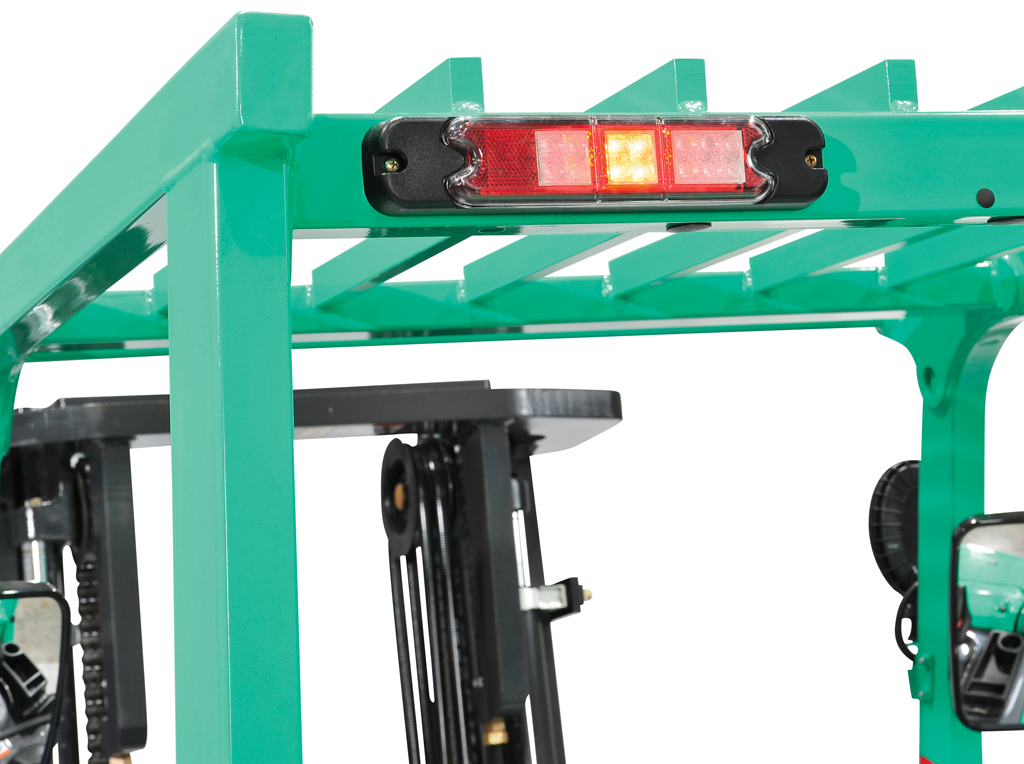

• Unique design of clear-view mast and fork carriage, headguard and specially angled counterweight delivers tremendous all-round visibility.

• Quiet engine, smooth transmission, fully floating powertrain and effective insulation reduce noise and vibration - preventing fatigue and boosting efficiency.

• Separate brake and inching valve for perfect driveability.

• Ins­trum­ent­at­ion tilts with column for high visibility.

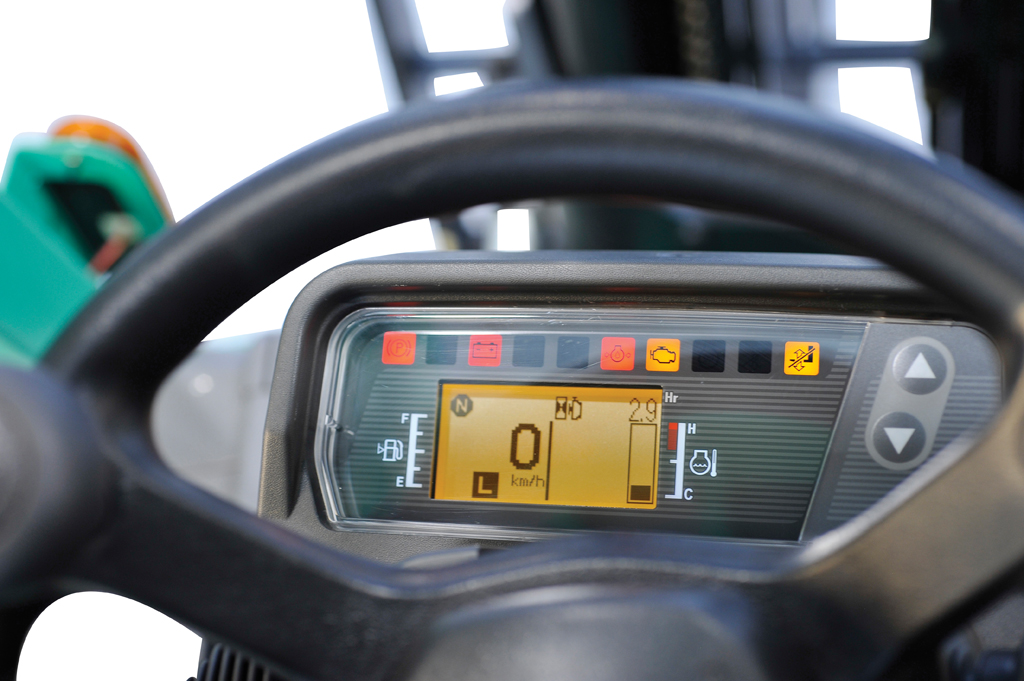

• Generous, automotive-style display panel provides unrivalled driver information.

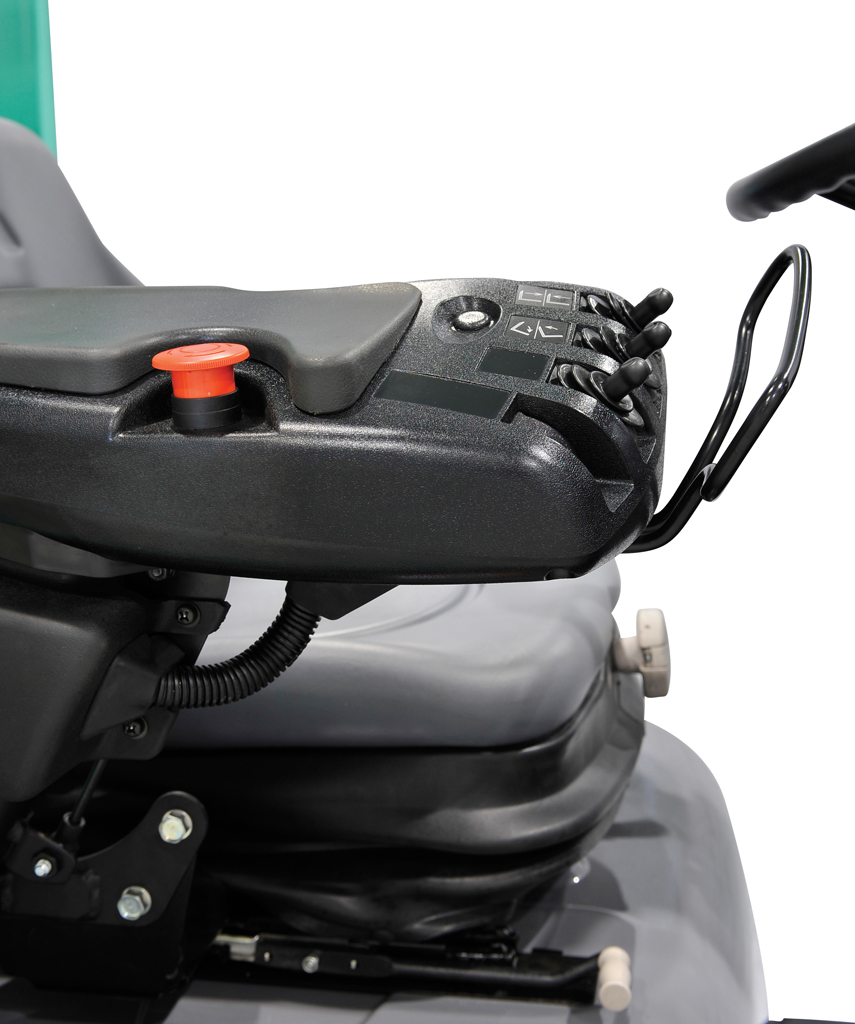

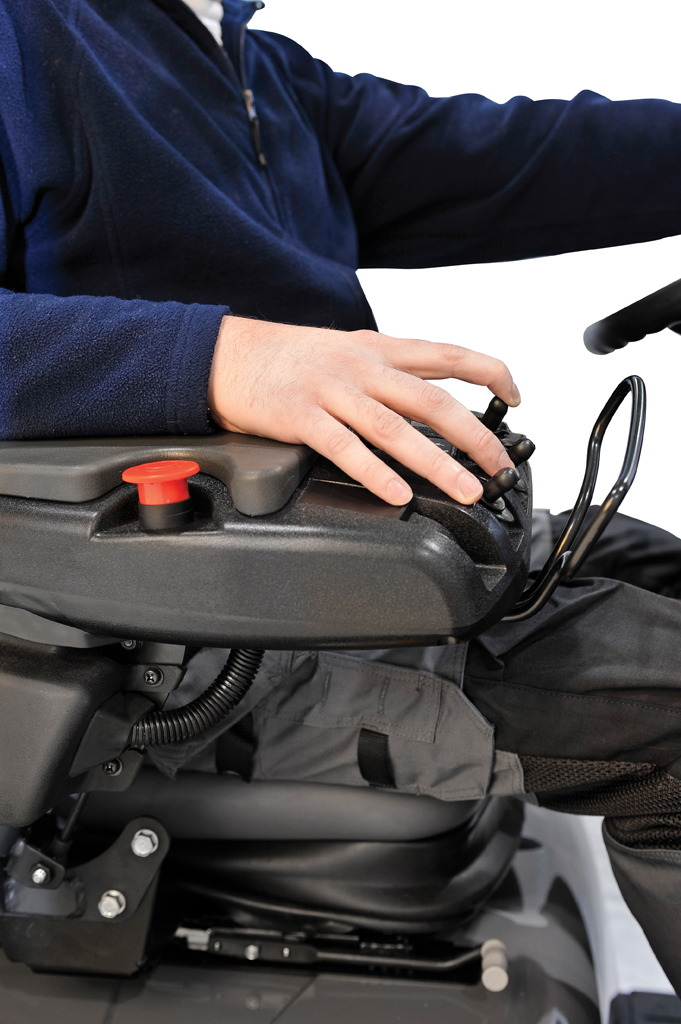

• Hydraulic levers in an arc - for easy reach (with optional fingertip control setting new standards for precise and effortless operation).

• Self-levelling mast option allows fast, safe operation with reduced risk of product damage.

• Distributor-type fuel injection pump  reduces noise at idling speeds, black smoke at startup, overall emissions and fuel consumption.

Brakes

• Wide entry, with non-slip step and grab handle, gives easy access from both sides

Drive

• Separate brake and inching valve for perfect driveability.

• Unique design of clear-view mast and fork carriage, headguard and specially angled counterweight delivers tremendous all-round visibility.

• Quiet engine, smooth transmission, fully floating powertrain and effective insulation reduce noise and vibration - preventing fatigue and boosting efficiency.

Electrical and control systems

• Compact, responsive steering wheel makes manoeuvring precise and controlled.

• Ins­trum­ent­at­ion tilts with column for high visibility.

• Generous, automotive-style display panel provides unrivalled driver information.

Frame and body

• Self-levelling mast option allows fast, safe operation with reduced risk of product damage.

Hydraulics

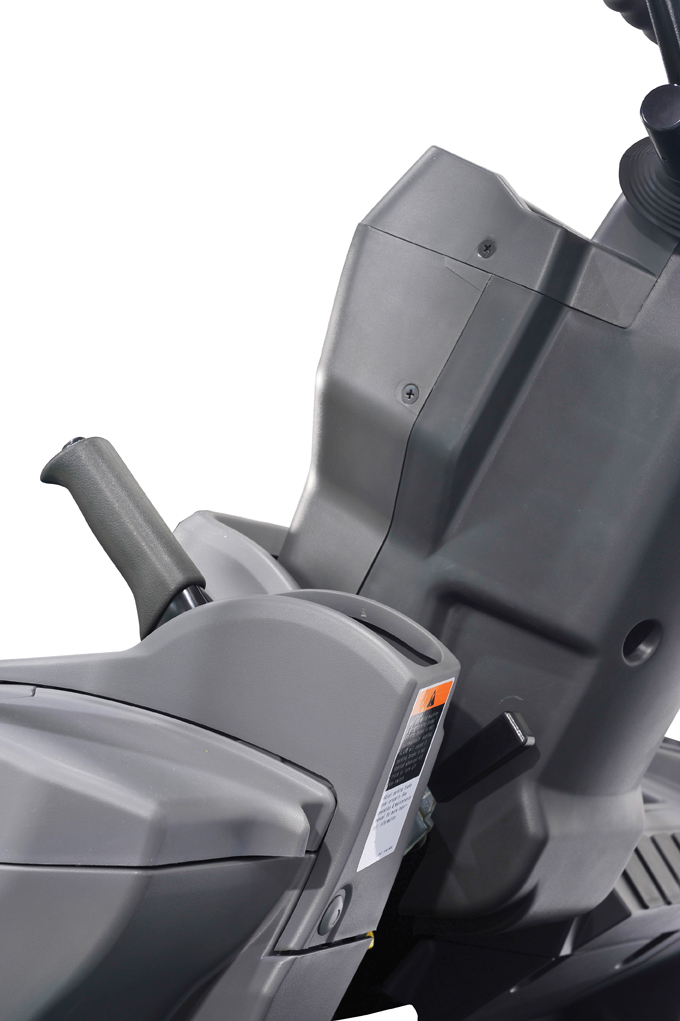

• Infinitely adjustable steering column with positional memory ensures the perfect driver set-up - every time.

Mast and fork assembly

• Hydraulic levers in an arc - for easy reach (with optional fingertip control setting new standards for precise and effortless operation).

Operator compartment and controls

• Torque converter and accumulator valve make operation exceptionally smooth.

• Fully floating powertrain and axles minimise noise and vibration, spreading stresses and prolonging component life.

• Distributor-type fuel injection pump  reduces noise at idling speeds, black smoke at startup, overall emissions and fuel consumption.

• Fuel filter with inbuilt sediment trap  ensures every drop of fuel is free from dirt and water, for engine protection.

• Totally adjustable, full-suspension seat keeps driver comfortable and alert through the longest of shifts.

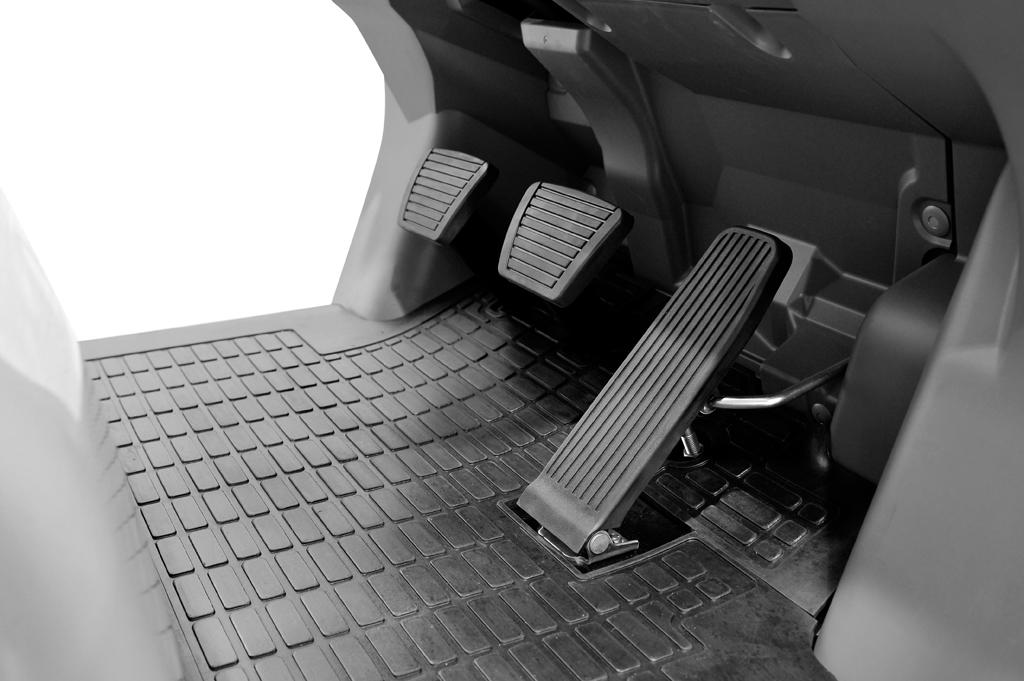

• Easy-to-operate pedals mean good control without leg strain.

• Conveniently positioned directional lever is ideal for high throughput in short shuttle applications.

Steering system

• Self-energising drum brakes require minimum effort.

Other features

• Pre-combustion chamber allows each cylinder to work at peak efficiency, regardless of load or speed, ensuring complete burning.

• High-strength, strut-type pistons  expand to fit the cylinder perfectly, reducing oil consumption and maintaining power.

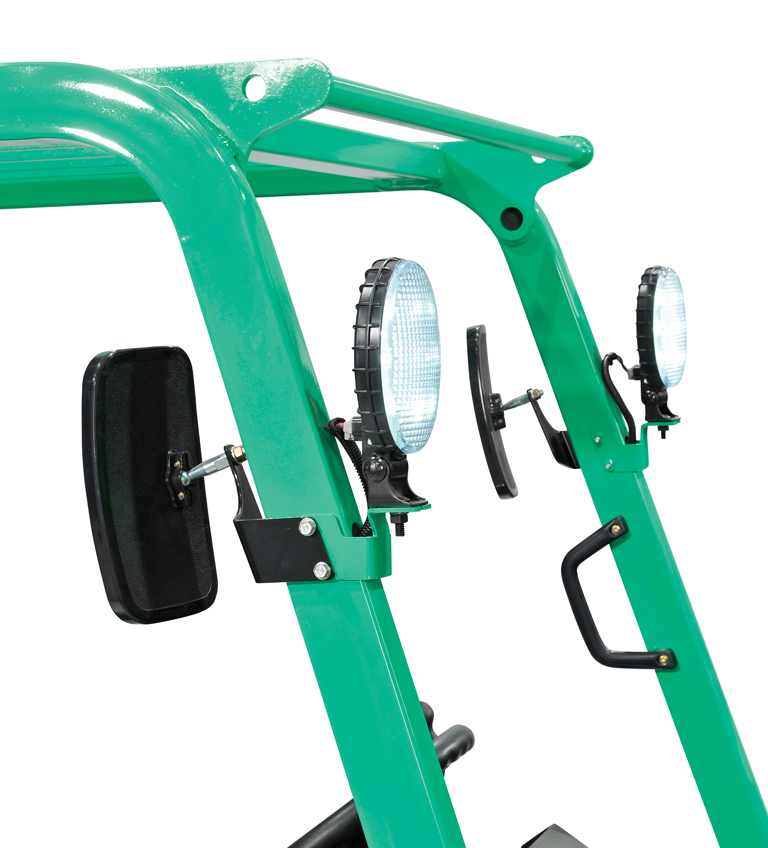

Options include

• Unique cross member mast design gives extra torsion strength and rigidity at maximum lifts.

• Computer-controlled hydraulics, driven by engine's gear train, eliminate need for separate shaft, so reducing components and maintenance.

• Powerful cooling system with horizontal-flow radiator and engine-driven fan increases efficiency and cuts servicing.

• Low centre of gravity gives high stability and greater capacity at higher lifts.

• Single-shaft transmission, with helical gears, improves control and cuts noise and mechanical energy losses - for maximum power.

Key Specifications

Cha­rac­ter­ist­ics
Manufacturer’s model designation			FD15N	FD18N	FD20CN	FD20N	FD25N	FD30N	FD35N
Power source: (battery, diesel, LP gas, petrol)			Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Operator type: pedestrian, (operator)-standing, -seated			Seated	Seated	Seated	Seated	Seated	Seated	Seated
Load capacity	Q	(kg)	1500	1750	2000	2000	2500	3000	3500
Load centre distance	c	(mm)	500	500	500	500	500	500	500
Load distance, axle to fork face (forks lowered)	x	(mm)	400	400	415	455	455	490	490
Wheelbase	y	(mm)	1400	1400	1400	1600	1600	1700	1700
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	2560	2760	3100	3420	3710	4360	4770
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	3580 / 480	3940/570	4430/670	4690/730	5480/730	6530/830	7270/1000
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	1110 / 1450	1060/1700	1120/1980	1500/1920	1480/2230	1780/2580	1720/3050
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			SE/SE	SE/SE	SE/SE	SE/SE	SE/SE	SE/SE	SE/SE
Tyre dimensions, front			6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15	250-15
Tyre dimensions, rear			5.00-8-8PR	5.00-8-8PR	5.00-8-8PR	6.00-9-10PR	6.00-9-10PR	6.50-10	6.50-10
Number of wheels, front/rear (x=driven)			2x / 2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
Track width (centre of tyres), front	b10	(mm)	890	890	890	960	960	1060	1060
Track width (centre of tyres), rear	b11	(mm)	900	900	900	980	980	980	980
Dimensions
Mast tilt, forwards/backwards	a/b	°	6/10	6/10	6/10	6/10	6/10	6/10	6/10
Tow coupling height	h10	(mm)	n/a	n/a	n/a	n/a	n/a	330	340
Overall length	l1	(mm)	3330	3371	3429	3558	3625	3795	3860
Height with mast lowered (see tables)	h1	(mm)	1995	1995	1995	1995	1995	2165	2300
Length to fork face (includes fork thickness)	l2	(mm)	2260	2301	2359	2488	2555	2725	2790
Overall width	b1/b2	(mm)	1065	1065	1065	1150	1150	1275/1710	1290/1710
Fork dimensions (thickness, width, length)	s,e,l	(mm)	35 x 100 x 1070	35x100x1070	40x110x1070	40x110x1070	40x110x1070	45x125x1070	45x125x1070
Fork carriage to DIN 15 173 A/B/no			2A	2A	2A	2A	2A	3A	3A
Fork carriage width	b3	(mm)	920	920	920	1000	1000	1000	1000
Free lift (see tables)	h2	(mm)	80	80	80	100	100	100	100
Ground clearance under mast, with load	m1	(mm)	110	110	110	115	115	135	150
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	135	135	135	135	135	165	170
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	3550	3580	3637	3855	3885	4070	4130
Working aisle width with 800 x1200 mm pallets, crosswise	Ast	(mm)	3350	3380	3437	3655	3685	3870	3930
Turning circle radius	Wa	(mm)	1950	1980	2022	2200	2230	2380	2440
Minimum distance between centres of rotation	b13	(mm)	n/a	n/a	n/a	n/a	n/a	n.a.	782.4
Lift height (see tables)	h3	(mm)	3000	3000	3000	3000	3000	3270	3300
Overall height with mast raised	h4	(mm)	4045	4045	4045	4045	4045	4330	4360
Height to top of overhead guard	h6	(mm)	2145	2145	2145	2154	2075	2173	2183
Seat height	h7	(mm)	1109	1109	1109	1114	1114	1114	1114
Performance
Travel speed, with/without load		km/h	19 / 19.5	19/19.5	19/19.5	19/19.5	19/19.5	19/19.5	19/19.5
Service brakes (mechanical/hydraulic/electric/pneumatic)			Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Lifting speed, with/without load		m/s	0.60/0.65	0.60/0.65	0.60/0.65	0.64/0.67	0.64/0.67	0.51/0.54	0.43/0.46
Lowering speed, with/without load		m/s	0.52 / 0.50	0.52/0.50	0.50/0.50	0.50/0.50	0.50/0.50	0.53/0.50	0.42/0.40
Rated drawbar pull, with/without load		N	11900 / 11500	11700 / 11500	11400 / 11500	17100/16700	17000/16600	17500 / 17300	15900 / 16000
Gradeability, with/without load		%	31 / -	27/-	24/-	34/-	29/-	25/-	20/-
IC Engine
Manufacturer / Type			S4Q2	S4Q2	S4Q2	S4S	S4S	S4S	S4S
Rated output to ISO 1585		kW	30	30	30	38	38	38	38
Rated speed to DIN 70 020		rpm	2500	2500	2500	2250	2250	2250	2250
Number of cylinders / cubic capacity		/cm3	4/2504	4/2504	4/2504	4/3331	4/3331	4/3331	4/3331
Miscellaneous
Type of drive control			Powershift/1	Powershift/1	Powershift/1	Powershift/1	Powershift/1	Powershift/1	Powershift/1
Maximum operating pressure for attachments		bar	180	180	180	180	180	180	180
Oil flow for attachments		l/min	62	62	62	75	75	73	73
Towing coupling design / DIN type, ref.			PIN	PIN	PIN	PIN	PIN	PIN	PIN
