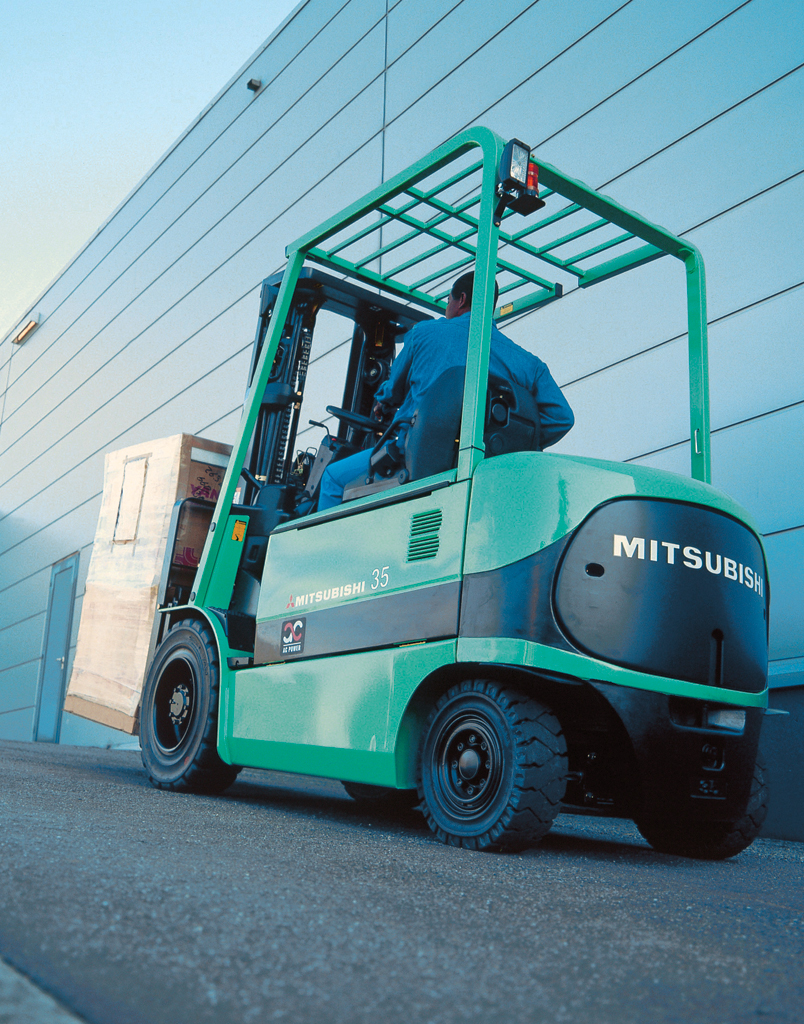

As powerful as a diesel... without the emissions

Electric Counterbalance / 4 Wheel Pneumatic Tyres / 2 - 3.5  tonnes

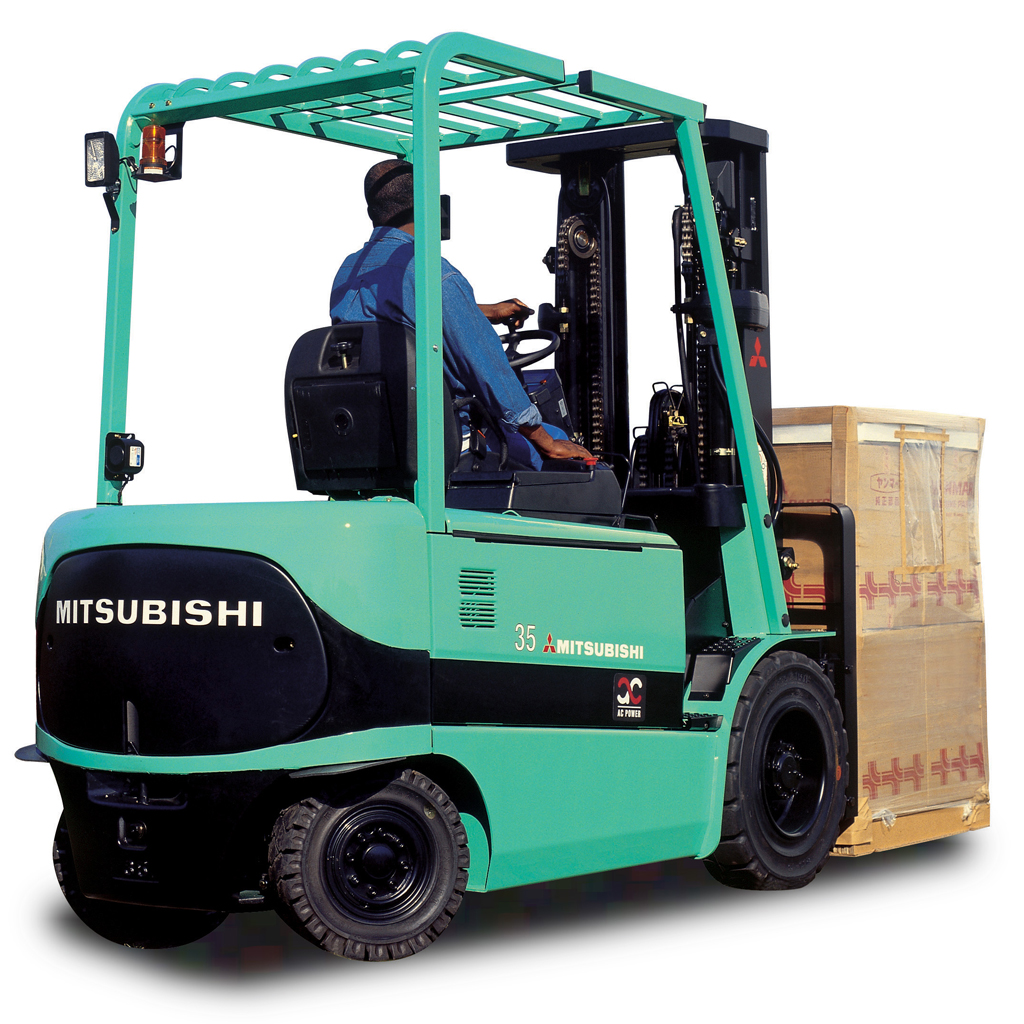

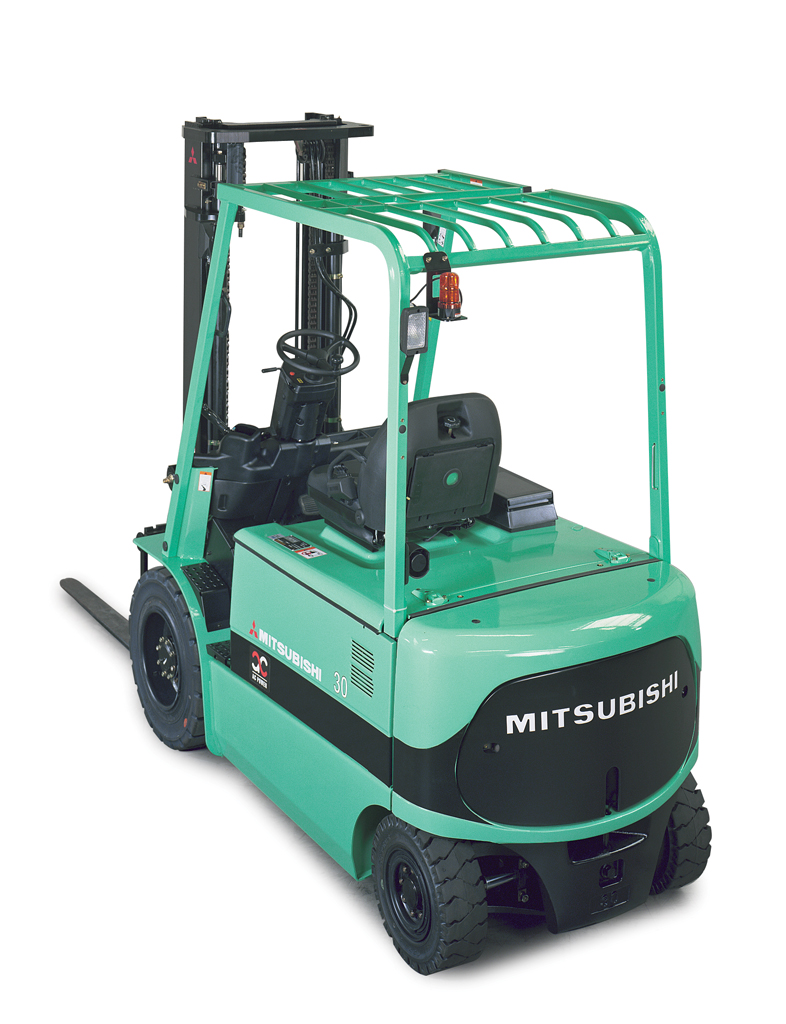

With the application of AC technology, this series gives exceptionally smooth, quiet, controlled, efficient and - above all - powerful performance. Suited to both indoor and outdoor use, it is ideal for heavy-duty situations in which the strength and speed of an IC engine are needed but emissions or noise are not acceptable. Everything about this truck has been designed for long life and low operating costs. What’s more, it is protected against moisture and dust - so even in hostile environments it won’t let you down.

The FBK PAC shares many of the award-winning qualities of its predecessors. These include comfort, visibility, control, energy efficiency, ease of service, rapid trou­ble­shoot­ing... and the ability to be programmed, without any special tools, to the needs of each application and driver.

Model	Load Capacity
FB20K PAC	2000 kg
FB25K PAC	2500 kg
FB30K PAC	3000 kg
FB35K PAC	3500 kg

Key Features

• Exceptional visibility  - through the revolutionary high-strength, clearview mast - maximises driver safety and output.

• Powerful AC drive motor  provides high torque - even at fast speeds - for rapid acceleration, great ramp performance and smooth, quiet, controlled operation.

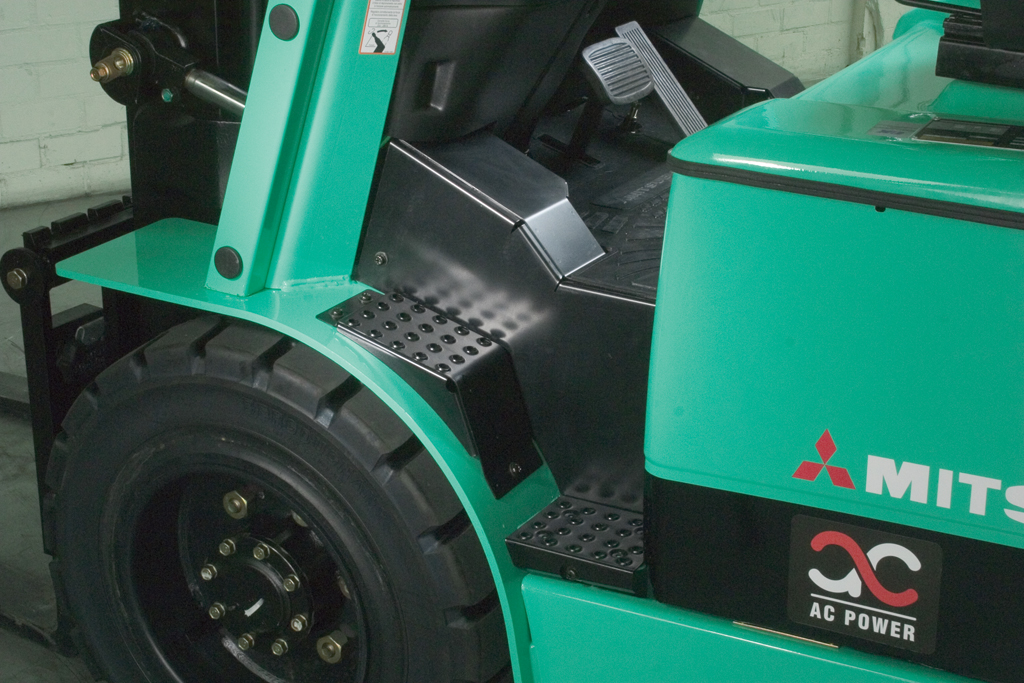

• Sealing of drive motor protects its components from moisture and dust - for reliable use in tough environments.

• Hydrostatic power steering means precise control with minimal effort.

• Highly efficient regenerative braking means effective control and reduced brake wear.

• Powerful AC hydraulic motor provides high torque for rapid but smooth - and controlled - lifting and lowering.

• Advanced MOSFET controller adjusts acceleration, travel speed, lift/lower speed and braking to suit the load, application and driver - for great versatility.

• Performance setting - including pre-set modes - allows instant programming without special tools.

• On-board diagnostics and fault memory folder keep operator and service engineer aware of any problems, speed up servicing and help prevent damage.

• Driver-friendly fingertip controls and ergonomically designed operator compartment reduce driver fatigue and increase precision.

Ergonomic hydraulic levers

User-friendly lever design
Productivity within easy reach

Designers at Mitsubishi understand that high productivity depends on the combination of high-quality engineering and a comfortable, confident operator who is totally in control. Our user-focused truck design puts the needs of the operator at the heart of all product development.

Although Mitsubishi has been a pioneer in the development of fingertip hydraulic control units, we recognise that many users still prefer levers instead. Our hydraulic control lever design, along with other carefully positioned controls, reduces driver fatigue and increases precision.

The latest version offers:

• compact size for easy, short movements

• ergonomic location to the right of operator for easy reach

• easy-grip shape and responsive action giving a strong sense of touch, even if the operator is wearing thick gloves

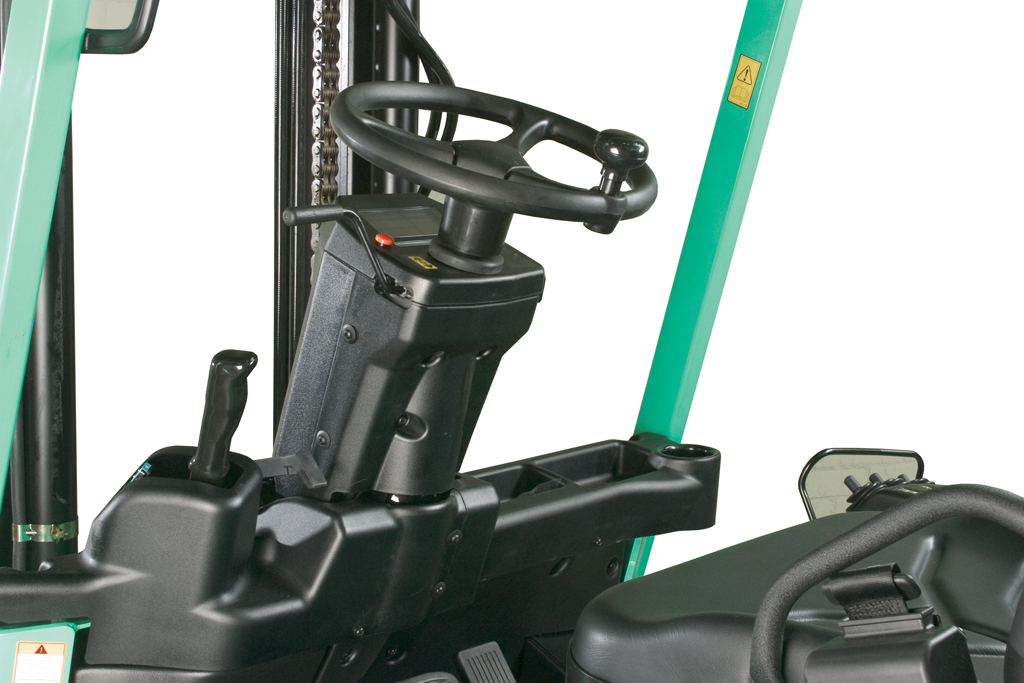

Fingertip hydraulic control

Integrated controls and armrest
The best just gets better

When Mitsubishi developed its first fingertip control units nearly two decades ago, its designers were able to draw on a strong heritage in fly-by-wire technology gained through its aerospace activities.

Today, after many generations of design improvements, the award-winning Mitsubishi fingertip control system is considered by many to be the best in the materials handling industry. Ideal for applications where precise control and the ultimate in driver ergonomics are needed, it can even be operated using heavy, protective gloves.

The latest version offers:

• fully adjustable armrestensuring optimum position and comfort for operator's wrist

• up to five fingertip levers for up to four hydraulic functions

• additional button commands if required for other functions

• programmable sensitivity to meet the needs of different applications and operators

• high-visibility emergency stop button for added safety

Brakes

• Highly efficient regenerative braking means effective control and reduced brake wear.

• Partially sealed drum brakes ensure effectiveness, reliability and long component life.

Drive

• Powerful AC drive motor  provides high torque - even at fast speeds - for rapid acceleration, great ramp performance and smooth, quiet, controlled operation.

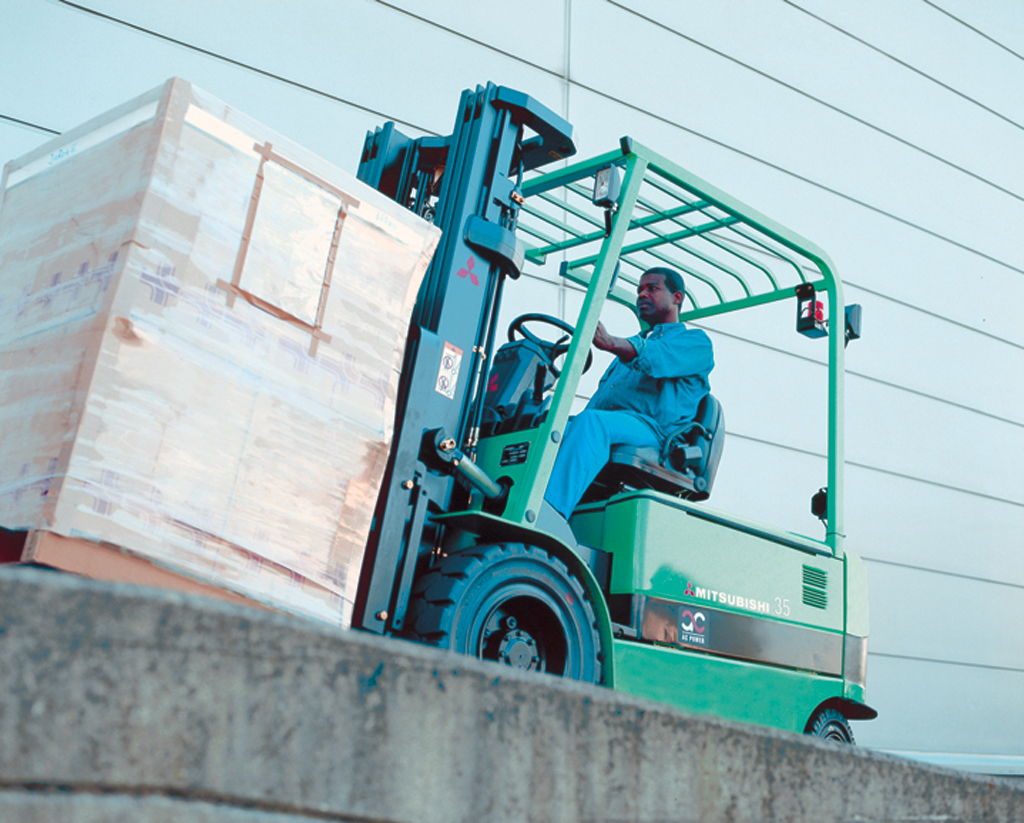

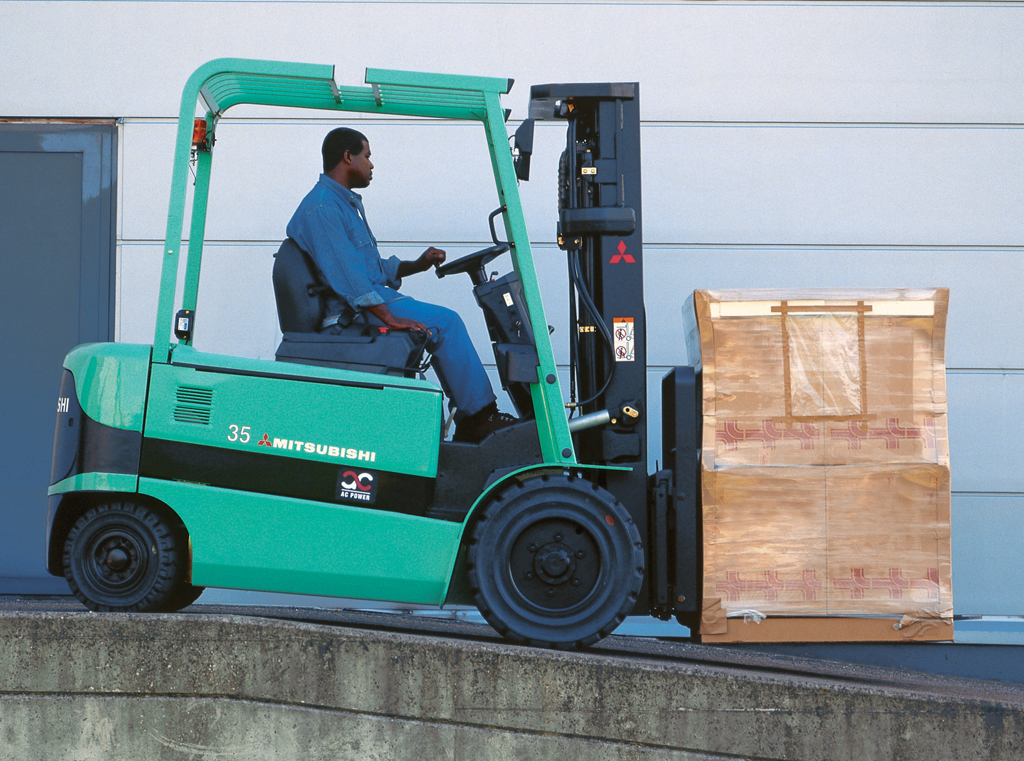

• Controlled rollback - and outstanding ramp performance - allows safe and efficient operation on gradients.

• High energy efficiency of AC motors - together with highly efficient energy recycling through strong regenerative braking - means longer shifts and less recharging.

• Sealing of drive motor protects its components from moisture and dust - for reliable use in tough environments.

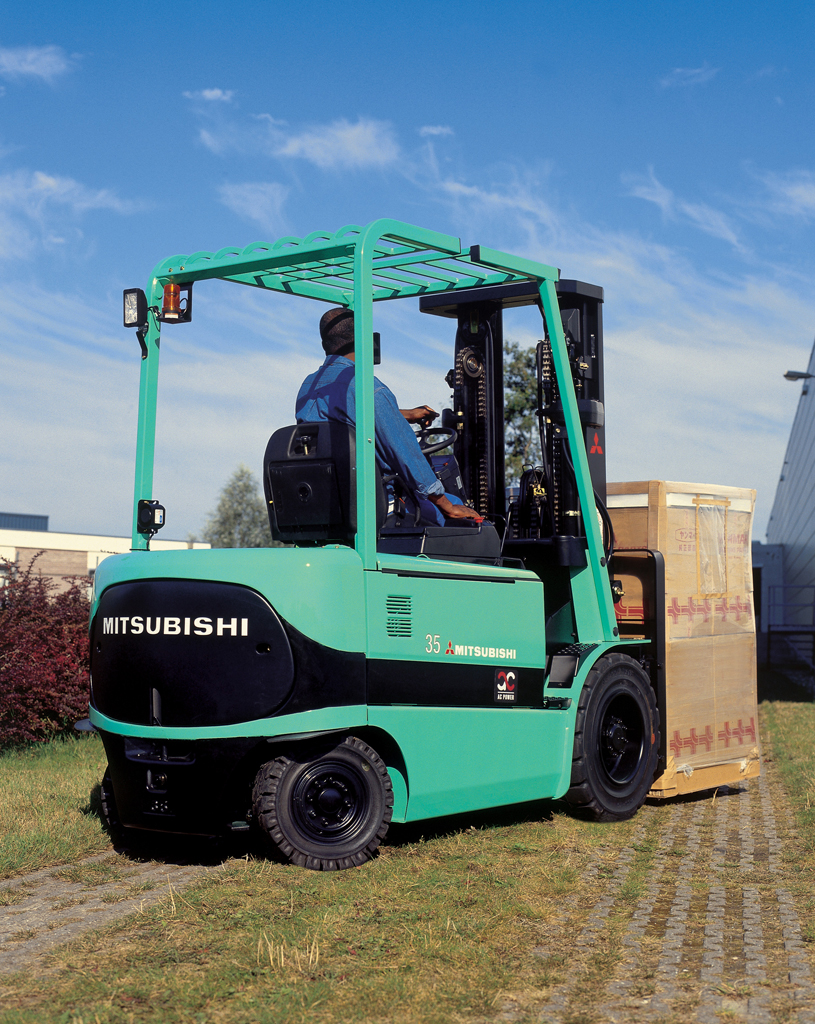

• Pneumatic super-elastic tyres give smooth ride over a variety of surfaces - ideal for indoor-outdoor operation

Electrical and control systems

• Advanced MOSFET controller adjusts acceleration, travel speed, lift/lower speed and braking to suit the load, application and driver - for great versatility.

• Performance setting - including pre-set modes - allows instant programming without special tools.

• Timer programming adjusts seat switch and 'chat' settings to required levels.

• On-board diagnostics and fault memory folder keep operator and service engineer aware of any problems, speed up servicing and help prevent damage.

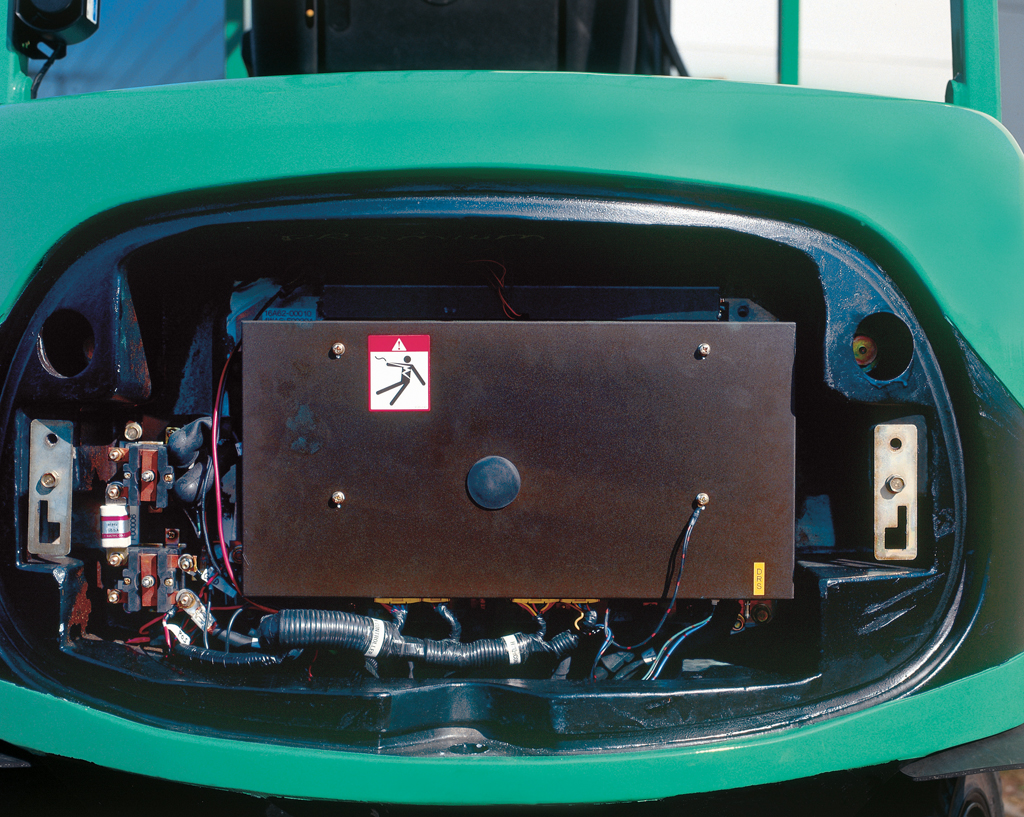

• Modular design of controller allows main components to be individually exchanged.

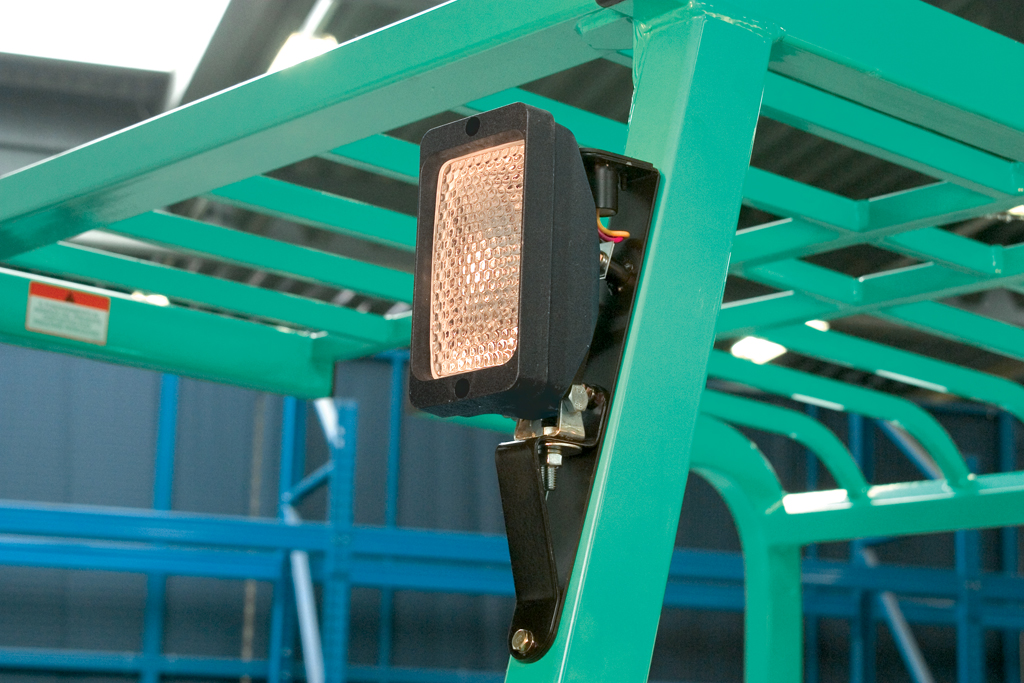

• Comprehensive lighting system includes autolight - with adjustable sensitivity - which automatically activates in dimly lit areas for see-and-be-seen safety.

Frame and body

• Robust frame offers exceptional durability in all working conditions.

• Compact dimensions - together with responsive steering and high stability - allow excellent man­oeuvr­abil­ity and high productivity, however tight the space or uneven the ground.

• Low centre of gravity means stable, safe operation.

Hydraulics

• Powerful AC hydraulic motor provides high torque for rapid but smooth - and controlled - lifting and lowering.

Mast and fork assembly

• Exceptional visibility  - through the revolutionary high-strength, clearview mast - maximises driver safety and output.

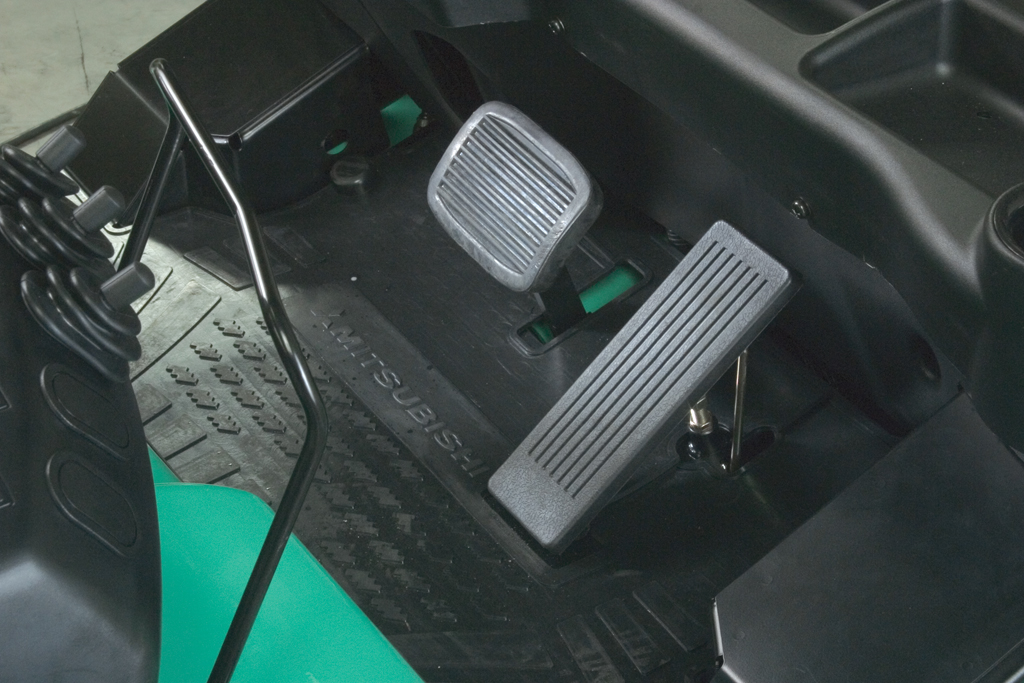

Operator compartment and controls

• Low step - together with non-slip surfaces, grab handle and rounded overhead guard - gives easy on-off access from both sides.

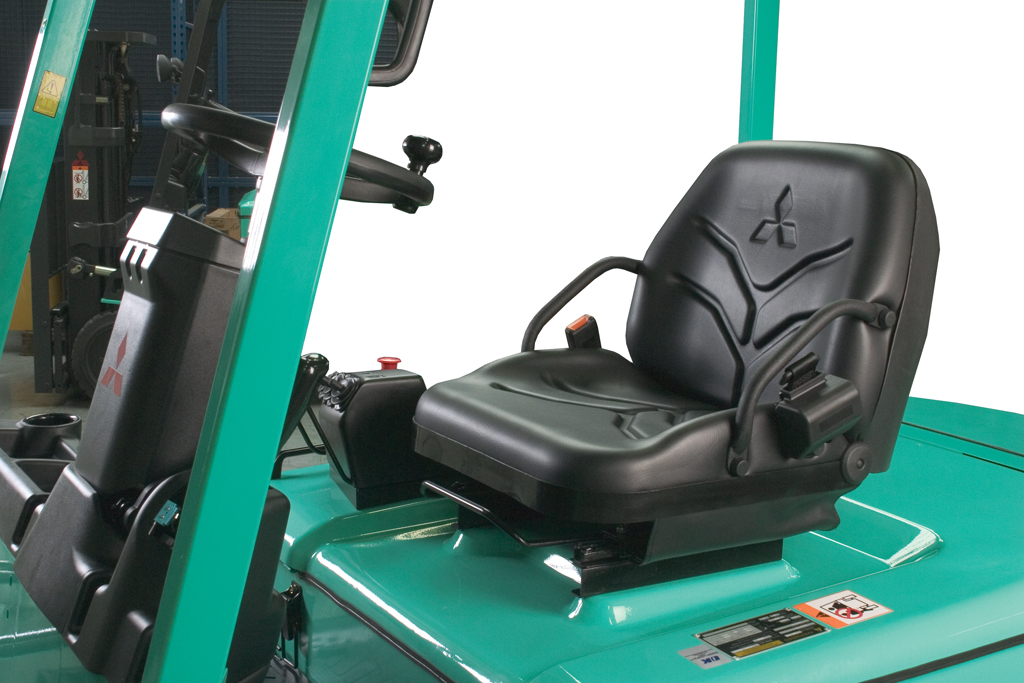

• Full-suspension, fully adjustable seat - with hip restraints and belt - keeps driver safe, comfortable and alert through the longest of shifts.

• Vinyl seat cover offers wipe-clean simplicity.

• Driver-friendly fingertip controls and ergonomically designed operator compartment reduce driver fatigue and increase precision.

• Clear display alerts drivers and service engineers to potential problems - helping to avoid damage and encourage maintenance.

Steering system

• Hydrostatic power steering means precise control with minimal effort.

• Brushless DC steering motor - the most efficient unit for this application - gives a perfect balance between efficiency and economy.

Other features

• Long service interval - 500 hours - reduces downtime and maintenance bills.

• Rapid access features give quick and easy entry to all areas for checks and maintenance.

Options include

• Audible reversing alarm

• Full-suspension cloth seat

• Foot directional control

• DC/DC converter

• Road light kit

Key Specifications

			FB20K PAC	FB25K PAC	FB30K PAC	FB35K PAC
Cha­rac­ter­ist­ics
Manufacturer’s model designation			FB20K PAC	FB25K PAC	FB30K PAC	FB35K PAC
Power source: (battery, diesel, LP gas, petrol)			Battery	Battery	Battery	Battery
Operator type: pedestrian, (operator)-standing, -seated			Driver seated	Driver seated	Driver seated	Driver seated
Load capacity	Q	(kg)	2000	2500	3000	3500
Load centre distance	c	(mm)	500	500	500	500
Load distance, axle to fork face (forks lowered)	x	(mm)	426	426	490	490
Wheelbase	y	(mm)	1520	1520	1690	1690
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	4163	4378	4941	5375
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	5263 / 900	6190 / 688	7360 / 580	8164 / 711
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	2046 / 2117	2164 / 2214	2595 / 2346	2604 / 2771
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			SE / SE	SE / SE	SE / SE	SE / SE
Tyre dimensions, front			23x9-10	23x9-10	28x9-15	250-15
Tyre dimensions, rear			18x7-8	18x7-8	18x7-8	18x7-8
Number of wheels, front/rear (x=driven)			2x / 2	2x / 2	2x / 2	2x / 2
Track width (centre of tyres), front	b10	(mm)	990	990	990	990
Track width (centre of tyres), rear	b11	(mm)	898	898	898	898
Dimensions
Mast tilt, forwards/backwards	a/b	°	6/8	6/8	6/8	6/8
Tow coupling height	h10	(mm)	-	-	-	-
Overall length	l1	(mm)	3319	3344	3592	3647
Height with mast lowered (see tables)	h1	(mm)	2142	2142	2155	2284
Length to fork face (includes fork thickness)	l2	(mm)	2249	2274	2522	2577
Overall width	b1/b2	(mm)	1190	1190	1230	1230
Fork dimensions (thickness, width, length)	s,e,l	(mm)	40x110x1070	40x110x1070	45x125x1070	45x125x1070
Fork carriage to DIN 15 173 A/B/no			2A	2A	3A	3A
Fork carriage width	b3	(mm)	1000	1000	1000	1000
Free lift (see tables)	h2	(mm)	100	100	100	100
Ground clearance under mast, with load	m1	(mm)	110	110	117	117
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	120	120	130	130
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	3576	3596	3870	3920
Working aisle width with 800 x1200 mm pallets, crosswise	Ast	(mm)	3376	3396	3670	3720
Turning circle radius	Wa	(mm)	1950	1970	2180	2230
Minimum distance between centres of rotation	b13	(mm)	-	-	-	-
Lift height (see tables)	h3	(mm)	3300	3300	3270	3300
Overall height with mast raised	h4	(mm)	4355	4355	4325	4340
Height to top of overhead guard	h6	(mm)	2200	2200	2250	2259
Seat height	h7	(mm)	1105	1105	1155	1164
Performance
Travel speed, with/without load		km/h	20.0 / 20.0	20.0 / 20.0	20.0 / 20.0	16.5 / 18.0
Service brakes (mechanical/hydraulic/electric/pneumatic)			Hydraulic	Hydraulic	Hydraulic	Hydraulic
Lifting speed, with/without load		m/s	0.55 / 0.65	0.50 / 0.65	0.45 / 0.60	0.40 / 0.55
Lowering speed, with/without load		m/s	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50	0.50 / 0.50
Rated drawbar pull, with/without load		N	8600 / 8850	8400 / 8900	7500 / 8050	7300 / 8000
Maximum drawbar pull, with/without load (5 min short duty)			12650 / 12750	12200 / 12700	11000 / 11600	10800 / 11500
Gradeability, with/without load		%	18.7 / 29.4	16.5 / 27.9	12.7 / 22.1	11.1 / 20.1
Maximum gradeability, with/without load		s	20.9 / 32.9	18.5 / 31.1	14.2 / 24.6	12.5 / 22.4
Acceleration time (10 metres) with/without load		s	4.1 / 3.6	4.3 / 3.7	5.1 / 4.5	5.2 / 4.6
Electric Motors
Drive motor capacity (60 min. short duty)		kW	14.5	14.5	14.5	14.5
Lift motor output at 15% duty factor		kW	20.0	20.0	20.0	20.0
Battery to DIN 43 531/35/36 A/B/C/no			43.536A	43.536A	43.536A	43.536A
Battery voltage/capacity at 5-hour discharge		V /Ah	80/ 600	80 / 600	80 / 750	80 / 750
Battery weight		kg	1385	1385	1872	1872
Miscellaneous
Type of drive control			MOSFET variable	MOSFET variable	MOSFET variable	MOSFET variable
Maximum operating pressure for attachments		bar	185	185	185	185
