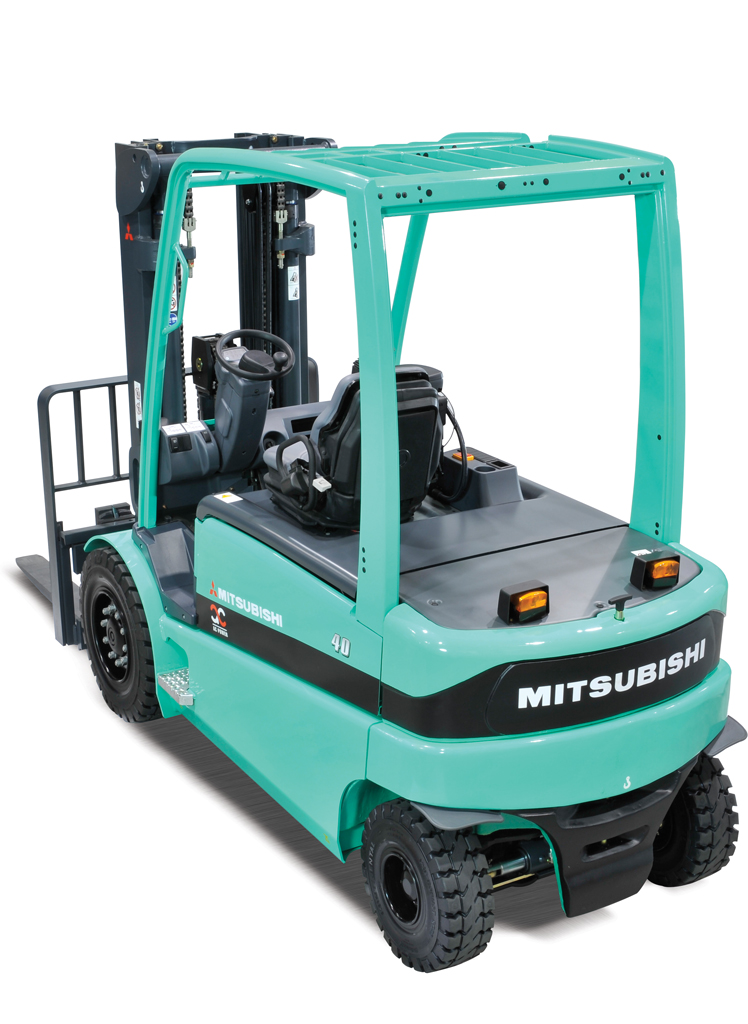

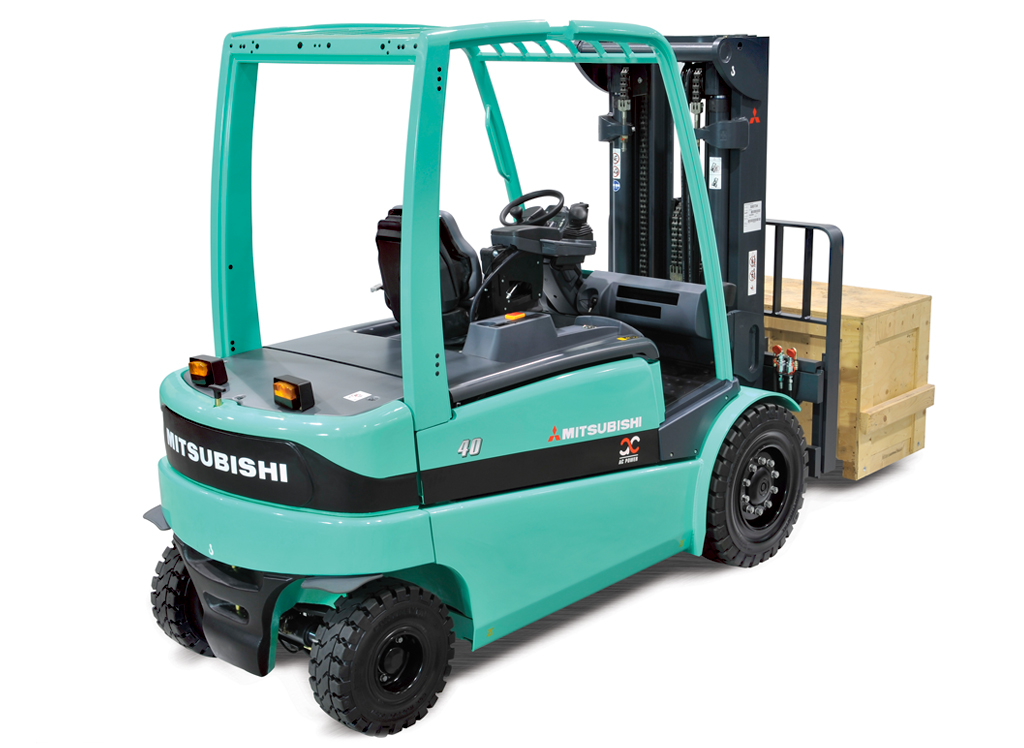

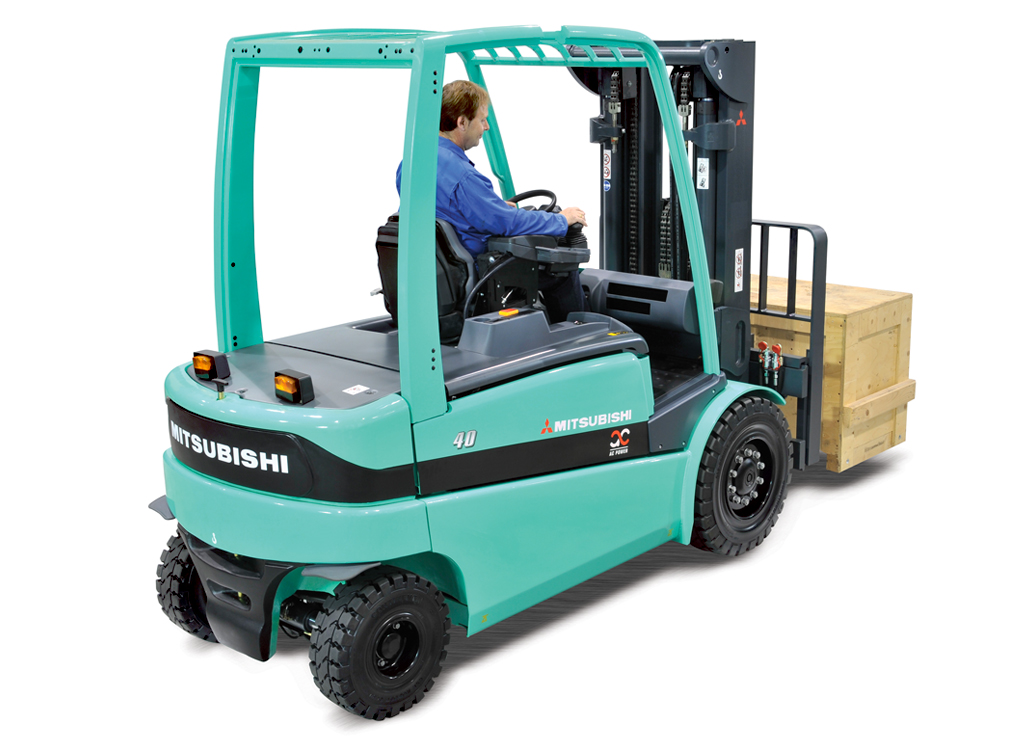

Clean and quiet... with power to spare

Electric Counterbalance / 4 Wheel Pneumatic Tyres / 4 - 5  tonnes

If you need an electric forklift with extra strength to handle your heaviest jobs, this range of high-capacity AC-powered trucks is the answer.

Ideal for both indoor and outdoor use, it combines extraordinary levels of performance with supreme ergonomics, excellent safety and low operating costs.

Model	Load Capacity
FB40	4000 kg
FB45	4500 kg
FB50	4990 kg

Key Features

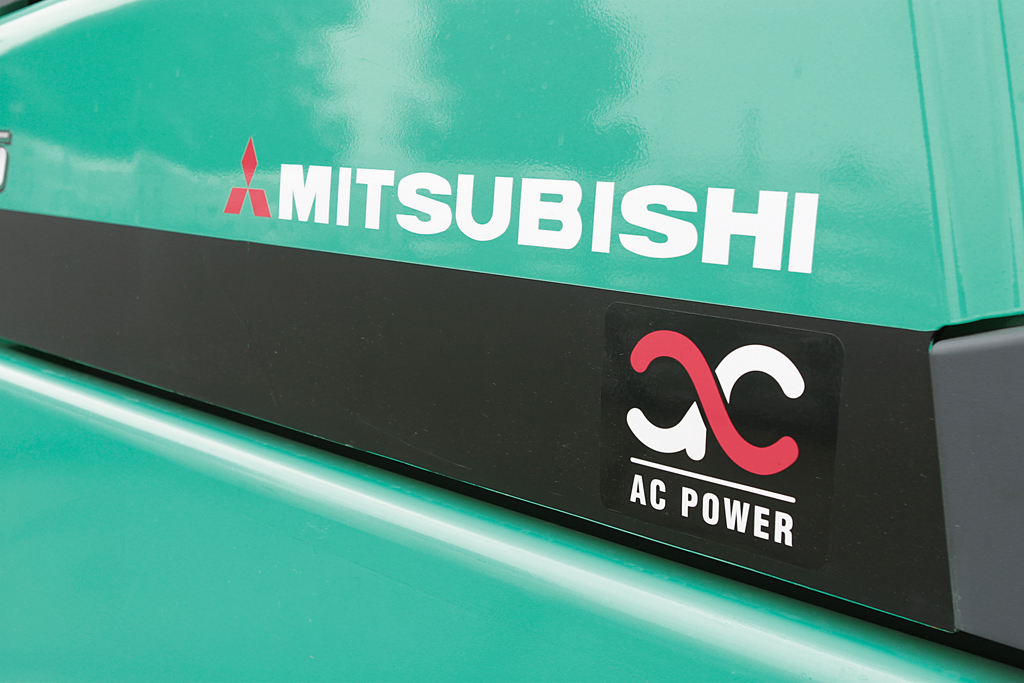

• Powerful AC drive motor  provides high torque - even at fast speeds - for rapid acceleration, great ramp performance and smooth, quiet, controlled operation.

• High energy efficiency of AC motors - together with highly efficient energy recycling through strong regenerative braking - means longer shifts and less recharging.

• Automatic speed reduction reduces risk of overturning loaded truck while cornering.

• Fully hydrostatic steering means precise control with minimal effort.

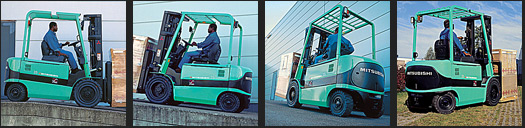

• Excellent man­oeuvr­abil­ity and stability plus minimal emissions make these trucks ideal for both indoor and outdoor operations.

• Automatically applied park brake and anti-rollback system ensures operator safety on ramps.

• Wet disc brakes - and highly efficient regenerative braking - mean effective control and minimal brake wear.

• Powerful AC hydraulic motor provides high torque for rapid but smooth - and controlled - lifting and lowering.

• Advanced MOSFET controller adjusts acceleration, travel speed, lift/lower speed and braking to suit the load, application and driver - for great versatility.

• Long service interval reduces cost of ownership and increases productivity.

Integrated Presence System

IPS/IPS2
Inbuilt safety

Two versions of our pioneering Integrated Presence Systems (IPS and IPS2) feature in the current model range. Both prevent all truck and mast movement if the operator is not seated, as well as giving essential warnings.

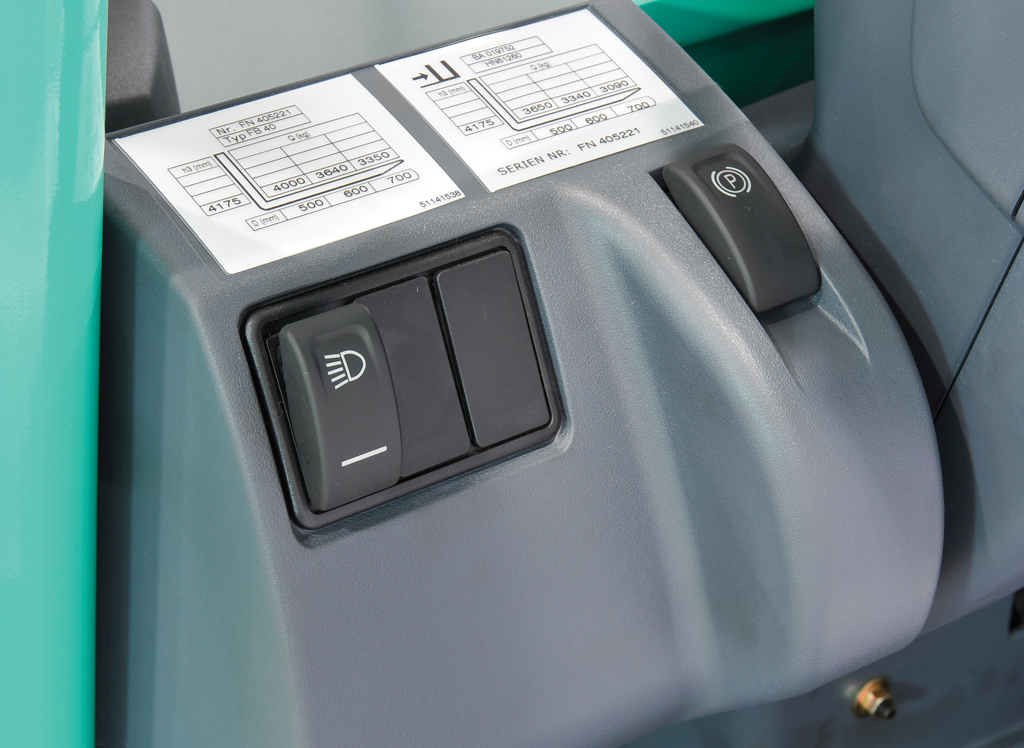

IPS2 adds an electronic parking brake - applied automatically if the seat is empty and manually via a button on the dashboard.

Functions in detail:

• lockouts prevent accidental lifting, lowering, tilting and travel

• automatic warnings remind driver to fasten seatbelt and apply parking brake

• electronic parking brake (IPS2 only) is automatically applied when driver leaves seat

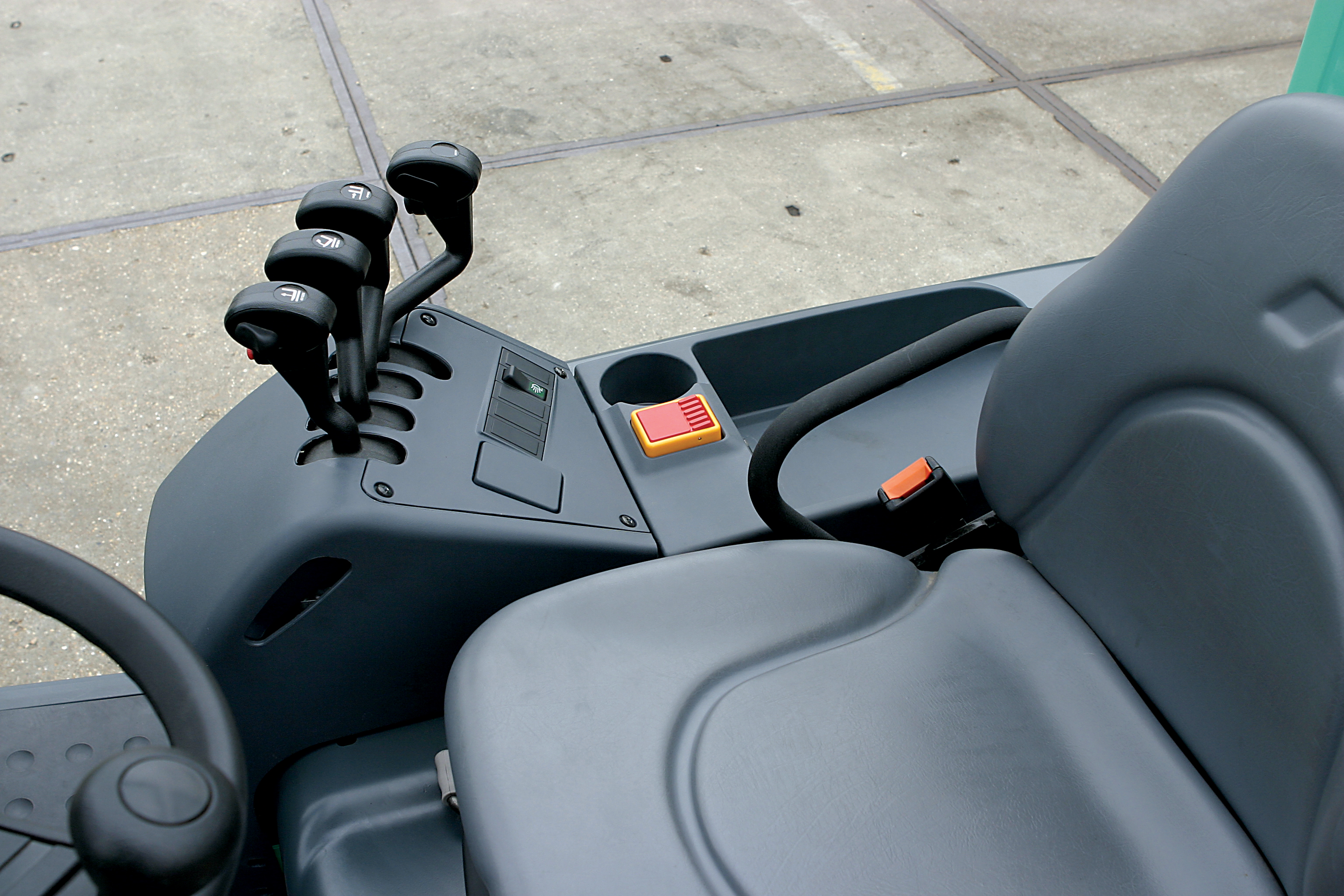

Ergonomic hydraulic levers

User-friendly lever design
Productivity within easy reach

Designers at Mitsubishi understand that high productivity depends on the combination of high-quality engineering and a comfortable, confident operator who is totally in control. Our user-focused truck design puts the needs of the operator at the heart of all product development.

Although Mitsubishi has been a pioneer in the development of fingertip hydraulic control units, we recognise that many users still prefer levers instead. Our hydraulic control lever design, along with other carefully positioned controls, reduces driver fatigue and increases precision.

The latest version offers:

• compact size for easy, short movements

• ergonomic location to the right of operator for easy reach

• easy-grip shape and responsive action giving a strong sense of touch, even if the operator is wearing thick gloves



Fingertip hydraulic control

Integrated controls and armrest
The best just gets better

When Mitsubishi developed its first fingertip control units nearly two decades ago, its designers were able to draw on a strong heritage in fly-by-wire technology gained through its aerospace activities.

Today, after many generations of design improvements, the award-winning Mitsubishi fingertip control system is considered by many to be the best in the materials handling industry. Ideal for applications where precise control and the ultimate in driver ergonomics are needed, it can even be operated using heavy, protective gloves.

The latest version offers:

• fully adjustable armrestensuring optimum position and comfort for operator's wrist

• up to five fingertip levers for up to four hydraulic functions

• additional button commands if required for other functions

• programmable sensitivity to meet the needs of different applications and operators

• high-visibility emergency stop button for added safety

Brakes

• Automatically applied park brake and anti-rollback system ensures operator safety on ramps.

• Wet disc brakes - and highly efficient regenerative braking - mean effective control and minimal brake wear.

Drive

• Powerful AC drive motor  provides high torque - even at fast speeds - for rapid acceleration, great ramp performance and smooth, quiet, controlled operation.

• High energy efficiency of AC motors - together with highly efficient energy recycling through strong regenerative braking - means longer shifts and less recharging.

• Automatic speed reduction reduces risk of overturning loaded truck while cornering.

Electrical and control systems

• Advanced MOSFET controller adjusts acceleration, travel speed, lift/lower speed and braking to suit the load, application and driver - for great versatility.

• On-board diagnostics and fault memory folder keep operator and service engineer aware of any problems, speed up servicing and help prevent damage.

Frame and body

• Robust frame offers exceptional durability in all working conditions.

• Low centre of gravity means stable, safe operation.

• Stylish overhead guard gives better strength and protection, and allows quick, easy, secure fitting of cabin panels.

Hydraulics

• Powerful AC hydraulic motor provides high torque for rapid but smooth - and controlled - lifting and lowering.

Mast and fork assembly

• Exceptional visibility  - through the revolutionary high-strength, clearview mast - maximises driver safety and output.

• Backrest as standard  aids load stability.

Operator compartment and controls

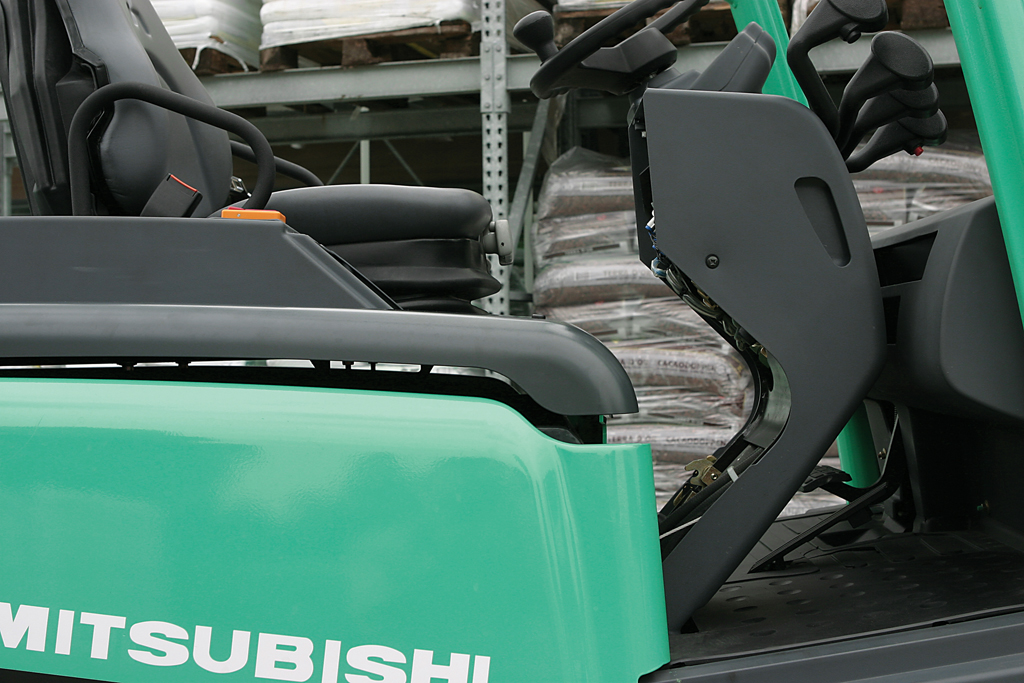

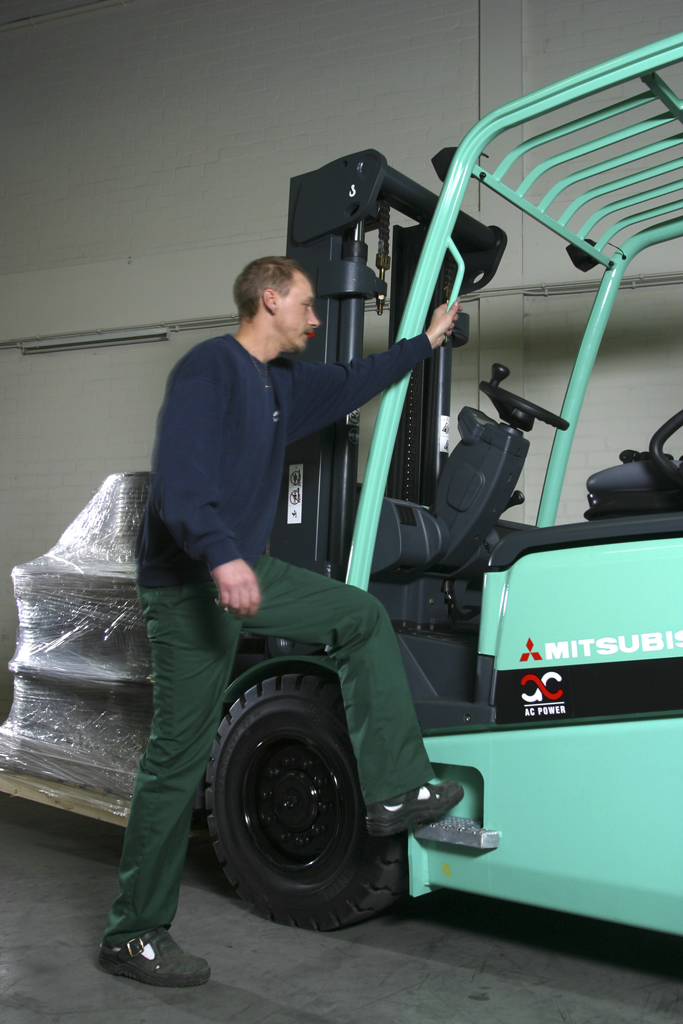

• Low step - together with non-slip surfaces, grab handle and rounded overhead guard - gives easy on-off access from both sides.

• Full-suspension, fully adjustable seat - with hip restraints and belt - keeps driver safe, comfortable and alert through the longest of shifts.

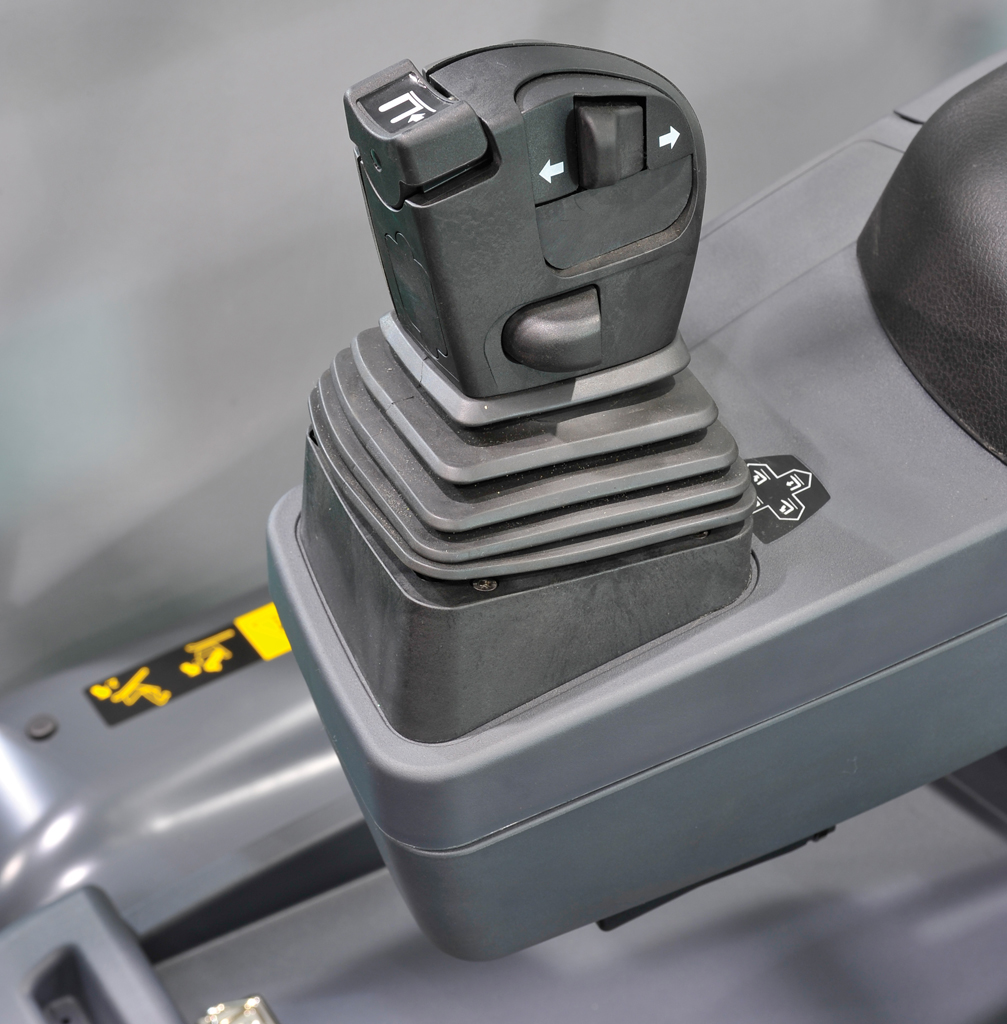

• Ergonomic operator compartment with adjustable steering column and advanced joystick hydraulic control unit, integrated into fully adjustable, comfortable armrest, reduces driver fatigue and increases precision.

• Emergency switch instantly shuts down the truck in emergencies.

• Auto-style pedals are easy to use - and give good control without leg strain.

• Clear display alerts drivers and service engineers to potential problems - helping to avoid damage and encourage maintenance.

Steering system

• Fully hydrostatic steering means precise control with minimal effort.

• Brushless DC steering motor - the most efficient unit for this application - gives a perfect balance between efficiency and economy.

• Excellent man­oeuvr­abil­ity and stability plus minimal emissions make these trucks ideal for both indoor and outdoor operations.

Other features

• Long service interval reduces cost of ownership and increases productivity.

• Maintenance-free wet disc brakes and AC motors reduce service costs.

• Rapid access features give quick and easy entry to all areas for checks and maintenance.

Options include

• Range of factory-fitted panel cabins

• Integral side shifter

• Lighting kit

• DC/DC converter

• Non-marking and cushion tyres

• Fingertip hydraulic control

Key Specifications

			FB40	FB45	FB50
Cha­rac­ter­ist­ics
Manufacturer’s model designation			FB40	FB45	FB50
Power source: (battery, diesel, LP gas, petrol)			Electric	Electric	Electric
Operator type: pedestrian, (operator)-standing, -seated			Seated	Seated	Seated
Load capacity	Q	(kg)	4000	4500	4990
Load centre distance	c	(mm)	500	500	500
Load distance, axle to fork face (forks lowered)	x	(mm)	510	510	510
Wheelbase	y	(mm)	2000	2000	2000
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	6600	6950	7300
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	9700 / 900	10400 / 1050	11200 / 1100
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	3700 / 2900	3700 / 3250	3700 / 3600
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			SE / SE	SE / SE	SE / SE
Tyre dimensions, front			250-15	250-15	28 x 12.5-15
Tyre dimensions, rear			21 x 8-9	21 x 8-9	21 x 8-9
Number of wheels, front/rear (x=driven)			2x /2	2x /2	2x /2
Track width (centre of tyres), front	b10	(mm)	1120	1120	1150
Track width (centre of tyres), rear	b11	(mm)	950	950	950
Dimensions
Mast tilt, forwards/backwards	a/b	°	6 / 8	6 / 8	6 / 8
Tow coupling height	h10	(mm)	390 / 550	390 / 550	390 / 550
Overall length	l1	(mm)	3980	3980	3980
Height with mast lowered (see tables)	h1	(mm)	2405	2405	2405
Length to fork face (includes fork thickness)	l2	(mm)	2830	2830	2830
Overall width	b1/b2	(mm)	1340	1340	1450
Fork dimensions (thickness, width, length)	s,e,l	(mm)	50x125x1150	50x125x1150	50x125x1150
Fork carriage to DIN 15 173 A/B/no			3A	3A	3A
Fork carriage width	b3	(mm)	1260	1260	1260
Free lift (see tables)	h2	(mm)	150	150	150
Ground clearance under mast, with load	m1	(mm)	120	120	120
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	160	160	160
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	4160	4160	4160
Turning circle radius	Wa	(mm)	2450	2450	2450
Minimum distance between centres of rotation	b13	(mm)	670	670	670
Lift height (see tables)	h3	(mm)	3000	3000	3000
Overall height with mast raised	h4	(mm)	4398	4398	4248
Height to top of overhead guard	h6	(mm)	2320	2320	2320
Seat height	h7	(mm)	1165	1165	1165
Performance
Travel speed, with/without load		km/h	15 / 17	15 / 16.5	15 / 16
Service brakes (mechanical/hydraulic/electric/pneumatic)			Hydraulic	Hydraulic	Hydraulic
Lifting speed, with/without load		m/s	0.35 / 0.47	0.33 / 0.45	0.31 / 0.45
Lowering speed, with/without load		m/s	0.55 / 0.50	0.55 / 0.50	0.55 / 0.50
Rated drawbar pull, with/without load		N	5100 / 5600	4900 / 5500	5000 / 5800
Maximum drawbar pull, with/without load (5 min short duty)			14600 / 14900	14500 / 14800	15100 / 15500
Gradeability, with/without load		%	8 / 13.5	7 / 12	6.5 / 12
Maximum gradeability, with/without load		s	14 / 23.5	12.5 / 21.5	12 / 21
Acceleration time (10 metres) with/without load		s	5.0 / 4.4	5.5 / 4.8	5.8 / 5.2
Electric Motors
Drive motor capacity (60 min. short duty)		kW	18	18	18
Lift motor output at 15% duty factor		kW	23.5	23.5	23.5
Battery to DIN 43 531/35/36 A/B/C/no			43536 A	43536 A	43536 A

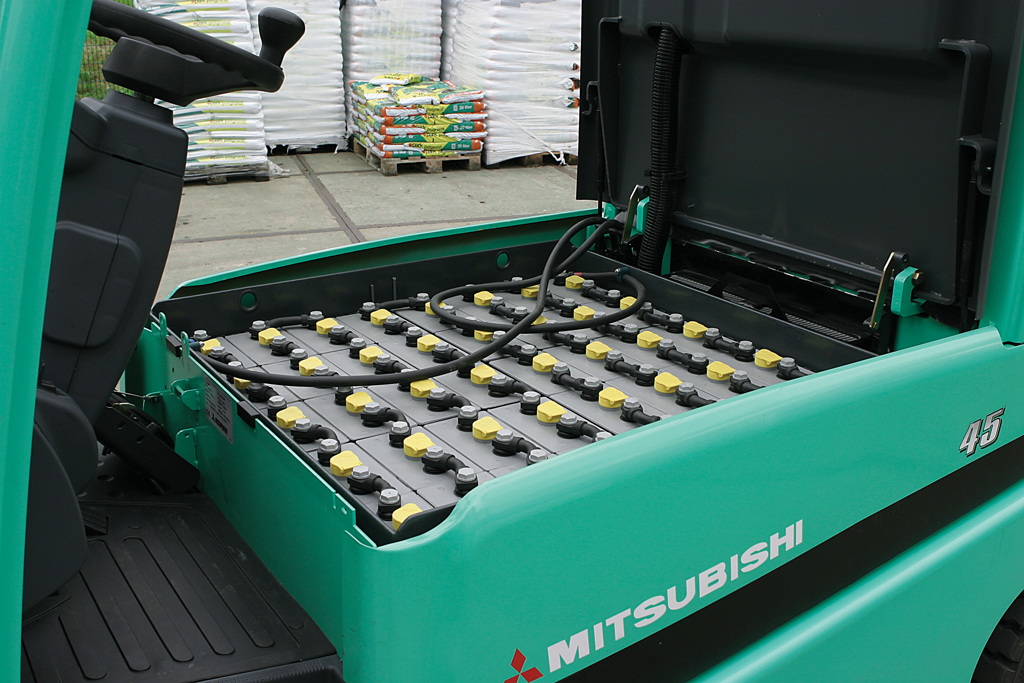

Battery voltage/capacity at 5-hour discharge		V /Ah	80 / 840	80 / 840	80 / 840
Battery weight		kg	2178	2178	2178
Energy consumption according to VDI 60 cycle		kWh/h	10.5	11	11.5
Miscellaneous
Type of drive control			Impulse AC	Impulse AC	Impulse AC
Maximum operating pressure for attachments		bar	200	200	200
Oil flow for attachments		l/min	30	30	30
Noise level, value at operator’s ear (EN 12053)		dB(A)	75	75	75
Towing coupling design / DIN type, ref.			DIN 15170-H	DIN 15170-H	DIN 15170-H
