Outstanding performance... exceptional value for money

LP Gas Counterbalance / 4 Wheel Pneumatic Tyres / 1.5 - 3.5  tonnes

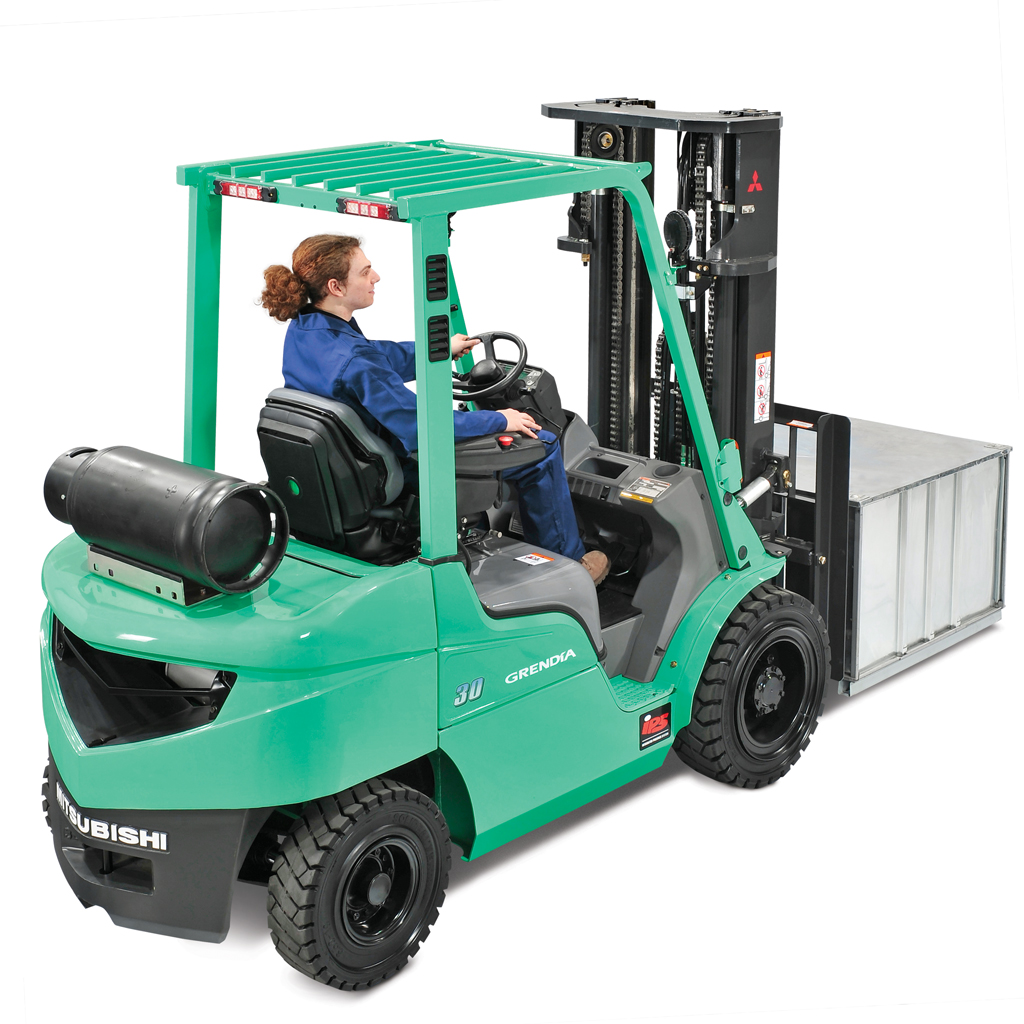

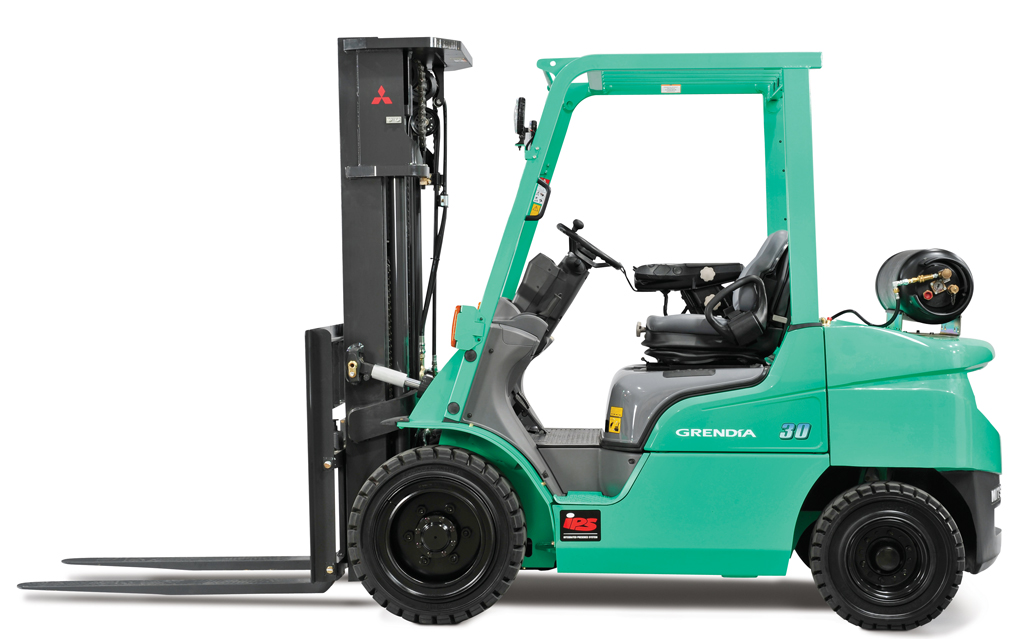

Developed to help your operator achieve maximum productivity, GRENDIA sets the highest of standards for IC engine counterbalance forklift trucks. No other forklift truck includes so many advanced features in its standard specification. That's why GRENDIA is such unbeatable value for money. What's more, its durable components, low-maintenance design and fuel economy will continue to keep down the cost of forklift ownership, year after year.

The name GRENDIA means 'Green Diamond': green for environmental protection; diamond for high quality, reliability and sound investments. Fast, stable and exceptionally powerful, GRENDIA forklift trucks offer a potent combination of high efficiency, low emissions and very low noise levels. To that, Mitsubishi has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions.

Model	Load Capacity
FG15N	2000 kg
FG18N	1750 kg
FG20CN	2000 kg
FG20N	2000 kg
FG25N	2500 kg
FG30N	3000 kg
FG35N	3500 kg

Key Features

• Automatic return to neutral prevents accidental starting in gear.

• Display warning lights alert driver to potentially hazardous faults.

• Electronic controller disables systems if major fault is detected.

• Double action parking brake cannot be released accidentally.

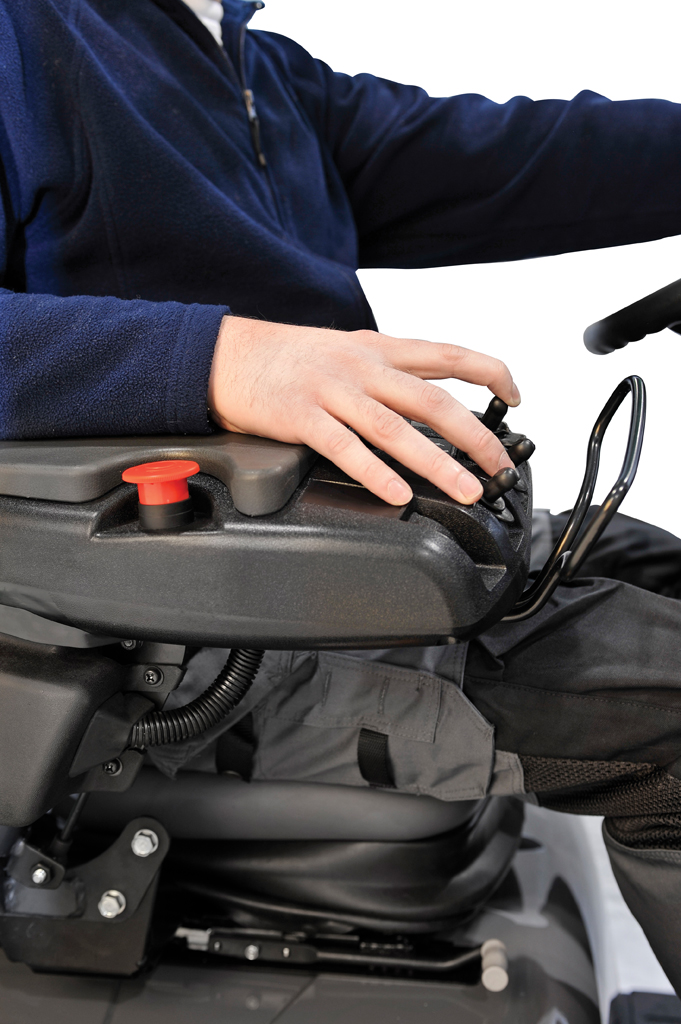

• Contoured seat with hip restraints and safety belt.

Brakes

• Autolight (for dimly lit areas), reversing light, high-visibility rear cluster and effective road kit with high-position forward floodlights for see-and-be-seen safety.

Drive

• Electronic controller disables systems if major fault is detected.

• Display warning lights alert driver to potentially hazardous faults.

• Automatic return to neutral prevents accidental starting in gear.

Frame and body

• Contoured seat with hip restraints and safety belt.

Hydraulics

• Alarm sounds while reversing to warn pedestrians.

Mast and fork assembly

• Double action parking brake cannot be released accidentally.

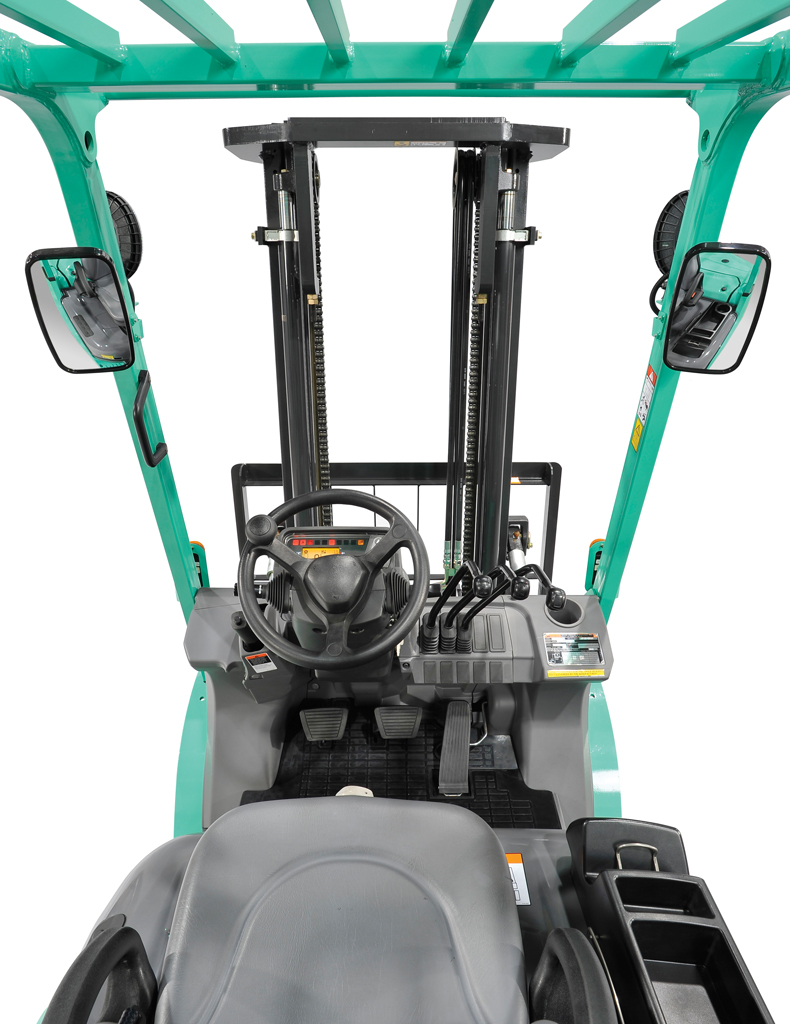

Operator compartment and controls

• Alarm sounds if driver leaves seat without applying parking brake.

• Warning light reminds driver to fasten belt.

• Bottom-exit exhaust tailpipe keeps noise and fumes away from driver and bystanders.

• Clean-burn engines comply with or surpass rigorous emission standards.

Steering system

• Diagnostic display and rapid access encourage maintenance.

Other features

• Asbestos-free brake linings avoid harmful dust.

• Latest noise suppression technology benefits everyone in the area.

Options include

• Seat switch prevents all fork movement and truck travel unless the driver is securely seated.

• High-friction step and carpet, solid grip handle and uncluttered compartment prevent slips - the source of many minor injuries.

• Excellent all-round visibility helps avoid collisions and accidental damage.

• Innovative fender and dashboard design discourages riders.

• Tilt cylinder covers prevent trapping of operator between cylinder and chassis - a common cause of injury on some forklift trucks.

• Strong truck frame and mast structure means optimum protection - while maintaining high visibility.

• Large diameter brake assembly increases area of contact between lining and drum for greater effectiveness.

• Exterior styling has been developed specifically for primary safety.

• Large back tilt angle reduces risk of shedding load from forks.

• Mast cushioning device ensures safe, controlled lowering of loads.

Key Specifications

Cha­rac­ter­ist­ics
Manufacturer’s model designation			FG15N	FG18N	FG20CN	FG20N	FG25N	FG30N	FG35N
Power source: (battery, diesel, LP gas, petrol)			LPG	LPG	LPG	LPG	LPG	LPG	LPG
Operator type: pedestrian, (operator)-standing, -seated			Seated	Seated	Seated	Seated	Seated	Seated	Seated
Load capacity	Q	(kg)	2000	1750	2000	2000	2500	3000	3500
Load centre distance	c	(mm)	500	500	500	500	500	500	500
Load distance, axle to fork face (forks lowered)	x	(mm)	400	400	415	455	455	490	490
Wheelbase	y	(mm)	1400	1400	1400	1600	1600	1700	1700
Weight
Truck weight, without load / including battery (simplex mast, lowest lift height)		kg	2520	2710	3050	3310	3610	4250	4660
Axle loading with maximum load, front/rear (simplex mast, lowest lift height)		kg	3580/480	3940/520	4420/630	4650/660	5440/670	6490/760	7220/ 940
Axle loading without load, front/rear (simplex mast, lowest lift height)		kg	1110/1450	1060/1650	1110/1940	1460/1850	1440/2170	1730/2520	1680/2980
Wheels, Drive Train
Tyres: V=solid, L=pneumatic, SE=solid pneumatic - front/rear			SE/SE	SE/SE	SE/SE	SE/SE	SE/SE	SE/SE	SE/SE
Tyre dimensions, front			6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	250-15-16PR
Tyre dimensions, rear			5.00-8-8PR	5.00-8-8PR	5.00-8-8PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-12PR
Number of wheels, front/rear (x=driven)			2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
Track width (centre of tyres), front	b10	(mm)	890	890	890	960	960	1060	1060
Track width (centre of tyres), rear	b11	(mm)	900	900	900	980	980	980	980
Dimensions
Mast tilt, forwards/backwards	a/b	°	6/10	6/10	6/10	6/10	6/10	6/10	6/10
Tow coupling height	h10	(mm)	n/a	n/a	n/a	n/a	n/a	n/a	n/a
Overall length	l1	(mm)	3330	3371	3429	3558	3625	3795	3860
Height with mast lowered (see tables)	h1	(mm)	1995	1995	1995	1995	1995	2045	2180
Length to fork face (includes fork thickness)	l2	(mm)	2260	2301	2359	2488	2555	2725	2790
Overall width	b1/b2	(mm)	1065	1065	1065	1150	1150	1275	1290
Fork dimensions (thickness, width, length)	s,e,l	(mm)	35 x 100 x 1070	35x100x1070	35 x 100 x 1070	40x110x1070	40x110x1070	45x125x1070	45x125x1070
Fork carriage to DIN 15 173 A/B/no			2A	2A	2A	2A	2A	3A	3A
Fork carriage width	b3	(mm)	920	920	920	1000	1000	1000	1000
Free lift (see tables)	h2	(mm)	80	80	80	100	100	100	100
Ground clearance under mast, with load	m1	(mm)	110	110	110	115	115	135	135
Ground clearance at centre of wheelbase, with load (forks lowered)	m2	(mm)	135	135	135	135	135	165	170
Working aisle width with 1000 x1200 mm pallets, crosswise	Ast	(mm)	3550	3580	3637	3855	3885	4070	4130
Working aisle width with 800 x1200 mm pallets, crosswise	Ast	(mm)	3350	3380	3437	3655	3685	3870	3930
Turning circle radius	Wa	(mm)	1950	1980	2022	2200	2230	2380	2440
Minimum distance between centres of rotation	b13	(mm)	n/a	n/a	n/a	n/a	n/a	n/a	n/a
Lift height (see tables)	h3	(mm)	3000	3000	3000	3000	3000	3030	3000
Overall height with mast raised	h4	(mm)	4045	4045	4045	4045	4045	4085	4055
Height to top of overhead guard	h6	(mm)	2145	2145	2145	2154	2154	2173	2183
Seat height	h7	(mm)	1109	1109	1109	1114	1114	1114	1114
Performance
Travel speed, with/without load		km/h	19 / 19.5	19/19.5	19/19.5	19/19.5	19/19.5	19/19.5	19/19.5
Service brakes (mechanical/hydraulic/electric/pneumatic)			Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Lifting speed, with/without load		m/s	0.64 / 0.65	0.58 / 0.64	0.64 / 0.65	0.59 / 0.61	0.59 / 0.61	0.52 / 0.53	0.40 / 0.44
Lowering speed, with/without load		m/s	0.52/0.50	0.52/0.50	0.52 / 0.50	0.50/0.50	0.50/0.50	0.53 / 0.50	0.42 / 0.40
Rated drawbar pull, with/without load		N	16700 / 16300	16700 / 16200	16600 / 16400	16400 / 16100	16400 / 15900	20900 / 20600	19100 / 19100
Gradeability, with/without load		%	47 / -	41 / -	36 / -	33 / -	28 / -	31 / -	25 / -
IC Engine
Manufacturer / Type			K21	K21	K21	K21	K21	K21	K25LE
Rated output to ISO 1585		kW	41	41	41	41	41	47	47
Rated speed to DIN 70 020		rpm	2500	2700	2700	2700	2700	2700	2700
Number of cylinders / cubic capacity		/cm3	4/2065	4/2065	4/2065	4/2065	4/2065	4/2488	4/2488
Miscellaneous
Type of drive control			Powershift/1	Powershift/1	Powershift/1	Powershift/1	Powershift/1	Powershift/1	Powershift/1
Maximum operating pressure for attachments		bar	180	180	180	180	180	180	180
Oil flow for attachments		l/min	60	60	60	73	68	73	73
Towing coupling design / DIN type, ref.			PIN	PIN	PIN	PIN	PIN	PIN	PIN
